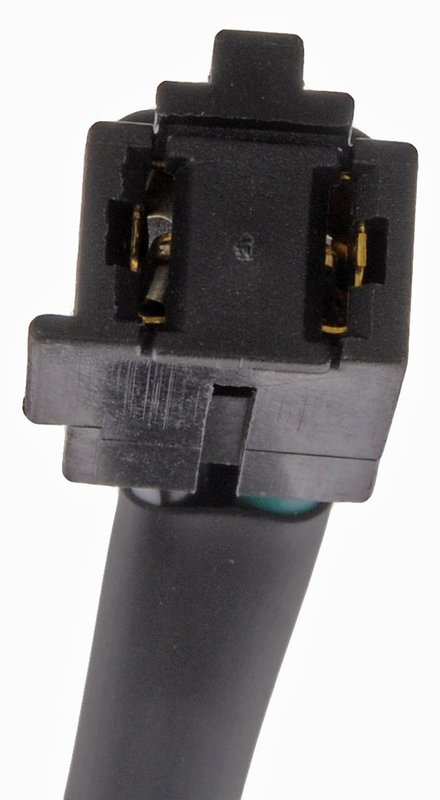

Dorman 645-561 HVAC Blower Motor Resistor Connector - Front or Rear
OE Quality 60-Day Returns
Dorman

Dorman 645-561 HVAC Blower Motor Resistor Connector - Front or Rear

Brand Dorman 645-561
Overall Length (In) 19 in
Package Contents 2 Pigtails; 1 Bracket; 2 Screws
Terminal Gender Female
Terminal Material Tin Brass (Tin Plate)
Terminal Type Blade
Wire Gauge Measurement 12
Wire Gauge Measurement 14
Wire Gauge Measurement 16
Wire Quantity 5
Fits Dodge, Jeep, and Chrysler · 83 vehicles

OE direct replacement. Replaces a damaged original connector for a proper repair.

Corrosion-resistant terminals. Help maintain reliable electrical performance over time.

Blade terminals. Female terminals with tin-brass construction for secure connections.

Cross-references Mopar 68052436AA, 1P1821 and 1189 for the same application. See all 3.

$47.47Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $47.47
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all HVAC Blower Motor Resistor Connector options

HVAC Blower Motor Resistor Connector

Dorman 645-561 is an HVAC blower motor resistor connector built to replace an original connector damaged by heat or corrosion. It uses corrosion-resistant tin brass terminals for steady electrical contact in climate control systems across select Dodge, Chrysler, and Jeep applications.

  • Direct replacement HVAC blower motor resistor connector for climate control repairs
  • Fits 12, 14, and 16 gauge wiring with 5 female blade terminals
  • Tin brass, tin-plated terminal material for improved corrosion resistance
  • Includes pigtails, bracket, and screws as listed in the product data
  • Overall length: 19 in

Application Coverage

Compatible with climate control systems in vehicles such as the Dodge Nitro, Jeep Liberty, Chrysler Aspen, Chrysler Town & Country, Dodge Durango, and Dodge Grand Caravan. This Dorman 645-561 connector also cross-references Mopar 68052436AA for the same application.

  • Fits 2007-2010 Dodge Nitro, Climate Control
  • Fits 2008-2010 Jeep Liberty, Climate Control
  • Fits 2007-2009 Chrysler Aspen, Climate Control
  • Fits 2003-2009 Chrysler Town & Country, Rear, Climate Control
  • Fits 2007-2009 Dodge Durango, Front, Climate Control
  • Fits 2003-2009 Dodge Grand Caravan, Rear, Climate Control
  • Fits 2004-2008 Chrysler Pacifica, Climate Control
  • Fits 2003-2008 Chrysler Voyager, Rear, Climate Control
  • Fits 2008 Jeep Commander, Automatic Climate Control, to 5/19/08
  • Fits 2008 Jeep Grand Cherokee, Automatic Climate Control, to 5/19/08
  • Fits 2001-2007 Chrysler Town & Country, Front, Climate Control
  • Fits 2001-2007 Chrysler Voyager, Front, Climate Control
  • Fits 2001-2007 Dodge Caravan, Front, Climate Control
  • Fits 2003-2007 Dodge Caravan, Rear, Climate Control
  • Fits 2001-2007 Dodge Grand Caravan, Front, Climate Control
  • Fits 2006-2007 Jeep Commander, Automatic Climate Control
  • Fits 2002-2007 Jeep Grand Cherokee, Automatic Climate Control
  • Fits 2001-2002 Chrysler Grand Voyager, Front, Climate Control

What It Helps Fix

  • Blower motor resistor connector damage from overheating
  • Electrical connection issues caused by corrosion
  • Intermittent HVAC blower operation
  • Loss of fan speed control in climate control systems
  • Heat-related connector failure at the resistor plug

Installation Notes

Inspect the resistor and surrounding harness before installation, since heat damage often affects more than the connector alone. Match the wire gauge and terminal layout to the original connector, and verify vehicle-specific fitment by year, make, model, position, and climate control type before service.

Quality Assurance

Dorman designs this replacement connector as an OE-style repair part for restoring a damaged blower motor resistor connection. The corrosion-resistant terminal construction supports reliable electrical contact in HVAC service conditions.

This part fits 83 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2010DodgeNitroN/AClimate Control
2010JeepLibertyN/AClimate Control
2009ChryslerAspenN/AClimate Control
2009ChryslerTown & CountryRearClimate Control
2009DodgeDurangoFrontClimate Control
2009DodgeGrand CaravanRearClimate Control
2009DodgeNitroN/AClimate Control
2009JeepLibertyN/AClimate Control
2008ChryslerAspenN/AClimate Control
2008ChryslerPacificaN/AClimate Control
2008ChryslerTown & CountryRearClimate Control
2008ChryslerVoyagerRearClimate Control
2008DodgeDurangoFrontClimate Control
2008DodgeGrand CaravanRearClimate Control
2008DodgeNitroN/AClimate Control
2008JeepCommanderN/ATo 5/19/08; Automatic Climate Control
2008JeepGrand CherokeeN/ATo 5/19/08; Automatic Climate Control
2008JeepLibertyN/AClimate Control
2007ChryslerAspenN/AClimate Control
2007ChryslerPacificaN/AClimate Control
2007ChryslerTown & CountryFrontClimate Control
2007ChryslerTown & CountryRearClimate Control
2007ChryslerVoyagerFrontClimate Control
2007ChryslerVoyagerRearClimate Control
2007DodgeCaravanFrontClimate Control
2007DodgeCaravanRearClimate Control
2007DodgeDurangoFrontClimate Control
2007DodgeGrand CaravanFrontClimate Control
2007DodgeGrand CaravanRearClimate Control
2007DodgeNitroN/AClimate Control
2007JeepCommanderN/AAutomatic Climate Control
2007JeepGrand CherokeeN/AAutomatic Climate Control
2006ChryslerPacificaN/AClimate Control
2006ChryslerTown & CountryFrontClimate Control
2006ChryslerTown & CountryRearClimate Control
2006ChryslerVoyagerFrontClimate Control
2006ChryslerVoyagerRearClimate Control
2006DodgeCaravanFrontClimate Control
2006DodgeCaravanRearClimate Control
2006DodgeGrand CaravanFrontClimate Control
2006DodgeGrand CaravanRearClimate Control
2006JeepCommanderN/AAutomatic Climate Control
2006JeepGrand CherokeeN/AAutomatic Climate Control
2005ChryslerPacificaN/AClimate Control
2005ChryslerTown & CountryFrontClimate Control
2005ChryslerTown & CountryRearClimate Control
2005ChryslerVoyagerFrontClimate Control
2005ChryslerVoyagerRearClimate Control
2005DodgeCaravanFrontClimate Control
2005DodgeCaravanRearClimate Control
2005DodgeGrand CaravanFrontClimate Control
2005DodgeGrand CaravanRearClimate Control
2005JeepGrand CherokeeN/AAutomatic Climate Control
2004ChryslerPacificaN/AClimate Control
2004ChryslerTown & CountryFrontClimate Control
2004ChryslerTown & CountryRearClimate Control
2004ChryslerVoyagerFrontClimate Control
2004ChryslerVoyagerRearClimate Control
2004DodgeCaravanFrontClimate Control
2004DodgeCaravanRearClimate Control
2004DodgeGrand CaravanFrontClimate Control
2004DodgeGrand CaravanRearClimate Control
2004JeepGrand CherokeeN/AAutomatic Climate Control
2003ChryslerTown & CountryFrontClimate Control
2003ChryslerTown & CountryRearClimate Control
2003ChryslerVoyagerFrontClimate Control
2003ChryslerVoyagerRearClimate Control
2003DodgeCaravanFrontClimate Control
2003DodgeCaravanRearClimate Control
2003DodgeGrand CaravanFrontClimate Control
2003DodgeGrand CaravanRearClimate Control
2003JeepGrand CherokeeN/AAutomatic Climate Control
2002ChryslerGrand VoyagerFrontClimate Control
2002ChryslerTown & CountryFrontClimate Control
2002ChryslerVoyagerFrontClimate Control
2002DodgeCaravanFrontClimate Control
2002DodgeGrand CaravanFrontClimate Control
2002JeepGrand CherokeeN/AAutomatic Climate Control
2001ChryslerGrand VoyagerFrontClimate Control
2001ChryslerTown & CountryFrontClimate Control
2001ChryslerVoyagerFrontClimate Control
2001DodgeCaravanFrontClimate Control
2001DodgeGrand CaravanFrontClimate Control
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Mopar — 68052436AA1P18211189
