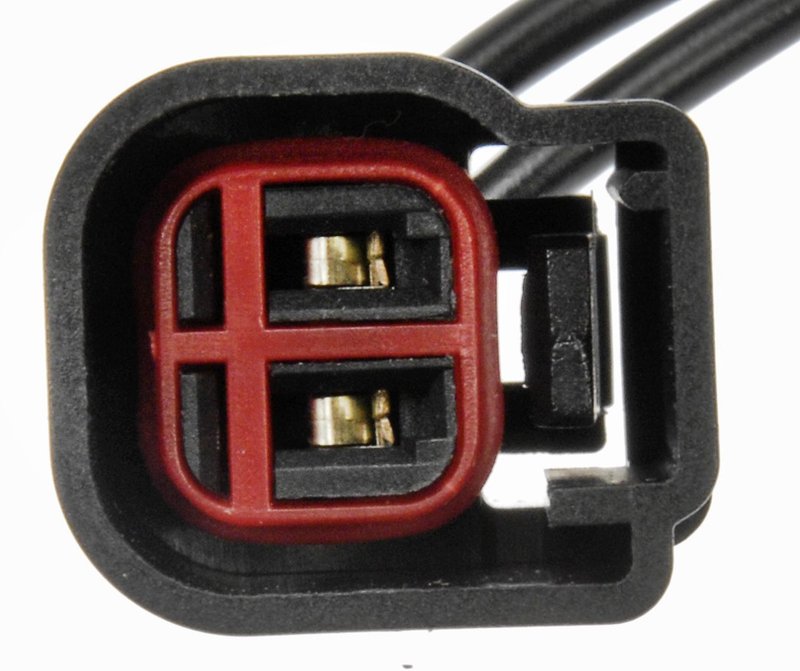

Dorman 645-685 Door Jamb Switch Connector

Dorman 645-685 Door Jamb Switch Connector

Dorman 645-685 is a replacement electrical connector built to match the original connector’s appearance and function on specified applications. It uses quality materials for dependable performance and durability in Ford, Lincoln, and Mercury repairs where the factory connector has failed or been damaged.

Key Features

• Door jamb switch connector replacement for electrical repair work
• 2-cavity female connector with spade terminal type
• 11-inch wiring harness length with 12-gauge wire
• Tin brass terminal material for consistent conductivity
• Package contents include pigtail and 2 butt connectors
• Direct replacement style for Ford F-150, Explorer, Mustang, and related applications

Detailed Description

This Dorman 645-685 connector is engineered as a service replacement for vehicles that use a 2-cavity female connector for the A/C compressor clutch. It is listed for a wide range of Ford, Lincoln, and Mercury models, including Ford F-150, Explorer, Ranger, Mustang, Expedition, and Transit applications, along with Lincoln Navigator and MKZ coverage. The part number 645-685 is also a useful reference when searching for a door jamb switch connector replacement or a Ford A/C compressor clutch connector repair pigtail.

This part cross-references 1P2390 and EC1286 for the same application.

What It Helps Repair

• Broken, heat-damaged, or corroded connector terminals
• Intermittent A/C compressor clutch electrical connection
• Damaged wiring at the connector end of the harness
• Connector fitment issues on Ford F-150, Explorer, and Mustang repairs
• Service needs on Lincoln Navigator and Mercury Sable electrical connections

Installation Notes and Tips

Match the connector cavity count, terminal style, and wire gauge before installation. Verify the vehicle-side wiring condition, then splice the pigtail using proper electrical repair practices and secure all connections to prevent strain on the harness. Confirm correct operation after installation on the applicable Ford, Lincoln, or Mercury vehicle.

Quality Assurance

Dorman designs this connector to replicate the original hardware’s fit and function on listed applications, using durable materials and tin brass terminals for reliable electrical contact.
