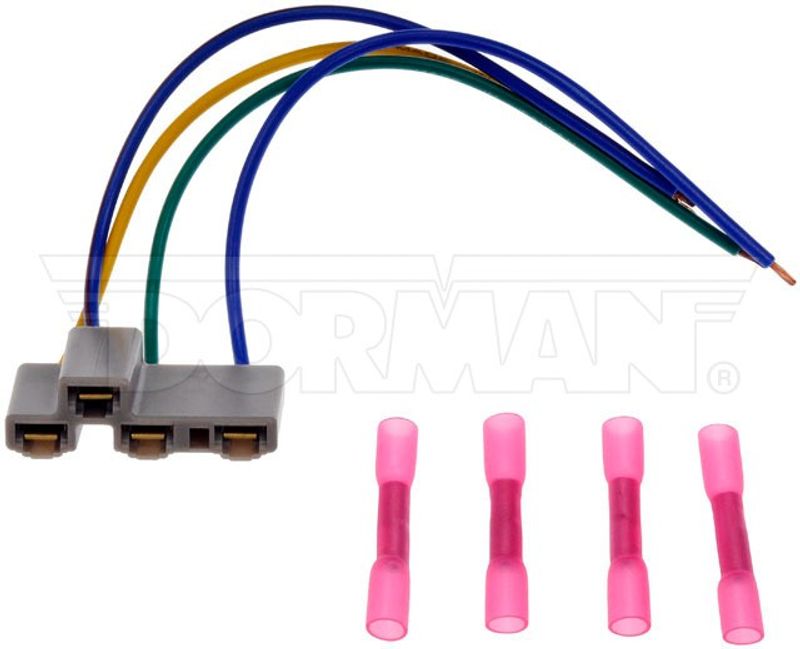

Dorman 645-709 HVAC Blower Motor Resistor Connector - Front

Dorman 645-709 HVAC Blower Motor Resistor Connector

Restore a damaged blower motor resistor connection with the Dorman 645-709 HVAC blower motor resistor connector. This OE-style repair connector is built for vehicles where the original plug has been affected by corrosion or heat damage, helping bring back reliable blower motor operation.

Designed for 16-gauge wiring with female blade terminals, this connector uses tin brass terminals for corrosion resistance and consistent electrical contact. It is a practical repair choice for classic GM applications, including Buick LeSabre, Chevrolet Camaro, Pontiac Bonneville, and related models with 2-way HVAC connections.

Key Features

• Direct replacement HVAC blower motor resistor connector for damaged OE plugs
• 16-gauge wire gauge measurement for common repair applications
• 4-wire pigtail design with female blade terminals
• Tin brass, tin-plated terminals for corrosion resistance
• Overall length: 5.5 in
• Package contents: pigtail and 4 butt connectors
• Part number: 645-709

Detailed Description

The Dorman 645-709 is made for repairing blower motor resistor connector failures caused by overheated terminals, corrosion, or brittle wiring. It is a strong OE replacement for HVAC electrical connector repairs on a wide range of GM cars, trucks, and vans from 1977-1999. This part cross-references Standard Ignition S-601 for the same application. Use it on vehicles such as the Buick LeSabre, Chevrolet Camaro, and Pontiac Bonneville when the original connector no longer maintains a dependable electrical connection.

What It Helps Fix

• Intermittent or inoperative blower motor speeds
• Melted or heat-damaged resistor connector terminals
• Corroded HVAC electrical connections
• Loose or unreliable blower motor resistor plug contact
• Repair needs on 2-way HVAC blower motor resistor circuits

Installation Notes and Tips

• Verify vehicle year, make, model, and HVAC configuration before installation.
• Confirm the application notes, including w/Air Conditioning or wo/Automatic Temperature Control (ATC), match the vehicle.
• Inspect the resistor and surrounding wiring for heat damage before connecting the new pigtail.
• Use proper butt-connector splicing practices to maintain a secure electrical repair.
• Fits 1977-1999 Buick LeSabre, Chevrolet Camaro, Pontiac Bonneville, and other listed GM applications with 2-way HVAC connections.

Quality Assurance

Dorman designs replacement electrical connectors to match the needs of original equipment repair work. The 645-709 uses corrosion-resistant terminal materials to support dependable contact in HVAC blower motor resistor circuits.
