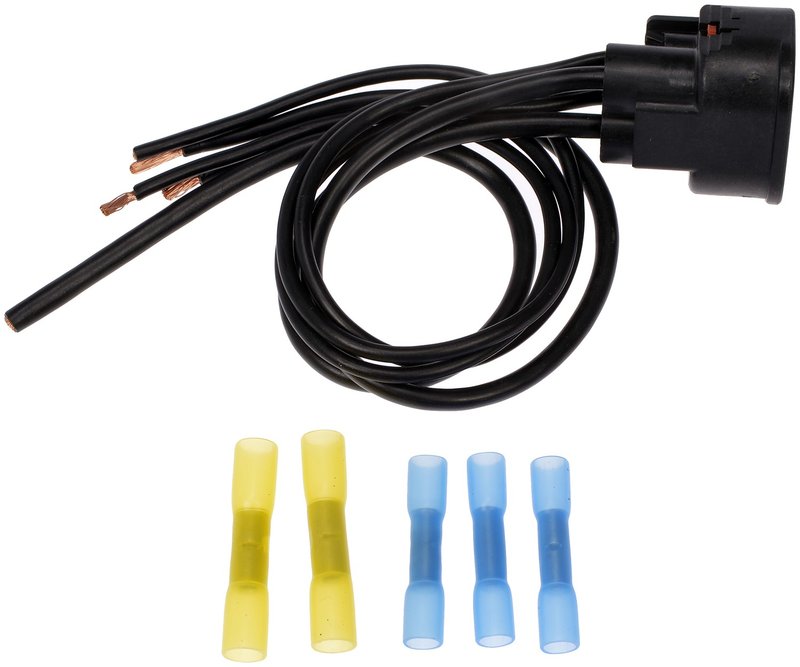

Dorman 645-711 HVAC Blower Motor Resistor Connector - Front

Overview of Dorman HVAC Blower Motor Resistor Connector 645-711

The Dorman HVAC Blower Motor Resistor Connector 645-711 is designed to provide reliable electrical connectivity for HVAC blower motor resistor systems. Engineered for select Ford, Lincoln, and Mercury vehicles, this connector ensures consistent performance and durability in your vehicle's climate control system.

• Compatible with Ford, Lincoln, and Mercury models including Colony Park, Crown Victoria, Expedition, Grand Marquis, LS, Marauder, and Town Car
• Includes one harness and five butt connectors for secure wiring connections
• Features 5 wires with 10 and 16 gauge measurements for optimal current handling
• Blade terminal type with female terminal gender for proper fit and connection
• Constructed with tin brass (tin plate) terminal material for corrosion resistance
• Overall length of 12.68 inches to accommodate factory wiring layouts

Technical Details and Specifications

The Dorman 645-711 blower motor resistor connector is built with a combination of 10 and 16 gauge wires, providing the necessary capacity for HVAC blower motor resistor circuits. The blade-style terminals are female and made from tin-plated brass, which offers reliable conductivity and resistance to corrosion over time. The connector includes a harness and five butt connectors, facilitating straightforward installation and secure splicing of wires. With an overall length of 12.68 inches, this connector fits well within the engine compartment wiring harnesses of compatible vehicles.

Compatible Vehicles and Applications

This HVAC blower motor resistor connector is compatible with a range of Ford, Lincoln, and Mercury vehicles. It is specifically designed for models such as the Ford Crown Victoria, Expedition, Colony Park, Lincoln Town Car, Grand Marquis, LS, and Mercury Marauder. The part number 645-711 ensures you receive the correct connector for these applications, maintaining proper HVAC blower motor resistor function.

Common Issues Addressed by This Connector

• Intermittent blower motor operation due to faulty resistor connections
• HVAC blower motor resistor failure caused by poor electrical contact
• Wiring harness damage or corrosion affecting blower motor resistor performance
• Blower motor speeds not functioning correctly due to connector issues
• Electrical shorts or open circuits in the blower motor resistor wiring

Installation Notes and Tips

When installing the Dorman 645-711 blower motor resistor connector, ensure the vehicle's battery is disconnected to prevent electrical shorts. Use the included butt connectors to splice wires securely, and verify that the blade terminals are fully seated to avoid loose connections. Confirm wire gauge compatibility and routing to match factory specifications for the Ford, Lincoln, or Mercury model in question. Proper installation will help maintain HVAC system reliability and blower motor performance.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards, using quality materials such as tin-plated brass terminals for corrosion resistance. The 645-711 connector undergoes rigorous testing to ensure durability and electrical integrity. Please refer to Dorman's warranty policy for specific coverage details on this HVAC blower motor resistor connector.
