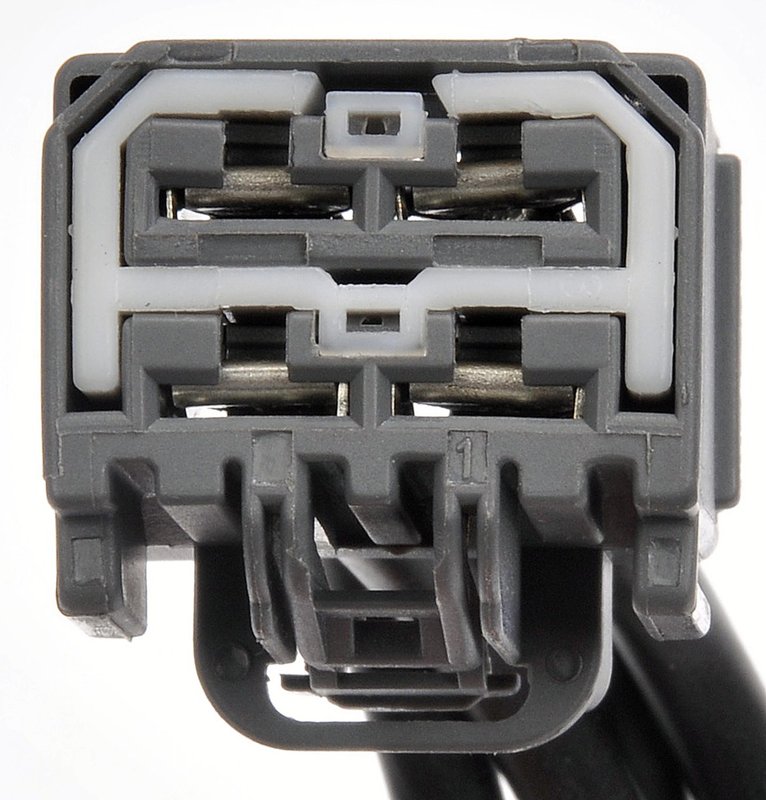

Dorman 645-736 HVAC Blower Motor Resistor Connector

Reliable HVAC Blower Motor Resistor Connector for Chrysler, Dodge, and Ford

The Dorman 645-736 HVAC blower motor resistor connector is designed to provide a secure and durable electrical connection for your vehicle's HVAC system. Compatible with Chrysler, Dodge, and Ford models such as the Focus, Grand Caravan, and Town & Country, this connector ensures consistent blower motor performance.

• Wire gauge measurement: 10 AWG for optimal current handling
• Blade terminal type with female terminal gender for secure connections
• Includes 4 wires and an overall length of 12.5 inches for easy installation
• Constructed with tin brass (tin plate) terminal material for corrosion resistance
• Package contains 1 pigtail and 4 butt connectors for complete wiring repair

Durable Construction and Precise Specifications

The Dorman 645-736 connector features a 10-gauge wire size, suitable for handling the electrical load of HVAC blower motor resistors in select Chrysler, Dodge, and Ford vehicles. The female blade terminals are made from tin-plated brass, providing reliable conductivity and resistance to corrosion over time. With a total length of 12.5 inches, this connector offers sufficient wire length for straightforward routing and connection within the HVAC system. The included pigtail and butt connectors simplify the repair process, allowing for a secure and professional wiring restoration.

Compatible Vehicles and Common Applications

This HVAC blower motor resistor connector is compatible with the following makes and models:

• Chrysler Town & Country
• Dodge Grand Caravan
• Ford Focus

It is specifically designed to replace worn or damaged blower motor resistor connectors, ensuring proper electrical flow and HVAC system functionality.

Common Issues Addressed by This Connector

• Intermittent or non-functioning blower motor speeds
• Electrical connection failures due to corrosion or wear
• HVAC blower motor resistor circuit interruptions
• Loose or damaged wiring connections in the blower motor circuit
• Overheating or electrical resistance issues caused by faulty connectors

Installation Notes and Tips

• Ensure the vehicle's battery is disconnected before installation to prevent electrical shorts
• Use the included butt connectors to splice wires securely and maintain proper insulation
• Verify wire gauge compatibility before installation to ensure proper fit and function
• Route wiring away from heat sources and moving parts to prevent damage
• Test the blower motor operation after installation to confirm successful repair

Quality Assurance and Warranty Information

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 645-736 HVAC blower motor resistor connector undergoes quality inspections to ensure durability and reliable performance. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Refer to Dorman's official documentation for exact warranty terms.
