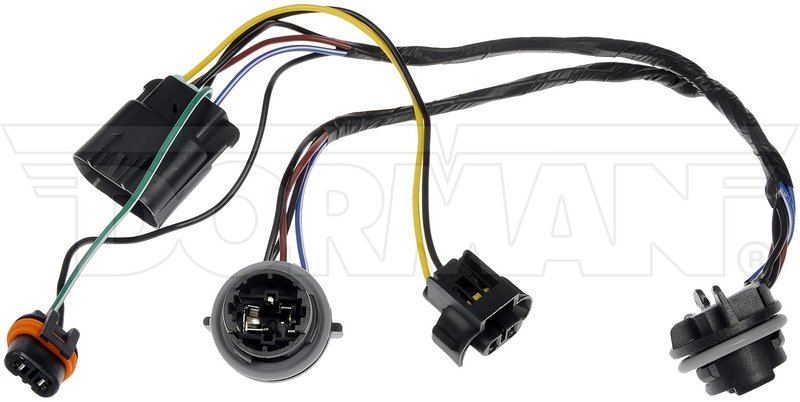

Dorman 645-745 Headlight Socket - High Beam or Low Beam

Reliable Headlight Socket for Chevrolet Silverado Models

The Dorman 645-745 headlight socket is designed to provide a secure and durable electrical connection for your Chevrolet Silverado 1500, 2500, 2500 HD, 3500, and 3500 HD headlights. Engineered with quality materials, this socket ensures consistent performance and ease of installation.

• Terminal Type: Blade for reliable electrical contact
• Wire Quantity: 7 wires to support complex headlight wiring needs
• Terminal Gender: Male and female terminals included for versatile connectivity
• Overall Length: 11 inches for convenient routing and installation
• Terminal Material: Tin brass (tin plate) for corrosion resistance and durability
• Package Contents: Includes 1 pigtail for direct replacement

Product Details and Specifications

The Dorman 645-745 headlight socket features a blade terminal type, which is widely used in automotive electrical systems for its secure and stable connection. With seven wires, this socket supports multiple circuits within the headlight assembly, accommodating functions such as low beam, high beam, and parking lights. The inclusion of both male and female terminals allows for flexible installation options, ensuring compatibility with existing wiring harnesses.

Measuring 11 inches in overall length, the pigtail provides sufficient wire length for routing within the engine bay without strain. The terminals are constructed from tin-plated brass, offering enhanced resistance to corrosion and electrical conductivity, which is critical for maintaining reliable headlight operation in various weather conditions.

Compatible Chevrolet Silverado Models

This headlight socket is compatible with Chevrolet Silverado 1500, Silverado 2500, Silverado 2500 HD, Silverado 3500, and Silverado 3500 HD models. It is designed to meet the electrical connection requirements specific to these vehicles, making it a suitable replacement part for headlight socket repairs or upgrades.

Common Applications and Issues Addressed

• Replacement of damaged or corroded headlight sockets causing intermittent lighting
• Repair of faulty electrical connections leading to headlight flickering or failure
• Upgrading worn wiring harness components to restore proper headlight function
• Resolving issues with loose or broken terminals affecting headlight performance
• Ensuring secure connections in vehicles exposed to moisture and road debris

Installation Notes and Tips

When installing the Dorman 645-745 headlight socket, ensure the vehicle’s battery is disconnected to prevent electrical shorts. Verify the correct orientation of male and female terminals before connecting to avoid damage. Use appropriate tools to secure blade terminals firmly and route the 11-inch pigtail away from heat sources and moving parts. Inspect the wiring harness for any additional damage and replace if necessary to maintain system integrity.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The 645-745 headlight socket is made with corrosion-resistant tin-plated brass terminals to ensure long-lasting electrical connections. While specific warranty details may vary, Dorman typically offers limited warranties covering defects in material and workmanship. Consult product documentation for exact warranty terms.
