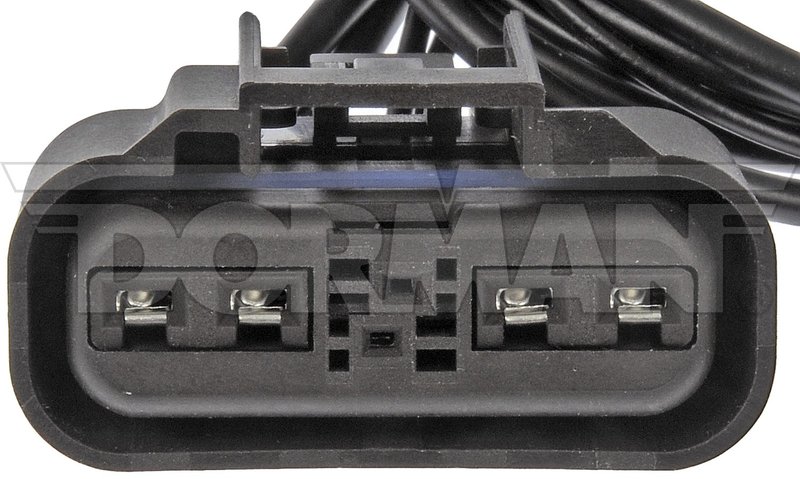

Dorman 645-909 Fuel Pump Driver Module Connector

Reliable Fuel Pump Driver Module Connector for Ford and Lincoln Vehicles

The Dorman 645-909 Fuel Pump Driver Module Connector is designed to provide a secure and efficient electrical connection for fuel pump driver modules in select Ford, Lincoln, Mazda, and Mercury models. This connector ensures proper electrical flow and helps maintain fuel system performance in vehicles like the Ford F-150, Lincoln Navigator, and Mazda Tribute.

• Compatible with Ford, Lincoln, Mazda, and Mercury models including Crown Victoria, E-150, F-250 Super Duty, and more
• Includes 1 pigtail and 6 butt connectors for reliable wiring connections
• Features 6 female blade terminals made of durable plastic
• Supports wire gauges 12 and 16 for versatile installation
• Connector length of 12.32 inches for convenient routing

Durable Connector Designed for Fuel Pump Driver Modules

The Dorman 645-909 connector is engineered to meet the electrical demands of fuel pump driver modules in various vehicles. It features six female blade terminals constructed from plastic, providing a secure and stable connection. The connector supports both 12 and 16 gauge wires, accommodating different wiring harness configurations. Although it is not color-coded or weather resistant, the connector’s design focuses on reliable electrical contact and ease of installation. The included pigtail and butt connectors allow for straightforward splicing and integration into existing wiring systems.

Compatible Vehicles and Applications

This fuel pump driver module connector is compatible with a wide range of Ford, Lincoln, Mazda, and Mercury vehicles. It is suitable for models such as the Ford F-150, E-350 Super Duty, Lincoln Town Car, Mazda Tribute, and Mercury Mariner. The Dorman 645-909 is ideal for replacing worn or damaged connectors in the fuel delivery system to restore proper electrical function.

• Resolves intermittent fuel pump operation due to faulty connections
• Replaces damaged or corroded fuel pump driver module connectors
• Addresses electrical issues causing fuel pump failure or stalling
• Helps restore consistent fuel delivery in older Ford and Lincoln trucks
• Supports maintenance and repair of fuel system wiring harnesses

Installation Notes and Tips

Installation of the Dorman 645-909 connector requires basic wiring skills and tools. The 12.32-inch pigtail length provides flexibility for routing and connection. Use the included butt connectors to splice into existing wiring securely. Ensure proper wire gauge matching (12 or 16 gauge) for optimal electrical performance. Since the connector is not weather resistant, it is recommended to install it in a protected area or apply additional sealing measures to prevent moisture intrusion.

Quality Assurance and Warranty Information

Dorman parts are manufactured to meet or exceed OEM standards for fit and function. The 645-909 Fuel Pump Driver Module Connector undergoes quality checks to ensure reliable performance in compatible vehicles. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Refer to Dorman’s official documentation for complete warranty terms.
