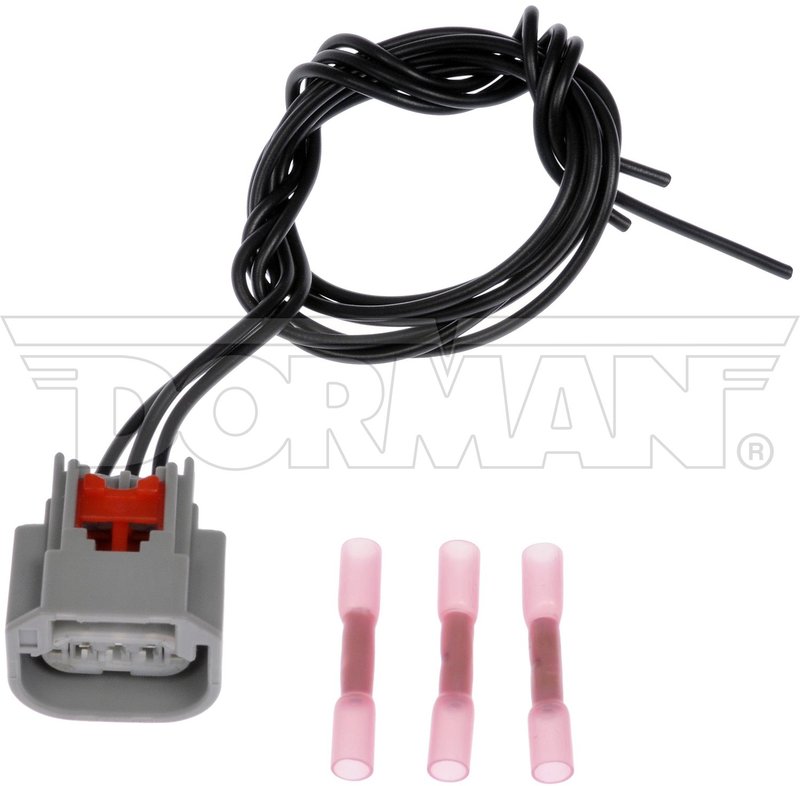

Dorman 645-943 Power Steering Control Module Connector

Power Steering Control Module Connector Overview

The Dorman 645-943 Power Steering Control Module Connector is designed to provide reliable electrical connectivity for power steering systems in select Dodge, Jeep, and Ram vehicles. This connector ensures secure and efficient communication between the wiring harness and the power steering control module.

• Wiring harness length: 20 inches for flexible installation
• Wire gauge measurement: 18 AWG for optimal current capacity
• Terminal types: Aspa and blade terminals for secure connections
• Terminal quantity: 3 terminals to match OEM specifications
• Terminal gender: Female (Hembra) terminals included
• Package contents: 1 flexible cable (pigtail) and 3 butt connectors
• Compatible with multiple Dodge, Jeep, and Ram models

Detailed Product Description

The Dorman 645-943 connector features a 20-inch wiring harness constructed with 18-gauge wire, providing a balance of flexibility and durability for power steering control module connections. It includes three female terminals, combining Aspa and blade terminal types to ensure a secure and reliable electrical interface. The package contains one flexible cable and three butt connectors, allowing for straightforward installation and connection repairs. This connector is engineered to meet the electrical requirements of power steering systems in Dodge Ram 1500, 2500, 3500, Jeep Grand Cherokee, Compass, Durango, and Dodge Caliber, Challenger, and Charger models.

Compatible Vehicles and Applications

This power steering control module connector is compatible with the following makes and models:

• Dodge Ram 1500, 2500, 3500
• Jeep Grand Cherokee, Compass, Durango
• Dodge Caliber, Challenger, Charger

It is designed specifically for use in power steering electrical systems, ensuring proper signal transmission and system functionality.

Common Issues Addressed

• Intermittent or lost power steering control signals
• Damaged or corroded connector terminals
• Wiring harness wear or breakage
• Faulty electrical connections causing steering system errors
• Replacement of worn or broken power steering module connectors

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical shorts
• Verify terminal orientation and secure connections using the included butt connectors
• Use proper crimping tools for reliable terminal attachment
• Inspect wiring harness routing to avoid pinching or abrasion
• Test power steering system functionality after installation

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 645-943 Power Steering Control Module Connector undergoes quality inspections to ensure durability and reliable performance. Please refer to Dorman's warranty policy for specific coverage details.
