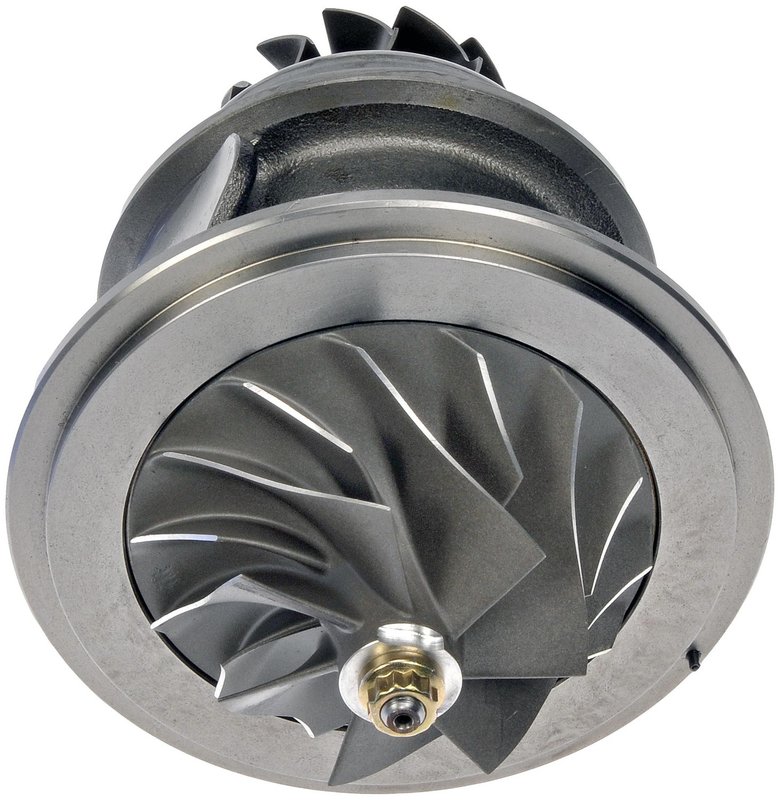

Dorman 667-002 Turbocharger Cartridge

Dorman 667-002 Turbocharger Cartridge

Dorman 667-002 is a standard replacement turbocharger cartridge for select Dodge Ram diesel applications. It provides a direct cartridge-level repair path when the original turbocharger center section fails, helping avoid full turbocharger replacement.

Key Features

• Journal bearing design for cartridge replacement service
• Standard replacement grade for OE-style repair
• Compressor impeller inducer diameter: 3.3 in.
• Turbine impeller exducer diameter: 2.5 in.
• Includes cartridge installation gaskets
• Cross-references 2t302 and R5143256AA for the same application

Detailed Description

This Dorman turbocharger cartridge is built for 2005-2009 Dodge Ram 2500 and 2006-2009 Dodge Ram 3500 applications with engine sales code ETH, including the 2009 Dodge Ram 3500 L6 359CID 5.9L configuration. Part number 667-002 is intended for owners and technicians who need to replace the failed cartridge section rather than the complete turbocharger assembly. For Dodge Ram 2500 and Dodge Ram 3500 diesel service, this cartridge supports a focused repair using the original turbocharger housing where applicable.

Dorman 667-002 is a practical OE-style solution when the turbocharger center section shows wear or failure. The journal bearing construction and cartridge-specific dimensions help match the original service requirements for the listed Dodge Ram fitments.

What It Helps Fix

• Turbocharger shaft play caused by worn journal bearings
• Loss of boost from a damaged cartridge assembly
• Oil leakage related to center section wear
• Whining, scraping, or imbalance from turbocharger cartridge failure
• Need for cartridge-level repair instead of full turbocharger replacement

Installation Notes and Tips

Verify engine sales code ETH and confirm the vehicle application before installation. Inspect the turbocharger housing, oil supply, and related intake and exhaust connections for damage or contamination before fitting the new cartridge. Use the included cartridge installation gaskets during assembly and follow the service procedure for turbocharger priming, torque sequence, and clean oil handling.

Quality Assurance

Dorman OE FIX parts are engineered to provide a direct repair path for specific failure points, and this cartridge is built as a standard replacement for the listed Dodge Ram applications. Part number 667-002 is designed to address cartridge-level turbocharger service without requiring a complete turbocharger replacement.
