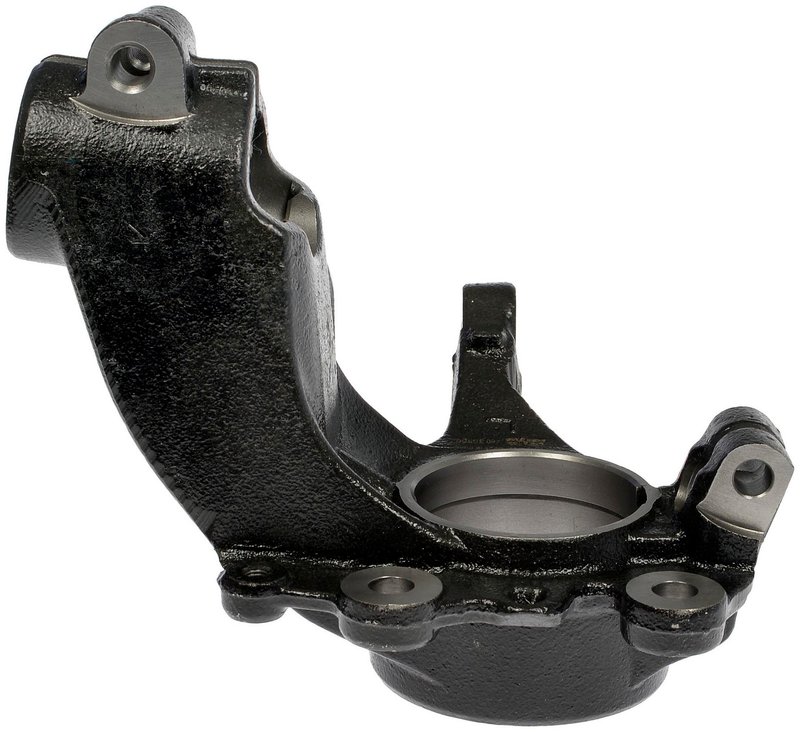

Dorman 686-014 Steering Knuckle - Front Right
| Brand | Dorman 686-014 |
|---|---|
| Position | Front Right |
| Material | Acero |
| Material | Steel |
| Length | 169.3 |
| Construction | Cast |
| Construction | Fundido |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Width | 57.7 |
| Instruction Manual Included | No |
| Instruction Manual Included | Non |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Height | 207.8 |
| Sensor Hole Diameter | 10 |
| Caliper Mounting Hole Quantity | 6 |
| Caliper Mounting Hole Diameter | 14.3 |
| Axle Included | No |
| Axle Included | Non |
| Contenidos del paquete | 1 muñón |
| Contenidos del paquete | 1 tuerca del eje |
| Contenidos del paquete | 2 pernos |
| Grado del artículo | Reemplazo estándar |
| Hub Included | No |
| Hub Included | Non |
| Item Grade | Standard replacement |
| Package Contents | 1 axle nut |
| Package Contents | 1 knuckle |
| Package Contents | 2 bolts |
| Fits | Ford · 5 vehicles |
Standard replacement. Precision-engineered and rigorously tested for reliable fit and function.
Cast steel construction. Delivers the strength and durability expected from a steering knuckle.
Steering knuckle. A direct replacement for the original part on specific vehicles.
Cross-references DV6Z3K185A for the same application. See all 1.
OE-Style Steering Knuckle for Transit Connect
Dorman 686-014 is a steel steering knuckle for the front right position on select Ford Transit Connect models. It is precision-engineered and tested to replace the original knuckle on the specified vehicles, with fitment covering 2014-2017 Ford Transit Connect and 2018 Ford Transit Connect built through 5/28/18.
- Steel construction with a cast design for structural strength
- Black finish
- Front right application
- Sensor hole diameter: 10 mm
- Caliper mounting: 6 holes with 14.3 mm diameter
- Standard replacement grade
- Compatible with Ford Transit Connect front suspension service work
Detailed Product Overview
This steering knuckle is built for the Ford Transit Connect front right corner and follows the original replacement layout for the listed model years. Dorman 686-014 is intended for drivers and repair shops replacing a damaged or worn knuckle on 2014-2017 Ford Transit Connect and 2018 Ford Transit Connect vehicles through 5/28/18. The cast steel construction supports the steering and wheel-end assembly, while the OE-style dimensions help maintain proper component alignment during repair.
This part cross-references Ford (e.g., DV6Z3K185A) for the same application.
Common Problems This Part Can Address
- Cracked or bent steering knuckle from impact damage
- Excessive play or alignment issues at the front right wheel end
- Brake caliper mounting damage at the knuckle
- Sensor mounting wear at the knuckle opening
- Need for a standard replacement during suspension or steering repair
Installation Notes and Tips
Verify front right fitment before installation on the Ford Transit Connect. Transfer or inspect related wheel-end components as needed, and confirm caliper mounting, sensor opening size, and axle nut interface match the vehicle configuration. Because this is a steering and suspension component, professional installation and a post-repair alignment are recommended.
Quality Assurance
Dorman states that this steering knuckle is precision-engineered and rigorously tested to provide reliable replacement performance for the original part on the listed vehicles. Part number 686-014 is a standard replacement component for the specified Ford Transit Connect applications.
| Year | Make | Model | Wheel Base | Position | Notes |
|---|---|---|---|---|---|
| 2018 | Ford | Transit Connect | 120.6" | Front Right | To 5/28/18 |
| 2017 | Ford | Transit Connect | 120.6" | Front Right | — |
| 2016 | Ford | Transit Connect | 120.6" | Front Right | — |
| 2015 | Ford | Transit Connect | 120.6" | Front Right | — |
| 2014 | Ford | Transit Connect | 120.6" | Front Right | — |
