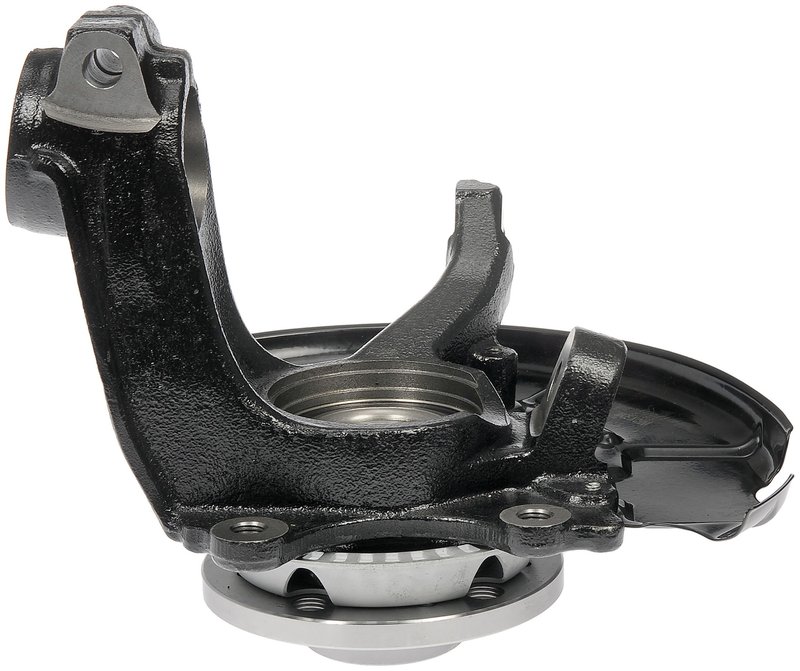

Dorman 686-200 Steering Knuckle Kit - Front Right

Overview of Dorman Steering Knuckle Kit 686-200

The Dorman 686-200 Steering Knuckle Kit is engineered for Volkswagen vehicles including the Beetle, Beetle Cabrio, Golf, and Jetta models. Designed to maintain precise steering and suspension alignment, this steering knuckle kit supports critical vehicle handling and safety functions.

• Compatible with Volkswagen Beetle, Beetle Cabrio, Golf, and Jetta
• Includes one load knuckle with 36 splines
• Flange included with 5 bolt holes and 5 wheel studs
• Wheel pilot diameter: 57 mm; brake pilot diameter: 65 mm
• Supports Anti Lock Braking System (ABS) with sensor compatibility
• Wheel stud size M14-1.5 with included wheel studs
• Flange shape is circular with a diameter of 126 mm and bolt circle diameter of 100 mm
• Flange offset of 44.7 mm for proper alignment

Detailed Product Description

The Dorman 686-200 Steering Knuckle Kit is a direct replacement part designed specifically for Volkswagen models such as the Beetle, Beetle Cabrio, Golf, and Jetta. This kit features a 36-spline design that ensures a secure fit and reliable connection to the steering and suspension components. The included flange has a circular shape with a 126 mm diameter and a 100 mm bolt circle diameter, providing compatibility with the vehicle’s wheel assembly. The flange offset of 44.7 mm is engineered to maintain proper wheel alignment and handling characteristics.

Wheel studs are included in the kit, sized M14-1.5, with a total of five studs to match the flange bolt hole quantity. The wheel pilot diameter measures 57 mm, while the brake pilot diameter is 65 mm, ensuring precise fitment with the brake components. This steering knuckle kit supports vehicles equipped with an Anti Lock Braking System (ABS) sensor, although the ABS sensor itself is not included.

Common Applications and Problem Resolution

• Replacement for worn or damaged steering knuckles on Volkswagen Beetle, Beetle Cabrio, Golf, and Jetta
• Restores proper wheel alignment and steering response
• Addresses issues related to uneven tire wear caused by faulty knuckles
• Supports ABS sensor functionality for safe braking performance
• Corrects flange and wheel stud damage to maintain secure wheel attachment

Installation Notes and Tips

• Ensure vehicle is securely lifted and supported before installation
• Verify spline count and flange bolt pattern match the vehicle specifications
• Use proper torque specifications for flange bolts and wheel studs
• Inspect ABS sensor wiring and connectors during installation, as sensor is not included
• Check wheel alignment after installation to confirm proper handling

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 686-200 Steering Knuckle Kit undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Consult product documentation for exact warranty terms.
