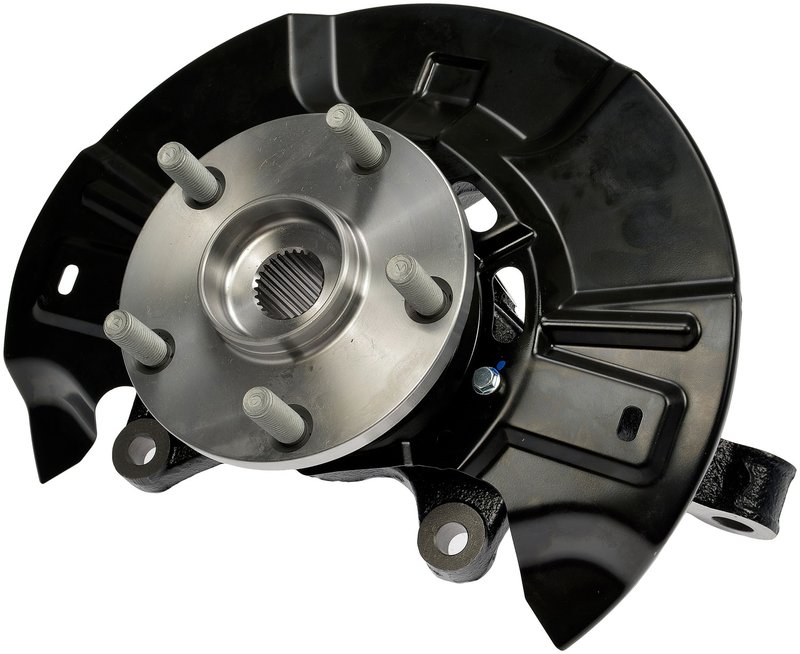

Dorman 686-252 Wheel Bearing and Hub Assembly - Front Right

Dorman OE FIX Loaded Knuckle for Front Right Repair

Dorman 686-252 is a loaded steering knuckle and wheel bearing assembly for front right service on select Toyota Matrix and Pontiac Vibe models. It brings together the critical hub, bearing, knuckle, and related components in one OE FIX design to simplify a repair that often requires pressing parts apart and back together.

For shops and DIY technicians, this assembly helps reduce downtime on a wheel bearing or hub repair while supporting a cleaner, safer installation on the front right corner.

Key Features

• OE FIX loaded knuckle design for a more direct repair process
• Standard replacement grade for routine driveline and axle service
• Ball bearing construction
• ABS sensor type application
• 5-lug wheel stud pattern with 114.3 mm bolt circle diameter
• Driven axle application with 26 splines
• Hub pilot diameter: 71.25 mm
• Brake pilot diameter: 139 mm

Detailed Description

This Dorman wheel bearing and hub assembly is built for front right service on 2009-2013 Toyota Matrix and 2009-2010 Pontiac Vibe models. It is engineered as a loaded knuckle assembly, which means the major service components are already integrated for a more straightforward repair than a traditional press-in bearing job. Dorman 686-252 is a practical choice when replacing a worn front wheel bearing, hub, or steering knuckle assembly on these applications.

This part cross-references MOOG Hub Assemblies LK068 for the same application.

What It Helps Fix

• Front wheel bearing noise or growling
• Excessive hub play or looseness
• ABS-related wheel speed sensor service issues tied to the hub area
• Damage to the steering knuckle or hub mounting surfaces
• Time-consuming press service during front right suspension repair

Installation Notes and Tips

Fits 2009-2013 Toyota Matrix, front right. Fits 2009-2010 Pontiac Vibe, front right. Verify spline count, bolt circle diameter, brake pilot diameter, and ABS sensor configuration before installation. Because this is a loaded knuckle assembly, it is suited to repairs where replacing the complete front right hub and knuckle unit is preferred over rebuilding individual components. Dorman 686-252 should be matched to the vehicle’s exact year, make, model, and position before service begins.

Quality Assurance

Dorman positions this OE FIX assembly as a service-friendly replacement for applications that traditionally require more labor and specialized equipment. The design consolidates the critical front-end components into one assembly to support a faster, simpler repair process on Toyota Matrix and Pontiac Vibe front right applications.
