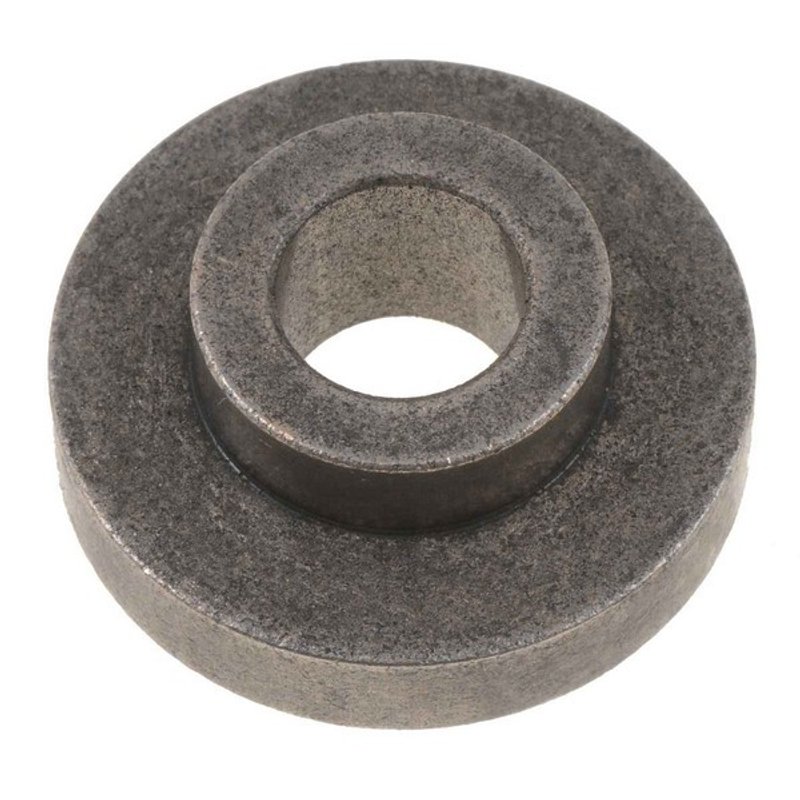

Dorman 690-035 Clutch Pilot Bushing

Overview of Dorman Clutch Pilot Bushing 690-035

The Dorman 690-035 clutch pilot bushing is designed for reliable performance in select Chevrolet models. Crafted from durable powder metal, this clutch pilot bushing ensures precise alignment and smooth operation in your vehicle's transmission system.

• Constructed from powder metal for strength and durability
• Inside diameter of 0.594 inches for accurate fitment
• Outside diameter of 1.716 inches to match OEM specifications
• Type C design for consistent performance
• Compatible with Chevrolet Bel Air, Corvette, El Camino, and Impala models

Detailed Product Description

The Dorman 690-035 clutch pilot bushing is engineered to meet the exacting standards required for clutch system components. Its powder metal construction offers a balance of wear resistance and strength, essential for maintaining the alignment between the transmission input shaft and the crankshaft. With an inside diameter of 0.594 inches and an outside diameter of 1.716 inches, this bushing fits precisely within the transmission housing, reducing vibration and wear. The Type C design ensures compatibility with the specified Chevrolet models, including the Bel Air, Corvette, El Camino, and Impala, providing a reliable replacement part for maintaining clutch system integrity.

Applications and Problem Resolution

• Prevents excessive wear on the transmission input shaft
• Reduces clutch chatter and vibration during operation
• Eliminates misalignment issues between the crankshaft and transmission
• Addresses premature bushing failure due to material fatigue
• Restores smooth clutch engagement and disengagement

Installation Notes and Tips

When installing the Dorman 690-035 clutch pilot bushing, ensure the transmission input shaft and bore are clean and free of debris. Use appropriate tools to press the bushing evenly into place without damaging the powder metal surface. Verify the inside diameter clearance matches the input shaft specifications to avoid binding. It is recommended to inspect the clutch assembly components during installation to identify any additional wear or damage.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards, providing dependable performance for your Chevrolet vehicle. The 690-035 clutch pilot bushing undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Dorman typically offers coverage against defects in material and workmanship, supporting long-term reliability in transmission applications.
