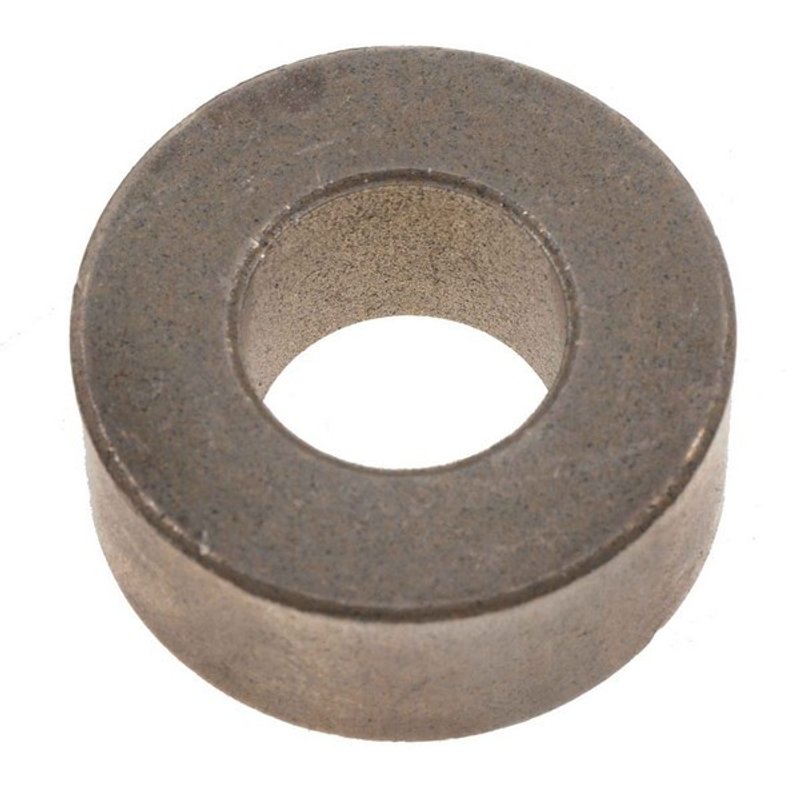

Dorman 690-039 Clutch Pilot Bushing

Overview of Dorman Clutch Pilot Bushing 690-039

The Dorman 690-039 clutch pilot bushing is designed for reliable performance in select Ford and Mercury vehicles. Manufactured from durable powder metal, this clutch pilot bushing ensures precise alignment and smooth operation in your transmission system.

• Constructed from high-quality powder metal for durability
• Inside diameter of 0.673 inches for accurate fitment
• Outside diameter of 1.38 inches to match OEM specifications
• Type A design for compatibility with specific clutch systems
• Package includes 5 pilot bushings for multiple replacements

Detailed Product Description

The Dorman clutch pilot bushing 690-039 is engineered to meet the exacting standards required for clutch pilot bushings in various Ford and Mercury models. Its powder metal construction provides wear resistance and longevity under demanding transmission conditions. With an inside diameter of 0.673 inches and an outside diameter of 1.38 inches, this bushing maintains proper alignment between the transmission input shaft and the clutch assembly. The Type A specification ensures compatibility with the clutch systems found in vehicles such as the Ford Bronco, Mustang, F-150, and Mercury Cougar.

Compatible Vehicles and Applications

This clutch pilot bushing is compatible with a range of Ford and Mercury vehicles, including:

• Ford Bronco
• Ford Mustang
• Ford F-100, F-150, F-250, F-350
• Ford E-100, E-150, E-250, E-350 Econoline and Club Wagon models
• Mercury Cougar, Colony Park, LTD, Marquis, Montego

Common Issues Addressed by This Clutch Pilot Bushing

• Excessive wear causing clutch misalignment
• Transmission input shaft vibration or noise
• Difficulty in clutch engagement or disengagement
• Premature wear of clutch components due to improper shaft support
• Replacement of worn or damaged pilot bushings during clutch service

Installation Notes and Tips

• Ensure the transmission input shaft and bore are clean before installation
• Use appropriate tools to press the bushing evenly into place without damage
• Verify the bushing’s inside diameter matches the input shaft for proper fit
• Replace all pilot bushings in the package if multiple repairs are needed
• Consult vehicle service manual for torque specifications and alignment procedures

Quality Assurance and Warranty

Dorman manufactures the 690-039 clutch pilot bushing to meet or exceed OEM standards for fit and function. The powder metal material offers consistent performance and durability. While specific warranty details may vary, Dorman products typically include coverage against defects in material and workmanship to ensure customer confidence in replacement parts.
