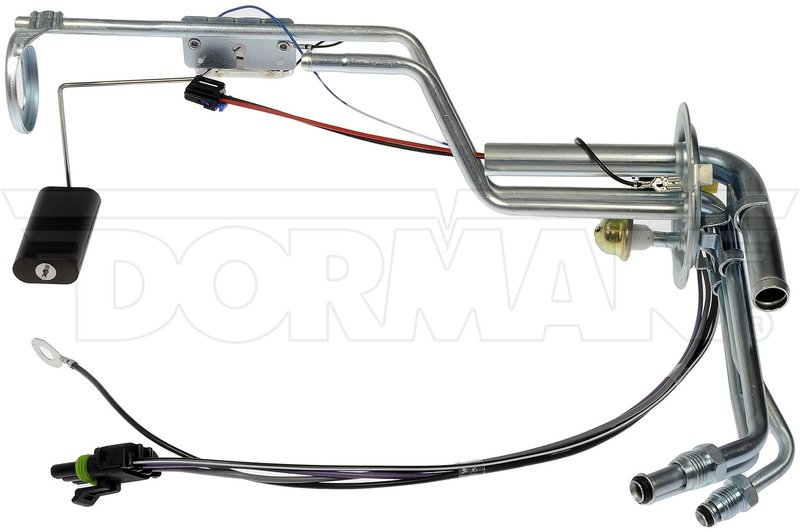

Dorman 692-000 Fuel Tank Sending Unit

Reliable Fuel Tank Sending Unit for Chevrolet and GMC Trucks

The Dorman 692-000 Fuel Tank Sending Unit is designed to provide accurate fuel level readings for Chevrolet and GMC trucks, including C1500, C2500, C3500, K1500, K2500, and K3500 models. This sending unit features a bullet terminal type with three terminals and comes with a wiring harness and gasket for straightforward installation.

Key Features of the Dorman 692-000 Fuel Tank Sending Unit

• Terminal Type: Bullet with 3 terminals for secure electrical connections
• Wiring Harness Included for easy integration with existing vehicle wiring
• Gasket Included to ensure a proper seal and prevent fuel leaks
• Ohms Empty: 0, Ohms Full: 95 for precise fuel level measurement
• Flat Male Plug/Connector Type for compatibility with factory wiring
• Package Contents: Sending unit, lock ring, and gasket
• Fuel Pump Not Included, designed specifically as a sending unit replacement

Detailed Description

The Dorman 692-000 Fuel Tank Sending Unit is engineered to meet the specifications of Chevrolet and GMC full-size trucks, including the C1500, C2500, C3500, K1500, K2500, and K3500 series. This unit uses a bullet terminal type with three terminals, ensuring reliable electrical connections and accurate fuel level readings. The included wiring harness simplifies installation, while the gasket and lock ring provide a secure and leak-free fit. With resistance values ranging from 0 ohms when empty to 95 ohms when full, this sending unit delivers consistent and dependable fuel level data to the vehicle’s gauge cluster. The flat male plug connector type matches factory wiring harnesses, making it a direct replacement part. Note that this product does not include a fuel pump and is intended solely as a sending unit.

Common Applications and Issues Addressed

• Corrects inaccurate or fluctuating fuel gauge readings
• Replaces faulty or damaged fuel tank sending units
• Prevents fuel leaks with included gasket and lock ring
• Restores proper electrical connection with bullet terminals and wiring harness
• Ensures compatibility with Chevrolet and GMC C/K series trucks

Installation Notes and Tips

• Verify vehicle compatibility with Chevrolet and GMC C1500, C2500, C3500, K1500, K2500, or K3500 models before installation
• Use the included gasket and lock ring to secure the sending unit and prevent leaks
• Handle the wiring harness and terminals carefully to avoid damage during installation
• Ensure the flat male plug is fully seated to maintain proper electrical contact
• Consult the vehicle’s service manual for specific removal and installation procedures

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 692-000 Fuel Tank Sending Unit undergoes rigorous quality control to ensure reliable performance in Chevrolet and GMC trucks. This product includes a limited warranty covering defects in material and workmanship. For detailed warranty information, refer to Dorman’s official documentation.
