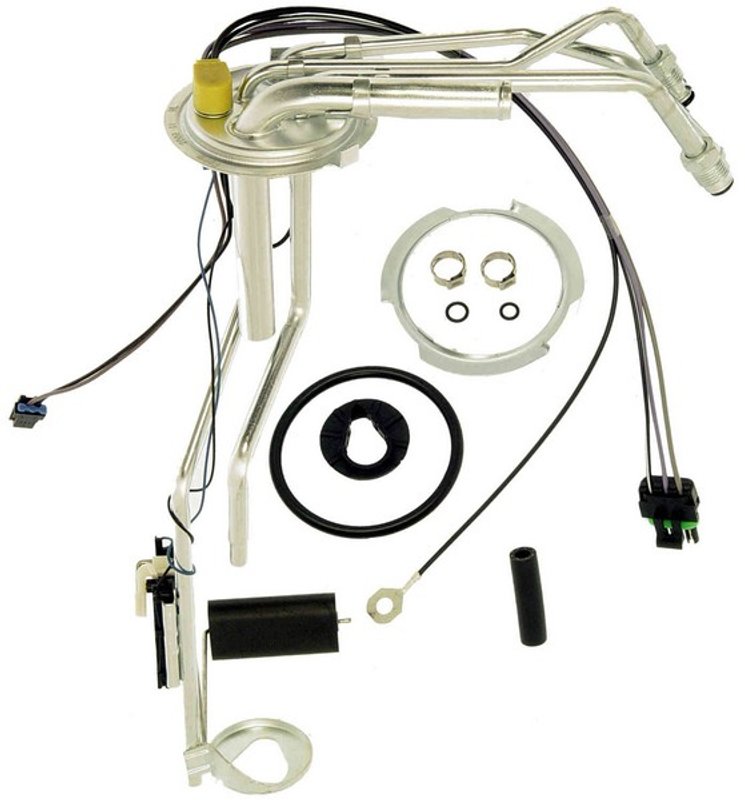

Dorman 692-001 Fuel Tank Sending Unit

Reliable Fuel Tank Sending Unit for Chevrolet and GMC Trucks

The Dorman 692-001 fuel tank sending unit is designed to provide accurate fuel level readings for Chevrolet and GMC trucks, including C1500, C2500, C3500, K1500, K2500, and K3500 models. This component ensures your vehicle's fuel gauge operates correctly by delivering precise resistance values corresponding to fuel levels.

Key Features of the Dorman 692-001 Fuel Tank Sending Unit

• Terminal Type: Bullet terminals for secure electrical connections
• Three terminals included for compatibility with factory wiring
• Wiring harness included for straightforward installation
• Gasket and lock ring included to ensure a proper seal and fit
• Flat male plug/connector type for reliable connectivity
• Resistance range from 0 ohms (empty) to 95 ohms (full) for accurate fuel level readings
• Fuel pump not included, designed specifically as a sending unit

Detailed Description of the Dorman 692-001 Sending Unit

This fuel tank sending unit from Dorman is engineered to replace the original equipment part in Chevrolet and GMC full-size trucks, including C1500, C2500, C3500, K1500, K2500, and K3500 models. The unit features bullet-type terminals with three connections, matching the factory wiring harness, which is included for ease of installation. The flat male plug ensures a secure and consistent electrical connection. The included gasket and lock ring help maintain a proper seal within the fuel tank, preventing leaks and ensuring accurate fuel level measurement. The resistance values range from 0 ohms when the tank is empty to 95 ohms when full, providing precise feedback to the vehicle’s fuel gauge. Note that this part number 692-001 does not include a fuel pump and is intended solely as a sending unit.

Common Applications and Issues Addressed

• Corrects inaccurate or fluctuating fuel gauge readings
• Replaces faulty sending units causing fuel level misreporting
• Resolves electrical connection issues with bullet terminals
• Prevents fuel leaks with included gasket and lock ring
• Restores proper fuel level monitoring in Chevrolet and GMC trucks

Installation Notes and Tips

• Ensure the vehicle is parked on a level surface and the fuel tank is empty or near empty before installation
• Use the included gasket and lock ring to secure the sending unit and prevent leaks
• Connect the wiring harness to the bullet terminals and flat male plug carefully to avoid damage
• Verify resistance values with a multimeter to confirm proper installation
• Consult the vehicle’s service manual for specific removal and installation procedures

Quality Assurance and Warranty Information

Dorman manufactures this fuel tank sending unit to meet or exceed OEM specifications for fit, form, and function. The part number 692-001 undergoes quality checks to ensure reliable performance in Chevrolet and GMC trucks. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in materials and workmanship. Refer to Dorman’s official warranty policy for complete terms.
