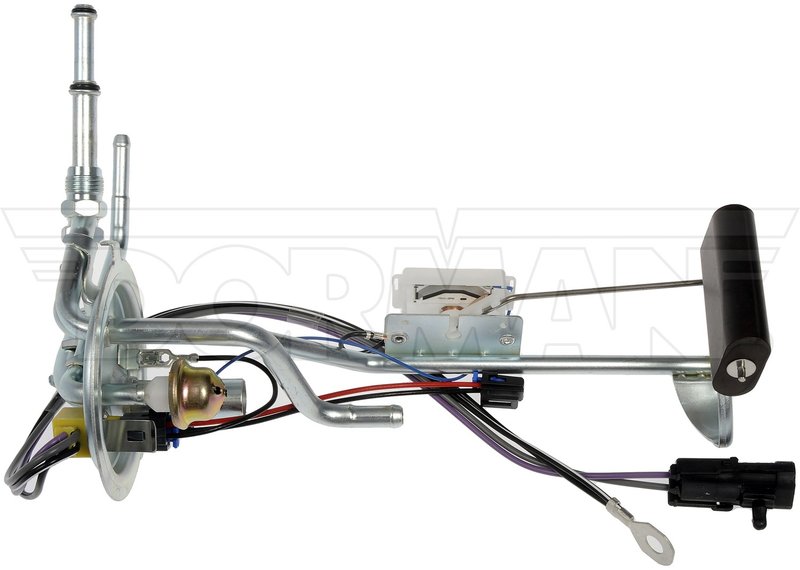

Dorman 692-004 Fuel Tank Sending Unit
| Brand | Dorman 692-004 |
|---|---|
| Fuel Pump Included | No |
| Gasket or Seal Included | Yes |
| Ohms Empty | 0 |
| Ohms Full | 95 |
| Package Contents | Sending Unit; Lock Ring; Gasket |
| Plug/Connector Type | Flat Male |
| Pump Included | No |
| Terminal Quantity | 2 |
| Terminal Type | Bullet |
| Wiring Harness Included | Yes |
| Fits | Chevrolet, GMC, and Oldsmobile · 13 vehicles |
OE-style replacement. Matches the fit and function of the original unit.
Quality materials. Built for reliable performance and durability.
Gasket included. Comes with a seal for a more complete installation.
Cross-references 19179422, 25028845 and FG03A for the same application. See all 3.
Fuel Tank Sending Unit for GM Compact Trucks
Dorman 692-004 is a fuel tank sending unit built to match the fit and function of the original unit on specified applications. It uses quality materials for dependable fuel level signal performance and long-term durability in service.
- Direct replacement fuel tank sending unit for specified GM applications
- Terminal type: bullet; plug/connector type: flat male
- Wiring harness included for easier connection
- Gasket or seal included; package contents include sending unit, lock ring, and gasket
- Fuel pump not included
- Ohms empty: 0; ohms full: 95
Detailed Application Coverage
Compatible with 1992-1994 Chevrolet S10 Blazer, 1992-1994 GMC Jimmy, and 1992-1994 Oldsmobile Bravada. It also fits 1992-1993 Chevrolet S10 and 1992-1993 GMC Sonoma with a 20 gallon tank and harness code (SET, SFT). If you are replacing a worn sender on a Chevrolet S10, GMC Sonoma, or related GM SUV, Dorman 692-004 provides the correct fuel level sending function for the listed vehicles.
This part cross-references OE-style numbers 19179422 and 25028845 for the same application.
Common Problems This Part Addresses
- Inaccurate fuel gauge readings
- Fuel level signal dropouts caused by a worn sender
- Intermittent gauge movement from damaged terminals or wiring connections
- Replacement needs after tank service or sender corrosion
- Restoration of proper fuel level resistance output
Installation Notes
Verify tank configuration before ordering. This sender is specified for 20 gallon tank applications on 1992-1993 Chevrolet S10 and GMC Sonoma with harness code SET, SFT. Confirm the connector style, terminal type, and resistance range match the original unit before installation. The included gasket and lock ring support a proper tank seal when replacing the sender.
Quality Assurance
Dorman engineers this fuel tank sending unit to match original fit and function on the listed applications, using quality materials for reliable performance and durability.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1994 | Chevrolet | S10 Blazer | 4.3L | V6 | N/A | — |
| 1994 | GMC | Jimmy | 4.3L | V6 | N/A | — |
| 1994 | Oldsmobile | Bravada | — | — | N/A | — |
| 1993 | Chevrolet | S10 | — | — | N/A | 20 Gallon Tank; w/Harness Code (SET, SFT) |
| 1993 | Chevrolet | S10 Blazer | 4.3L | V6 | N/A | — |
| 1993 | GMC | Jimmy | 4.3L | V6 | N/A | — |
| 1993 | GMC | Sonoma | — | — | N/A | 20 Gallon Tank; w/Harness Code (SET, SFT) |
| 1993 | Oldsmobile | Bravada | — | — | N/A | — |
| 1992 | Chevrolet | S10 | — | — | N/A | 20 Gallon Tank; w/Harness Code (SET, SFT) |
| 1992 | Chevrolet | S10 Blazer | 4.3L | V6 | N/A | — |
| 1992 | GMC | Jimmy | 4.3L | V6 | N/A | — |
| 1992 | GMC | Sonoma | — | — | N/A | 20 Gallon Tank; w/Harness Code (SET, SFT) |
| 1992 | Oldsmobile | Bravada | 4.3L | V6 | N/A | — |
