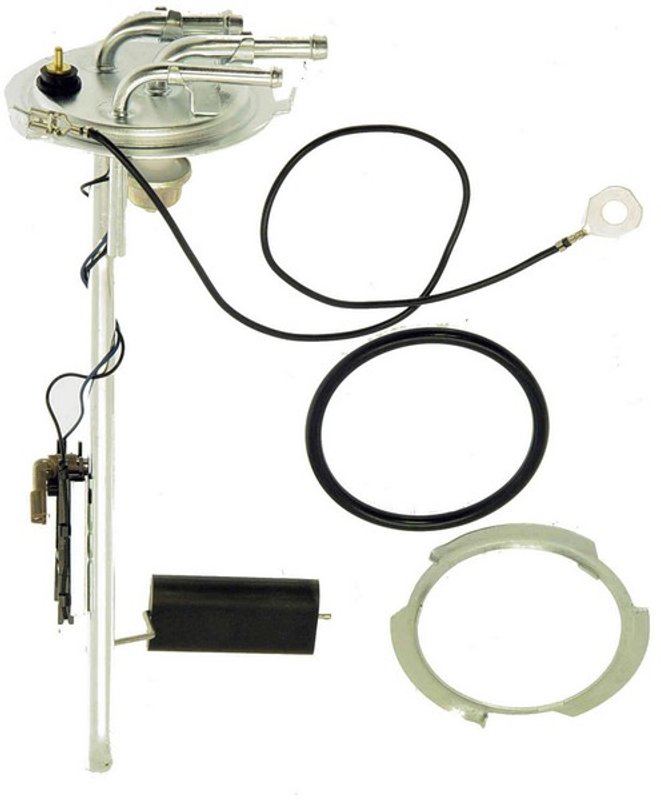

Dorman 692-006 Fuel Tank Sending Unit - Left

Reliable Fuel Tank Sending Unit for Chevrolet and GMC Trucks

The Dorman 692-006 fuel tank sending unit is designed to provide accurate fuel level readings for a range of Chevrolet and GMC truck models. Engineered to meet OEM specifications, this sending unit ensures consistent performance and compatibility with your vehicle's fuel system.

• Terminal Type: Pin with 1 terminal for secure electrical connection
• Includes gasket and lock ring for proper sealing and installation
• Ohms resistance: 0 when empty, 95 when full for precise fuel level measurement
• Plug/Connector Type: Stud for reliable fitment
• Does not include fuel pump or wiring harness, designed as a sending unit replacement only

Product Details and Specifications

This Dorman fuel tank sending unit (part number 692-006) is compatible with Chevrolet and GMC trucks including C10, C20, C30, C1500, C2500, C3500, K10, K20, K30, K1500, K2500, K3500, R20, R30, R2500, R3500, V20, V30, V2500, and V3500 models. The unit features a single pin terminal and a stud-type plug connector, ensuring a secure and stable electrical connection. The included gasket and lock ring help maintain a proper seal to prevent fuel leaks and maintain system integrity. This sending unit does not come with a fuel pump or wiring harness, making it ideal for replacing only the fuel level sensor component.

Common Applications and Issues Addressed

• Corrects inaccurate or fluctuating fuel gauge readings
• Resolves fuel level sensor failures in Chevrolet and GMC trucks
• Prevents fuel leaks with included gasket and lock ring
• Restores proper communication between fuel tank and gauge cluster
• Eliminates electrical connection issues with pin terminal and stud plug design

Installation Notes and Tips

Before installation, ensure the vehicle's battery is disconnected to avoid electrical hazards. Remove the old sending unit carefully to avoid damaging the fuel tank or surrounding components. Use the included gasket and lock ring to secure the new sending unit in place, ensuring a tight seal. Verify the terminal and connector types match your vehicle's wiring harness. After installation, test the fuel gauge for accurate readings before completing the job.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 692-006 fuel tank sending unit undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
