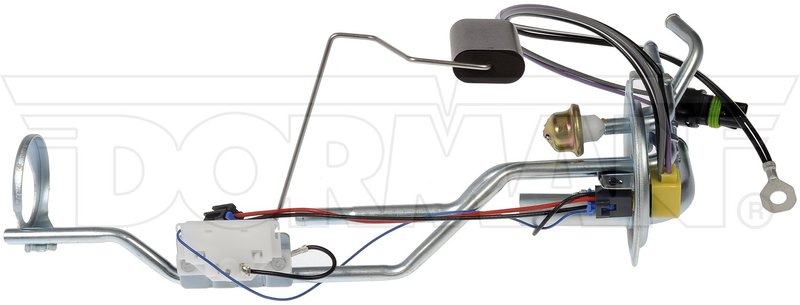

Dorman 692-008 Fuel Tank Sending Unit

Overview of Dorman Fuel Tank Sending Unit 692-008

The Dorman Fuel Tank Sending Unit 692-008 is designed for reliable fuel level measurement in Chevrolet and GMC trucks. Specifically compatible with Chevrolet S10, S15, and GMC Sonoma models, this sending unit ensures accurate fuel gauge readings for your vehicle.

• Terminal Type: Bullet terminals for secure electrical connections
• Terminal Quantity: 2 terminals included
• Wiring Harness Included: Yes, for straightforward installation
• Fuel Pump Included: No, this unit is solely a sending unit
• Gasket or Seal Included: Yes, to prevent leaks and ensure a proper seal
• Ohms Empty: 0 ohms resistance
• Ohms Full: 95 ohms resistance
• Package Contents: Sending unit, lock ring, and gasket included
• Plug/Connector Type: Flat male connector for compatibility

Detailed Product Description

The Dorman 692-008 fuel tank sending unit is engineered to provide precise fuel level readings by measuring resistance changes between 0 ohms (empty) and 95 ohms (full). It features bullet-type terminals with two connection points and includes a wiring harness to facilitate installation. The flat male plug connector ensures compatibility with the factory wiring harnesses found in Chevrolet S10, S15, and GMC Sonoma trucks. This sending unit does not include a fuel pump, focusing solely on fuel level measurement. The included gasket and lock ring help maintain a secure, leak-free seal within the fuel tank.

Compatible Vehicles and Applications

This fuel tank sending unit is compatible with the following vehicles:

• Chevrolet S10
• Chevrolet S15
• GMC Sonoma

Use this part when your vehicle exhibits inaccurate fuel gauge readings or when replacing a faulty sending unit in these specific models.

Common Issues Addressed by This Fuel Tank Sending Unit

• Inaccurate or fluctuating fuel gauge readings
• Fuel gauge stuck on empty or full
• Electrical connection problems due to worn terminals
• Fuel leaks caused by damaged seals or gaskets
• Failure of the sending unit sensor within the fuel tank

Installation Notes and Tips

• Ensure the vehicle is parked on a level surface and the ignition is off before installation
• Use the included gasket and lock ring to secure the sending unit and prevent leaks
• Verify the wiring harness connections match the flat male plug for proper fit
• Handle the sending unit carefully to avoid damaging the float arm or sensor
• Test the fuel gauge after installation to confirm accurate readings

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications for fit and function. The 692-008 fuel tank sending unit undergoes quality checks to ensure durability and reliable performance. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
