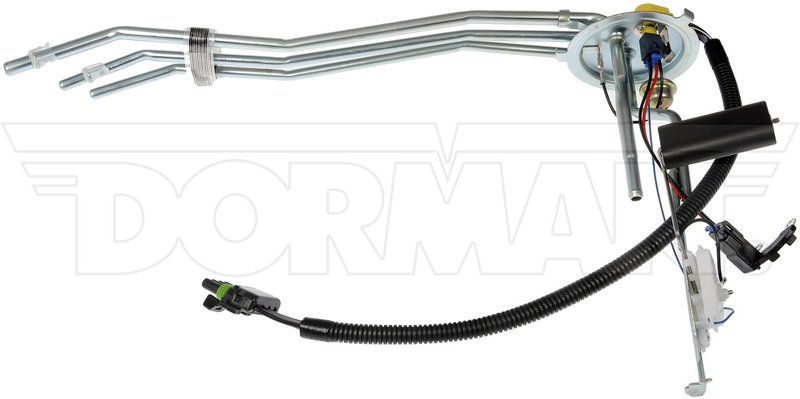

Dorman 692-013 Fuel Tank Sending Unit

Fuel Tank Sending Unit for OE-Style Fuel Level Reporting

Dorman 692-013 is a fuel tank sending unit built to match the fit and function of the original unit on specified applications. It uses quality materials for dependable fuel level signal performance and long-term durability in service.

Key Features

• OE-style replacement fuel tank sending unit
• Bullet terminals with 4-terminal electrical connection
• Wiring harness included for installation on listed applications
• Gasket or seal included with the sending unit
• Fuel pump not included
• Package contents include sending unit, lock ring, and gasket
• Ohm range: 0 ohms empty, 95 ohms full

Detailed Description

This Dorman fuel tank sending unit, part number 692-013, is designed for vehicles that need accurate fuel level input from the tank sender circuit. It is a direct-fit style replacement for select Buick Park Avenue, Buick LeSabre, Oldsmobile 88, Oldsmobile 98, and Pontiac Bonneville applications, including 1991-1995 Buick Park Avenue with harness code CAB or CPZ and 1991-1995 Oldsmobile 98 with harness code CAB or CPZ. This part cross-references 25027568 and FG07F for the same application.

What It Helps Solve

• Inaccurate fuel gauge readings
• Fuel gauge stuck on empty or full
• Intermittent sender signal from worn electrical contacts
• Fuel level reporting issues after tank service
• Replacement needs on select Buick, Oldsmobile, and Pontiac fuel systems

Installation Notes and Tips

Verify harness code and vehicle application before installation. This unit uses bullet terminals and a flat male plug/connector type, so connector style should be matched to the original setup. The included gasket and lock ring support tank reassembly on listed applications. Confirm the sender resistance range of 0 ohms empty and 95 ohms full matches the vehicle’s gauge calibration.

Quality Assurance

Dorman engineers this sending unit to match original fit and function on specified vehicles, using quality materials for reliable operation and durability. Part number 692-013 is built as an OE-style replacement for service work on compatible Buick Park Avenue, Oldsmobile 88, Oldsmobile 98, Pontiac Bonneville, and Buick LeSabre applications.
