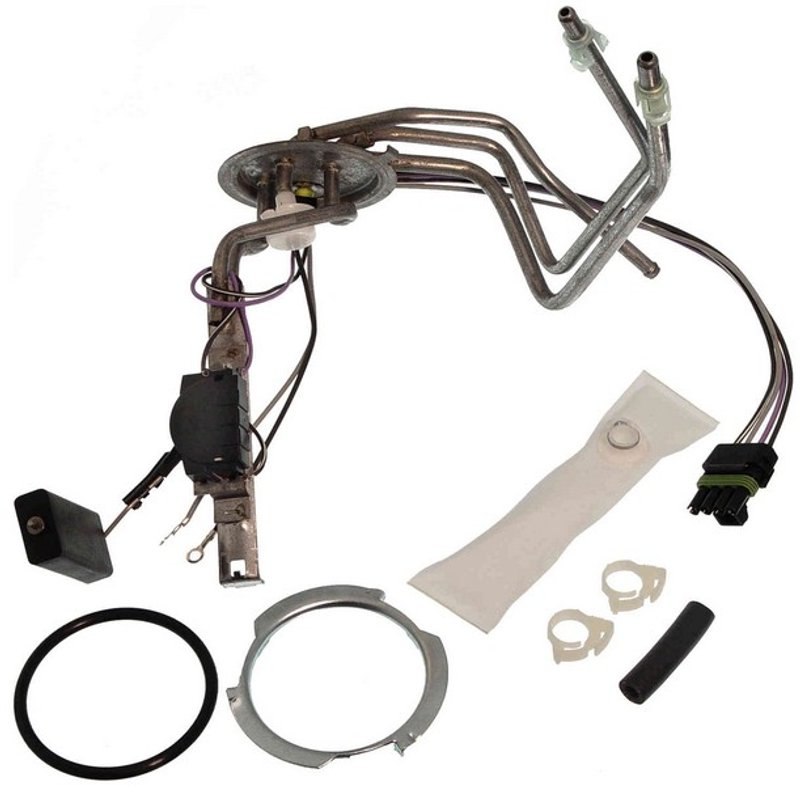

Dorman 692-022 Fuel Tank Sending Unit

Reliable Fuel Tank Sending Unit for Buick, Chevrolet, Oldsmobile, Pontiac

The Dorman 692-022 fuel tank sending unit is designed to provide accurate fuel level readings for select Buick, Chevrolet, Oldsmobile, and Pontiac models. This replacement part ensures proper fuel gauge operation by delivering precise resistance values and includes essential installation components.

• Terminal Type: Bullet terminals for secure electrical connections
• Terminal Quantity: 4 terminals to match factory wiring
• Wiring Harness Included: Yes, for straightforward installation
• Fuel Pump Included: No, this unit is sending unit only
• Gasket or Seal Included: Yes, to prevent leaks and ensure a tight fit
• Ohms Empty: 0 ohms resistance at empty fuel level
• Ohms Full: 95 ohms resistance at full fuel level
• Plug/Connector Type: Flat male connectors compatible with factory wiring
• Package Contents: Sending unit, lock ring, and gasket included

Detailed Description of Dorman 692-022 Fuel Tank Sending Unit

This fuel tank sending unit is engineered to replace the original equipment part in Buick, Chevrolet, Oldsmobile, and Pontiac vehicles, including models such as the Buick Century, Chevrolet Celebrity, Oldsmobile Cutlass Ciera, and Pontiac 6000. The unit features four bullet-type terminals and flat male connectors that ensure compatibility with the vehicle’s wiring harness, which is included for ease of installation. The sending unit provides a resistance range from 0 ohms at empty to 95 ohms at full, allowing the fuel gauge to accurately reflect the fuel level. A gasket and lock ring are included to secure the unit and prevent fuel leaks.

Common Applications and Issues Addressed

• Inaccurate or fluctuating fuel gauge readings
• Fuel gauge stuck on empty or full
• Electrical connection failures due to worn terminals
• Fuel leaks caused by damaged seals or gaskets
• Replacement of faulty sending units in Buick Century, Chevrolet Celebrity, Oldsmobile Cutlass Ciera, and Pontiac 6000

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation
• Use the included gasket and lock ring to secure the sending unit and prevent leaks
• Verify the wiring harness connections match the bullet terminal and flat male plug types
• Handle the sending unit carefully to avoid damaging the float arm or electrical terminals
• Test the fuel gauge operation after installation to confirm proper function

Quality Assurance and Warranty Information

Dorman parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The 692-022 fuel tank sending unit undergoes quality control testing to ensure reliable performance. This part includes a limited warranty against defects in material and workmanship, providing confidence in its durability and compatibility with Buick, Chevrolet, Oldsmobile, and Pontiac vehicles.
