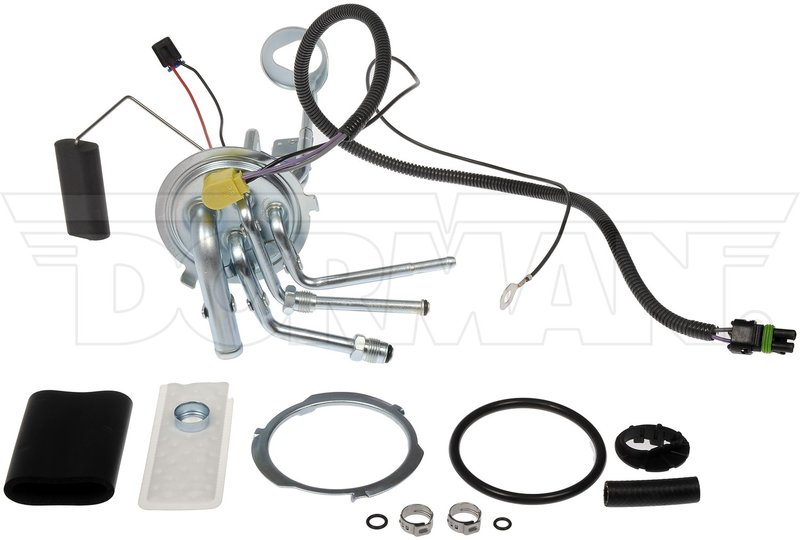

Dorman 692-033 Fuel Tank Sending Unit

Reliable Fuel Tank Sending Unit for Chevrolet and GMC Suburban Models

The Dorman 692-033 Fuel Tank Sending Unit is designed to provide accurate fuel level readings for select Chevrolet and GMC vehicles. Engineered to meet OEM specifications, this sending unit ensures consistent performance and compatibility with your vehicle's fuel system.

• Terminal Type: Bullet terminals for secure electrical connections
• Terminal Quantity: 2 terminals for proper wiring interface
• Wiring Harness Included: Yes, for straightforward installation
• Fuel Pump Included: No, this unit is a sending unit only
• Gasket or Seal Included: Yes, to prevent leaks and ensure a tight fit
• Ohms Empty: 0 ohms resistance indicating an empty tank
• Ohms Full: 95 ohms resistance indicating a full tank
• Plug/Connector Type: Flat male connectors for compatibility
• Package Contents: Sending unit, lock ring, and gasket included

Detailed Description of Dorman 692-033 Fuel Tank Sending Unit

This fuel tank sending unit is specifically designed for Chevrolet and GMC models including Blazer, Jimmy, and a range of Suburban variants such as R10, R20, R1500, R2500, V10, V20, V1500, and V2500. The unit features bullet-type terminals with two connection points, ensuring reliable electrical contact. The included wiring harness simplifies the installation process, while the flat male plug connector matches factory wiring harnesses for seamless integration. The sending unit operates within a resistance range from 0 ohms (empty) to 95 ohms (full), providing accurate fuel level readings to the vehicle’s gauge. A gasket and lock ring are included to secure the unit and prevent fuel leaks.

Common Applications and Issues Addressed

• Inaccurate or fluctuating fuel gauge readings
• Fuel level sensor failure causing dashboard warning lights
• Fuel leaks due to worn or missing seals
• Electrical connection problems affecting fuel gauge operation
• Replacement of damaged or corroded sending units in Chevrolet and GMC Suburban models

Installation Notes and Tips

• Ensure the vehicle’s fuel tank is empty or at a safe level before installation
• Use the included gasket and lock ring to secure the sending unit and prevent leaks
• Verify the bullet terminal connections are clean and properly seated
• Check the wiring harness compatibility with your vehicle’s existing connectors
• Consult the vehicle’s service manual for specific removal and installation procedures

Quality Assurance and Warranty Information

Dorman parts are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The 692-033 Fuel Tank Sending Unit undergoes rigorous quality control to ensure proper fit and function. This part is backed by Dorman’s limited warranty, covering defects in material and workmanship under normal use conditions.
