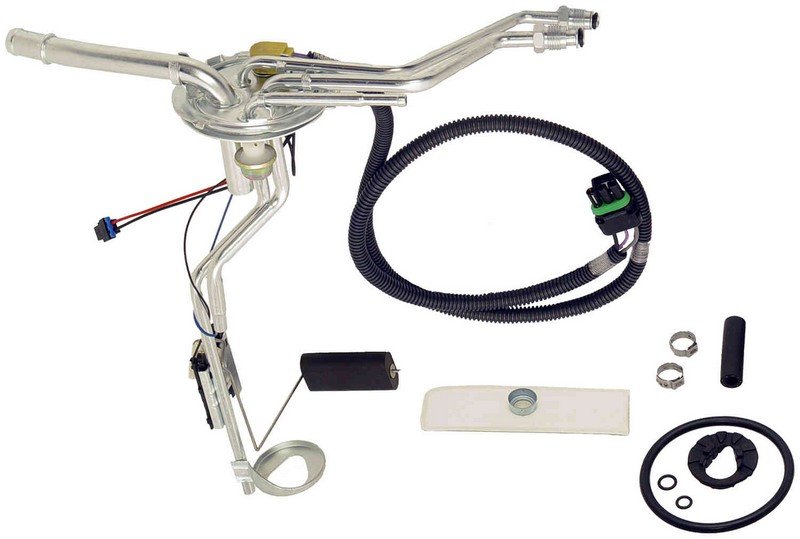

Dorman 692-035 Fuel Tank Sending Unit

Overview of Dorman Fuel Tank Sending Unit 692-035

The Dorman Fuel Tank Sending Unit 692-035 is designed for reliable fuel level measurement in select Chevrolet vehicles. This sending unit is compatible with Chevrolet Express 2500, G10, G20, and G30 models, providing accurate fuel readings through its precise resistance values.

• Terminal Type: Bullet terminals for secure electrical connections
• Terminal Quantity: 3 terminals to support proper wiring
• Wiring Harness Included: Yes, for straightforward installation
• Fuel Pump Included: No, this unit is sending unit only
• Gasket or Seal Included: Yes, ensures a proper seal to prevent leaks
• Ohms Empty: 0 ohms resistance indicating empty tank
• Ohms Full: 95 ohms resistance indicating full tank
• Plug/Connector Type: Flat male connectors for compatibility
• Package Contents: Sending unit, lock ring, and gasket included

Detailed Product Description

The Dorman 692-035 fuel tank sending unit is engineered to provide accurate fuel level readings by utilizing a resistance range from 0 ohms (empty) to 95 ohms (full). It features three bullet-type terminals and flat male connectors, ensuring compatibility with the factory wiring harness. The included wiring harness simplifies installation, while the gasket and lock ring provide a secure and leak-free fitment. This sending unit is specifically designed for Chevrolet Express 2500, G10, G20, and G30 models, making it a direct replacement part that meets OEM specifications.

Common Applications and Issues Addressed

• Inaccurate or fluctuating fuel gauge readings
• Fuel gauge stuck on empty or full
• Electrical connection problems due to worn terminals
• Fuel leaks caused by damaged seals or gaskets
• Replacement of faulty sending units in Chevrolet Express 2500, G10, G20, and G30

Installation Notes and Tips

Before installation, ensure the vehicle’s battery is disconnected to prevent electrical shorts. The included wiring harness and gasket simplify the replacement process. Carefully remove the old sending unit and clean the mounting surface to ensure a proper seal with the new gasket. Align the sending unit correctly and secure it with the lock ring. Verify all electrical connections are tight and free of corrosion. After installation, test the fuel gauge for accurate readings before completing the job.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The 692-035 fuel tank sending unit undergoes quality inspections to maintain consistent resistance values and fitment accuracy. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
