Dorman 692-039 Fuel Tank Sending Unit

Overview of Dorman Fuel Tank Sending Unit 692-039

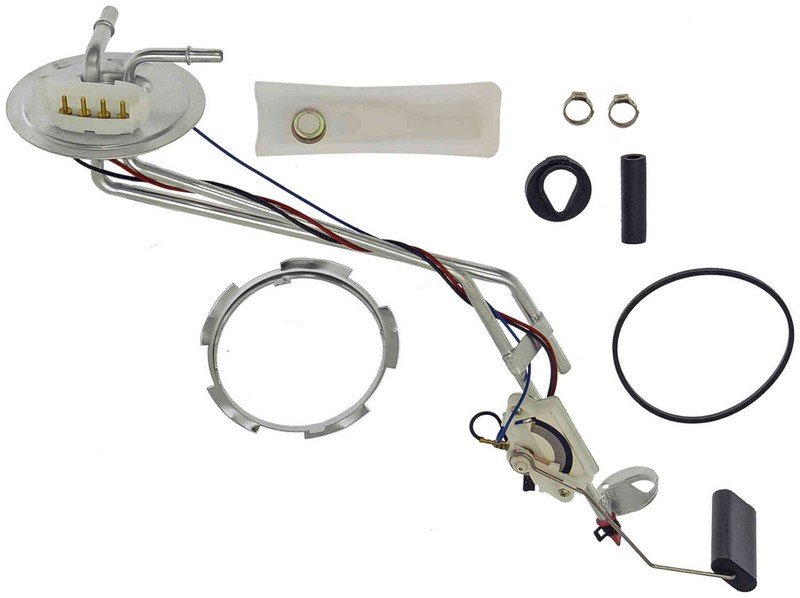

The Dorman Fuel Tank Sending Unit 692-039 is designed specifically for Ford Ranger models, providing accurate fuel level readings. This fuel tank sending unit features a bullet terminal type with four terminals and includes a gasket for proper sealing.

• Compatible with Ford Ranger fuel systems
• Bullet terminal type with 4 terminals for reliable connections
• Includes gasket and lock ring for secure installation
• Flat male plug/connector type for easy wiring
• Ohms resistance: 80 when empty, 10 when full
• Does not include fuel pump or wiring harness

Technical Details and Specifications

The Dorman 692-039 fuel tank sending unit is engineered to provide precise fuel level measurement by varying resistance between 80 ohms (empty) and 10 ohms (full). It features a bullet terminal type with four terminals, ensuring compatibility with the Ford Ranger's electrical system. The flat male plug connector facilitates straightforward integration without the need for additional adapters. Included in the package are the sending unit itself, a lock ring, and a gasket to maintain a proper seal and prevent fuel leaks. Note that this unit does not come with a fuel pump or wiring harness, so those components must be sourced separately if needed.

Compatible Vehicles and Applications

This fuel tank sending unit is compatible with Ford Ranger models, making it a suitable replacement part for maintaining accurate fuel gauge readings. It is ideal for addressing issues related to fuel level inaccuracies or electrical connection problems within the fuel system.

• Inaccurate or fluctuating fuel gauge readings
• Fuel gauge stuck on empty or full
• Electrical connection failures at the fuel tank
• Fuel leaks due to worn or missing gasket
• Replacement of a damaged or faulty sending unit

Installation Notes and Tips

When installing the Dorman 692-039 fuel tank sending unit, ensure the gasket is properly seated to prevent fuel leaks. Disconnect the battery before beginning installation to avoid electrical hazards. Verify the terminal connections match the vehicle’s wiring harness, noting that the wiring harness is not included. Use the included lock ring to secure the sending unit firmly in place. Testing the fuel gauge after installation is recommended to confirm proper operation.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 692-039 fuel tank sending unit undergoes quality inspections to ensure durability and reliable performance. Warranty coverage details can be obtained from the product documentation or Dorman’s official resources.
