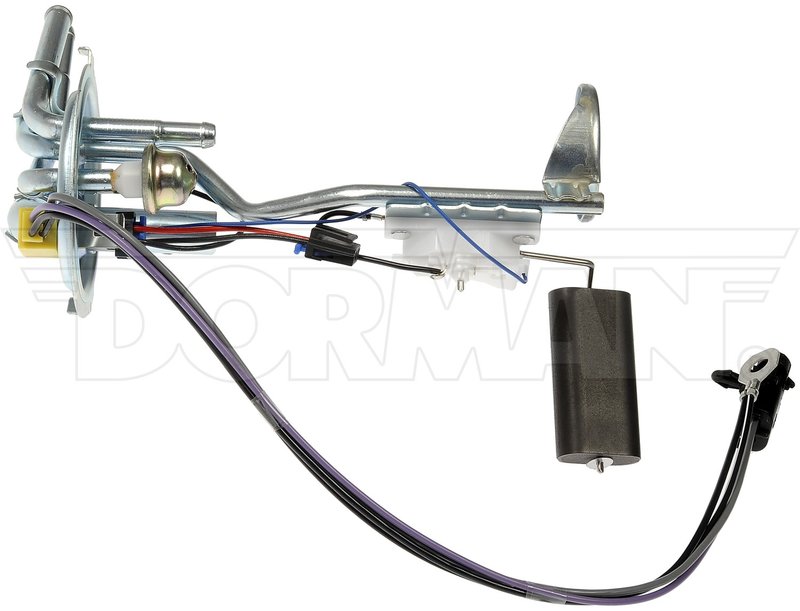

Dorman 692-041 Fuel Tank Sending Unit
| Brand | Dorman 692-041 |
|---|---|
| Fuel Pump Included | No |
| Gasket or Seal Included | Yes |
| Ohms Empty | 0 |
| Ohms Full | 95 |
| Package Contents | Sending Unit; Lock Ring; Gasket |
| Plug/Connector Type | Flat Female |
| Pump Included | No |
| Terminal Quantity | 2 |
| Terminal Type | Bullet |
| Wiring Harness Included | Yes |
| Fits | Chevrolet and GMC · 8 vehicles |
OE-style fit and function. Matches the original unit for straightforward replacement.
Quality materials. Built for reliable performance and durability.
Includes a gasket and lock ring for a complete installation.
Cross-references Delphi HP10002, Spectra Premium FG04A and 19179423 for the same application. See all 4.
Fuel Tank Sending Unit for OE-Style Fuel Level Readings
This Dorman fuel tank sending unit is built to match the fit and function of the original unit on specified applications. For 1985-1987 Chevrolet S10 Blazer and 1985-1987 GMC S15 Jimmy models with 13-gallon fuel tanks, it provides a direct replacement path for restoring fuel level signal accuracy.
Key Features
- Direct replacement fuel tank sending unit for specified applications
- Designed for reliable performance and durability
- Quality materials used in construction
- Includes wiring harness, gasket, and lock ring
- Bullet terminals with 2-terminal design
- Flat female plug/connector type
- Ohms range: 0 empty, 95 full
- Fuel pump not included
Detailed Product Overview
Dorman 692-041 is a fuel tank sending unit engineered to replicate the original unit’s fit and function in the fuel system. It is built for 1985-1987 Chevrolet S10 Blazer and 1985-1987 GMC S15 Jimmy applications with 13-gallon fuel tanks, making it a direct-fit option for restoring accurate fuel gauge operation. The unit uses bullet terminals, a flat female connector, and a 0-to-95 ohm resistance range to match the expected signal profile for the vehicle’s fuel level circuit. This part cross-references Delphi HP10002 for the same application.
Common Problems This Part Can Help Solve
- Inaccurate fuel gauge readings
- Fuel gauge stuck on empty or full
- Intermittent fuel level signal
- Worn or corroded sending unit contacts
- Fuel tank service needs on aging S10 Blazer and S15 Jimmy models
Installation Notes and Tips
Verify tank capacity before ordering; this part is listed for 13-gallon fuel tanks only. Confirm connector style, terminal type, and resistance range against the original unit before installation. The package includes the sending unit, lock ring, and gasket, and the wiring harness is included. Fuel pump is not included.
Quality Assurance
Dorman designs this sending unit to match original fit and function and uses quality materials for dependable service. Part number 692-041 is built for direct replacement use in the specified Chevrolet S10 Blazer and GMC S15 Jimmy fuel system applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1987 | Chevrolet | S10 Blazer | — | — | N/A | Compatible with 13-gallon fuel tanks. |
| 1987 | GMC | S15 Jimmy | — | — | N/A | Compatible with 13-gallon fuel tanks. |
| 1986 | Chevrolet | S10 Blazer | — | — | N/A | Compatible with 13-gallon fuel tanks. |
| 1986 | GMC | S15 Jimmy | — | — | N/A | Compatible with 13-gallon fuel tanks. |
| 1985 | Chevrolet | S10 Blazer | 2.5L | L4 | N/A | Compatible with 13-gallon fuel tanks. |
| 1985 | Chevrolet | S10 Blazer | 2.8L | V6 | N/A | Compatible with 13-gallon fuel tanks. |
| 1985 | GMC | S15 Jimmy | 2.5L | L4 | N/A | Compatible with 13-gallon fuel tanks. |
| 1985 | GMC | S15 Jimmy | 2.8L | V6 | N/A | Compatible with 13-gallon fuel tanks. |
