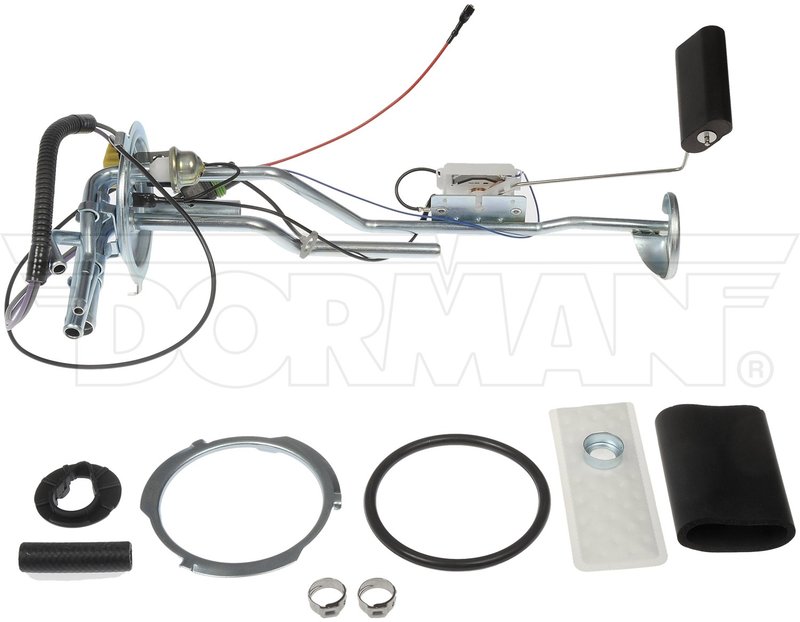

Dorman 692-045 Fuel Tank Sending Unit

Reliable Fuel Tank Sending Unit for Chevrolet S10 and GMC S15

The Dorman 692-045 Fuel Tank Sending Unit is designed to provide accurate fuel level readings for Chevrolet S10 and GMC S15 models. This replacement part ensures proper fuel gauge operation by delivering consistent electrical signals to your vehicle's dashboard.

• Compatible with Chevrolet S10 and GMC S15 fuel systems
• Includes sending unit, lock ring, and gasket for secure installation
• Features two bullet-type terminals with flat male connectors
• Wiring harness included for straightforward connection
• Ohms rating: 0 when empty and 95 when full for precise fuel level measurement
• Fuel pump not included, designed specifically as a sending unit

Product Details and Specifications

The Dorman 692-045 Fuel Tank Sending Unit is engineered to replace the original equipment sending unit in Chevrolet S10 and GMC S15 trucks. It features two bullet-type terminals and a flat male plug/connector type, ensuring compatibility with the vehicle's existing wiring harness, which is included in the package. The unit comes with a lock ring and gasket to maintain a secure and leak-free seal within the fuel tank. The resistance values range from 0 ohms at empty to 95 ohms at full, providing accurate fuel level readings to the dashboard gauge. Note that this product does not include a fuel pump and is intended solely as a sending unit.

Common Applications and Issues Addressed

• Inaccurate or fluctuating fuel gauge readings in Chevrolet S10 and GMC S15
• Fuel gauge stuck on empty or full despite fuel level changes
• Fuel sending unit failure causing dashboard fuel level errors
• Leaking or damaged sending unit gasket leading to fuel tank contamination
• Electrical connection problems due to worn or corroded terminals

Installation Notes and Tips

Before installation, ensure the vehicle's battery is disconnected to prevent electrical hazards. The included wiring harness simplifies the connection process, but verify that the bullet terminals and flat male connectors align properly with the vehicle's wiring. Replace the gasket and lock ring securely to prevent fuel leaks. It is recommended to inspect the fuel tank opening for debris or corrosion before installing the sending unit. Professional installation is advised if unfamiliar with fuel system components.

Quality Assurance and Warranty Information

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 692-045 Fuel Tank Sending Unit undergoes quality checks to ensure reliable performance in Chevrolet S10 and GMC S15 vehicles. Warranty coverage details can be obtained from the product documentation or manufacturer, providing assurance of product durability and support.
