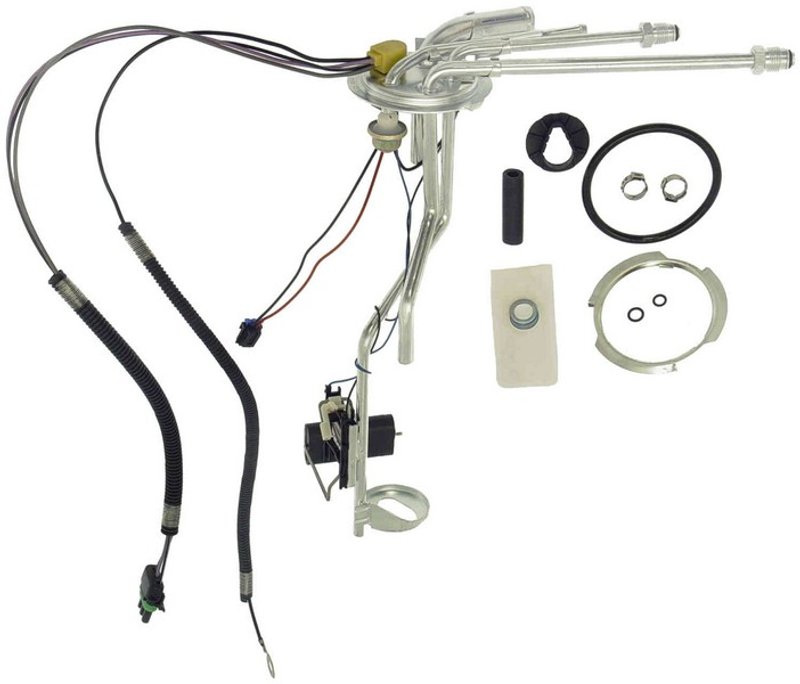

Dorman 692-055 Fuel Tank Sending Unit

Dorman 692-055 Fuel Tank Sending Unit

This Dorman fuel tank sending unit is built for specified Chevrolet and GMC truck applications where accurate fuel level reporting matters. It matches the original unit’s fit and function for the listed vehicles and uses quality materials for dependable operation.

• Direct replacement fuel tank sending unit for specified applications
• Bullet terminal type with 3 terminals
• Wiring harness included
• Gasket or seal included
• Fuel pump not included
• Package contents: sending unit, lock ring, and gasket
• Ohms empty: 0; ohms full: 95

Fitment for Chevrolet and GMC Trucks

• Fits 1995 Chevrolet C35, N/A, 31 gallon tank; w/4 outlets; w/high temperature fuel sender
• Fits 1990-1995 Chevrolet C3500, N/A, 31 gallon tank; w/4 outlets; w/high temperature fuel sender
• Fits 1990-1995 Chevrolet K3500, N/A, 31 gallon tank; w/4 outlets; w/high temperature fuel sender
• Fits 1990-1995 GMC C3500, N/A, 31 gallon tank; w/4 outlets; w/high temperature fuel sender
• Fits 1990-1995 GMC K3500, N/A, 31 gallon tank; w/4 outlets; w/high temperature fuel sender

Detailed Description

Dorman 692-055 is a fuel tank sending unit for Chevrolet C35, Chevrolet C3500, Chevrolet K3500, GMC C3500, and GMC K3500 truck applications with a 31 gallon tank, four outlets, and a high temperature fuel sender setup. It is designed to restore fuel level signal output using the specified 0 ohms empty and 95 ohms full range, and it includes the wiring harness, gasket, and lock ring needed for the listed configuration. This part cross-references Delphi HP10022 and Spectra Premium FG12E for the same application.

Common Problems This Part Can Address

• Inaccurate fuel gauge readings
• Fuel gauge stuck on empty or full
• Intermittent sender signal from worn internal contacts
• Electrical connection issues at the tank sender
• Replacement needs after corrosion or heat-related sender wear

Installation Notes and Tips

Verify tank size, outlet count, and sender style before installation. Confirm the connector style, terminal count, and ohm range match the original unit on the vehicle. Clean the tank sealing surface and inspect the wiring path before installing the new sending unit, gasket, and lock ring.

Quality Assurance

Dorman engineers this sending unit to match the original fit and function on the listed Chevrolet and GMC truck applications, using quality materials for reliable performance and durability.
