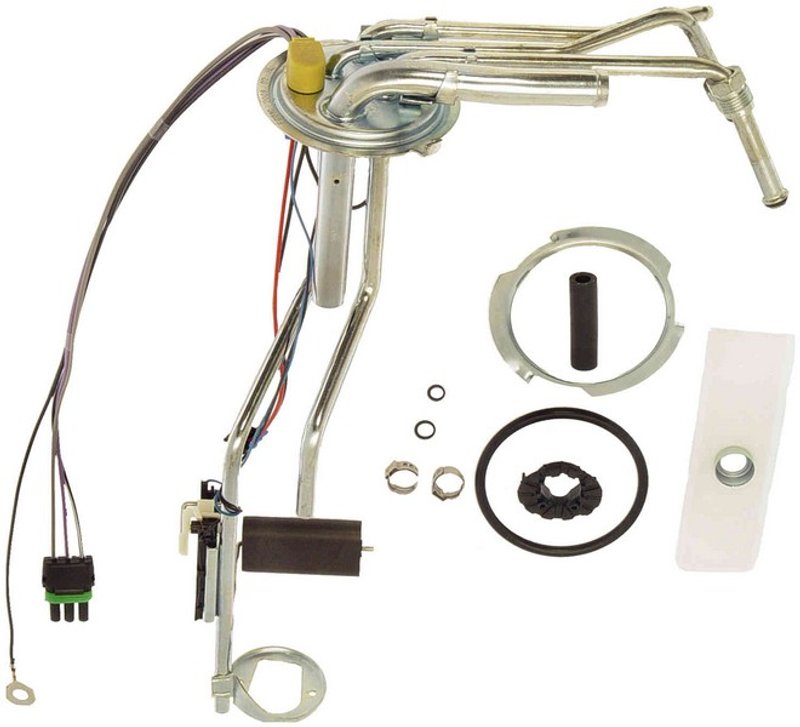

Dorman 692-074 Fuel Tank Sending Unit

Fuel Tank Sending Unit for GM Trucks

Dorman 692-074 is a fuel tank sending unit built to match the fit and function of the original unit on specified Chevrolet and GMC applications. It uses quality materials for dependable fuel level signal performance in the tank, with the wiring harness, gasket, and lock ring included for a cleaner replacement job.

• Direct replacement fuel tank sending unit for selected Chevrolet C1500, C2500, C3500, K1500, K2500, and K3500 models
• Also fits selected GMC C1500, C2500, C3500, K1500, K2500, and K3500 trucks
• Bullet terminals with 3-terminal design
• Flat male plug/connector type with included wiring harness
• Fuel level resistance range: 0 ohms empty, 95 ohms full
• Gasket or seal included; package contents include sending unit, lock ring, and gasket
• Fuel pump not included

Fitment Details

Compatible with 1991, 1993, 1994-1995, 1996, 1997, 1999, and 2000 Chevrolet and GMC truck applications listed below. Dorman 692-074 is a direct-fit option for main tank and harness-code-specific configurations on these GM platforms.

• Fits 2000 Chevrolet C3500, Main Tank; w/4 Outlets; w/Harness Code (VCD, VCE, VPN, VRY, VRZ)
• Fits 1999 Chevrolet C3500, w/4 Outlets; w/Harness Code (VCD, VCE, VPN, VRY, VRZ); w/Harness Code (VCD, VPN, VRY, VRZ); wo/High Temperature Fuel Sender
• Fits 1997 Chevrolet C1500, C2500, C3500, K1500, K2500, K3500, w/4 Outlets; w/Harness Code (VCD, VCE, VPN, VRY, VRZ)
• Fits 1996 Chevrolet C1500, C2500, K1500, K2500, K3500, Main Tank; w/4 Outlets; w/Harness Code (VCD, VCE, VPN, VRY, VRZ)
• Fits 1996 GMC C1500, C2500, C3500, K1500, K2500, K3500, Main Tank; w/4 Outlets; w/Harness Code (VCD, VCE, VPN, VRY, VRZ)
• Fits 1994-1995 Chevrolet C1500, C2500, C3500, K1500, K2500, K3500, w/4 Outlets; w/Harness Code (VCD, VPN, VRY, VRZ); wo/High Temperature Fuel Sender
• Fits 1994-1995 GMC C1500, C2500, C3500, K1500, K2500, K3500, w/4 Outlets; w/Harness Code (VCD, VPN, VRY, VRZ); wo/High Temperature Fuel Sender
• Fits 1994 GMC C3500, w/4 Outlets; w/Harness Code (VCD, VCE, VPN, VRY, VRZ); w/Harness Code (VCD, VPN, VRY, VRZ); wo/High Temperature Fuel Sender
• Fits 1993 GMC C3500, Main Tank; w/4 Outlets; w/Harness Code (VCD, VCE, VPN, VRY, VRZ)
• Fits 1991 GMC C3500, w/4 Outlets; w/Harness Code (VCD, VCE, VPN, VRY, VRZ); w/Harness Code (VCD, VPN, VRY, VRZ); wo/High Temperature Fuel Sender

What This Part Helps Fix

• Inaccurate fuel gauge readings on Chevrolet C3500 and GMC C3500 trucks
• Fuel level sender signal loss caused by worn internal contacts
• Intermittent gauge movement or erratic needle behavior
• Replacement needs after corrosion or connector wear at the tank
• Service issues on main tank applications with 4-outlet fuel system layouts

Installation Notes and Tips

Verify harness code, outlet count, and tank configuration before ordering. This Dorman 692-074 sending unit uses bullet terminals and a flat male connector, so matching the existing electrical connection is important for proper installation. The included gasket and lock ring support a complete tank-side service, and the fuel pump is not part of this assembly.

Quality Assurance

Dorman engineers this fuel tank sending unit to match original fit and function on the listed Chevrolet and GMC applications. It is built from quality materials for reliable operation and durability in fuel system service. Cross-reference part numbers include Delphi HP10001 and Spectra Premium FG01C for the same application.
