Dorman 692-077 Fuel Tank Sending Unit

Dorman 692-077 Fuel Tank Sending Unit

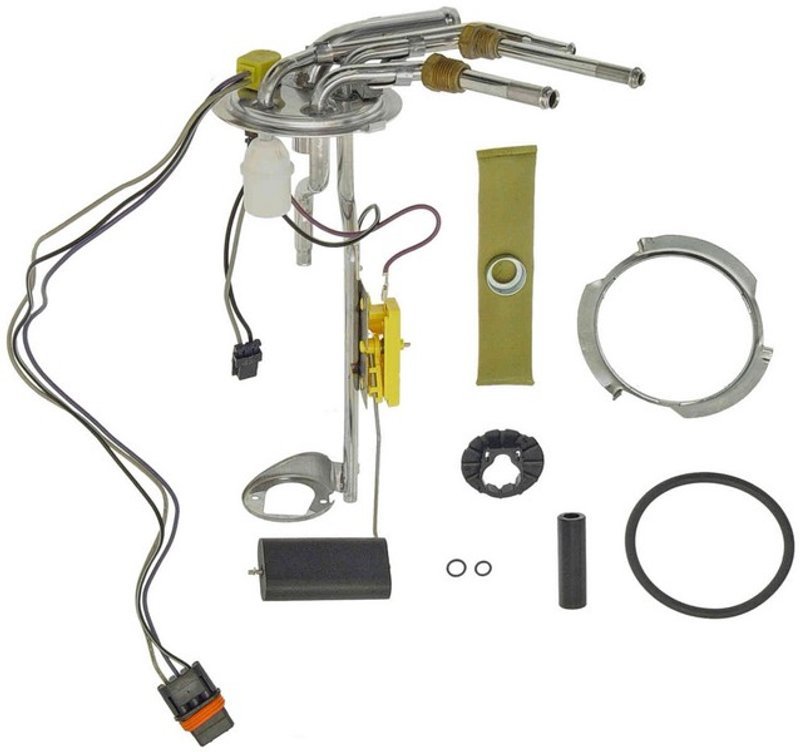

Dorman 692-077 is a fuel tank sending unit built to match the fit and function of the original unit on specified applications. It uses quality materials for dependable fuel level signal performance and long-term durability in 1995 Chevrolet Blazer and 1995 GMC Jimmy applications with harness code SFG.

• Direct-fit fuel tank sending unit for specified OE applications
• Terminal type: bullet
• 3-terminal design with flat male plug/connector type
• Wiring harness included for easier replacement
• Gasket or seal included
• Fuel pump not included
• Ohms empty: 0; ohms full: 95
• Package contents: sending unit, lock ring, gasket

Detailed Application Coverage

This fuel tank sending unit is a practical replacement for vehicles that need accurate fuel level reporting from the tank to the gauge. It is engineered for 1995 Chevrolet Blazer and 1995 GMC Jimmy models with harness code SFG, and the Dorman 692-077 configuration is built around the original unit’s fit and function requirements. This part cross-references 25029911 and FG03F for the same application.

Common Problems It Can Address

• Inaccurate fuel gauge readings
• Fuel level signal dropouts
• Hard-to-diagnose sender circuit faults
• Replacement needs after tank service
• Wear-related sender performance issues

Installation Notes and Tips

Confirm harness code SFG before ordering. Verify the connector style, terminal count, and sender resistance range match the original unit before installation. The included gasket and lock ring support a proper tank seal during replacement, and the wiring harness is included with the assembly. Dorman 692-077 does not include a fuel pump.

Quality Assurance

Dorman designs this sending unit to match original fit and function on the listed applications, using quality materials for reliable operation and durability.
