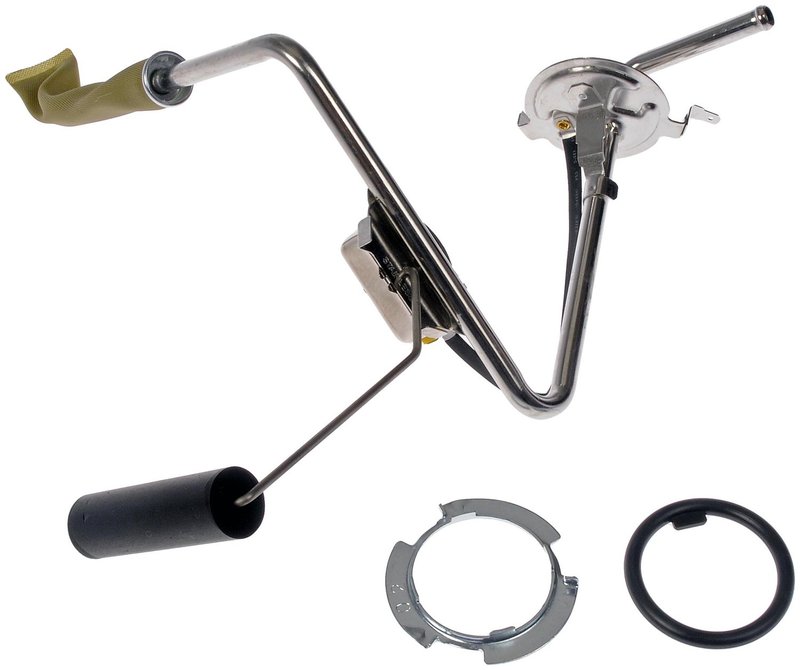

Dorman 692-090 Fuel Tank Sending Unit

Overview of Dorman Fuel Tank Sending Unit 692-090

The Dorman 692-090 fuel tank sending unit is designed specifically for Chevrolet Corvette models, providing accurate fuel level readings. This fuel sender features a pin terminal type and includes a gasket for proper sealing, ensuring reliable performance in your vehicle's fuel system.

• Compatible with Chevrolet Corvette fuel systems
• Pin terminal type with one terminal for secure connection
• Includes gasket or seal for leak prevention
• Ohms rating: 0 when empty, 95 when full for precise fuel level measurement
• Stud-type plug/connector for easy installation
• Does not include fuel pump or wiring harness

Detailed Product Description

The Dorman 692-090 fuel tank sending unit is engineered to deliver consistent and accurate fuel level data to the dashboard gauge in Chevrolet Corvette vehicles. Featuring a single pin terminal and a stud-type connector, this unit ensures a straightforward electrical connection. The included gasket or seal helps maintain a secure fit and prevents fuel leaks, which is critical for safety and performance. With an ohms range from 0 (empty) to 95 (full), this sending unit provides reliable resistance values that correspond to the fuel level, allowing the fuel gauge to display accurate readings.

Common Applications and Issues Addressed

• Resolves inaccurate or fluctuating fuel gauge readings in Chevrolet Corvette models
• Replaces faulty or damaged fuel tank sending units causing incorrect fuel level display
• Prevents fuel leaks with included gasket or seal
• Addresses electrical connection issues related to terminal or connector wear
• Supports maintenance of fuel system integrity without replacing the fuel pump

Installation Notes and Tips

• Ensure vehicle compatibility with Chevrolet Corvette before installation
• Disconnect the battery prior to installation to avoid electrical hazards
• Carefully remove the old sending unit and clean the mounting surface before installing the new gasket
• Verify the pin terminal and stud connector are securely attached to prevent signal loss
• Test the fuel gauge operation after installation to confirm proper function

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The 692-090 fuel tank sending unit undergoes rigorous quality control to ensure durability and reliable performance in Chevrolet Corvette vehicles. This part includes a gasket for proper sealing and is backed by Dorman's standard warranty coverage, providing confidence in your replacement component.
