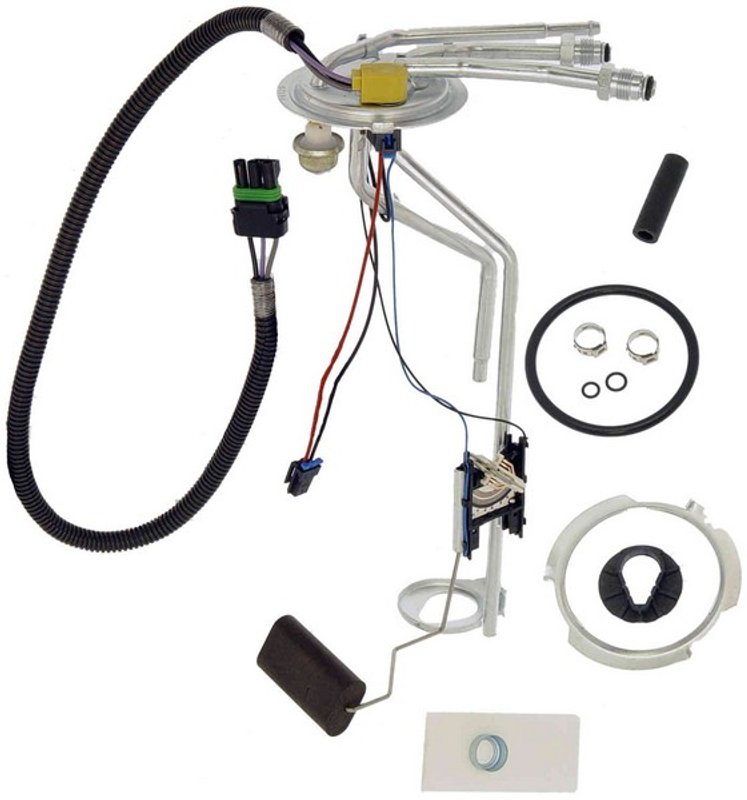

Dorman 692-094 Fuel Tank Sending Unit
| Brand | Dorman 692-094 |
|---|---|
| Fuel Pump Included | No |
| Gasket or Seal Included | Yes |
| Ohms Empty | 0 |
| Ohms Full | 95 |
| Package Contents | Sending Unit; Lock Ring; Gasket |
| Plug/Connector Type | Flat Male |
| Pump Included | No |
| Terminal Quantity | 3 |
| Terminal Type | Bullet |
| Wiring Harness Included | Yes |
| Fits | Chevrolet and GMC · 12 vehicles |
OE-style fit and function. Matches the original unit for straightforward replacement.
Quality materials. Built for reliable performance and durability.
Gasket included. Comes with a seal and lock ring for installation.
Cross-references 25094633, FG12S and FLS1066 for the same application. See all 3.
Dorman 692-094 Fuel Tank Sending Unit
Dorman 692-094 is a fuel tank sending unit built to match the fit and function of the original unit on specified applications. It is made from quality materials for reliable fuel level signal performance and long-term durability in service.
- Fuel tank sending unit for air and fuel delivery systems
- 3-terminal design with bullet terminals and flat male plug/connector type
- Wiring harness included for a cleaner replacement setup
- Gasket or seal included, along with lock ring and sending unit
- Fuel pump not included
- Ohms empty: 0; ohms full: 95
- Direct replacement for select Chevrolet P30 and GMC P3500 applications
Detailed Product Overview
This Dorman fuel tank sending unit, part number 692-094, is designed for accurate fuel level reporting in the tank. It uses a 3-terminal layout with bullet terminals and a flat male connector, and it includes the wiring harness, gasket, and lock ring needed for the sending unit assembly. For buyers searching for a Chevrolet P30 fuel tank sending unit or a GMC P3500 fuel level sender, 692-094 provides the OE-style fit and function expected for these applications.
This part cross-references FG12S for the same application.
Vehicle Fitment
- Fits 1990-1995 Chevrolet P30, N/A; Exc. School Bus; 40 Gallon Tank
- Fits 1990-1995 GMC P3500, N/A; Exc. School Bus; 40 Gallon Tank
Common Issues This Part Can Address
- Inaccurate fuel gauge readings
- Fuel level signal loss from a worn sender
- Intermittent gauge movement caused by damaged terminals or wiring
- Replacement needs after corrosion or internal sender wear
- Service work on select Chevrolet P30 and GMC P3500 fuel tanks
Installation Notes and Tips
Verify tank configuration before ordering, since this part is listed for 40 gallon tank applications and excludes school bus models. Confirm connector style, terminal count, and resistance range before installation. Replace the gasket and lock ring during service to help maintain a proper seal at the tank opening.
Quality Assurance
Dorman engineers this sending unit to match original fit and function on the listed vehicles, using quality materials for dependable operation and durability.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1995 | Chevrolet | P30 | 5.7L | V8 | — | N/A | Exc. School Bus; 40 Gallon Tank |
| 1995 | GMC | P3500 | 5.7L | V8 | — | N/A | Exc. School Bus; 40 Gallon Tank |
| 1994 | Chevrolet | P30 | 5.7L | V8 | — | N/A | Exc. School Bus; 40 Gallon Tank |
| 1994 | GMC | P3500 | 5.7L | V8 | — | N/A | Exc. School Bus; 40 Gallon Tank |
| 1993 | Chevrolet | P30 | — | — | GAS | N/A | Exc. School Bus; 40 Gallon Tank |
| 1993 | GMC | P3500 | — | — | GAS | N/A | Exc. School Bus; 40 Gallon Tank |
| 1992 | Chevrolet | P30 | — | — | GAS | N/A | Exc. School Bus; 40 Gallon Tank |
| 1992 | GMC | P3500 | — | — | GAS | N/A | Exc. School Bus; 40 Gallon Tank |
| 1991 | Chevrolet | P30 | — | — | GAS | N/A | Exc. School Bus; 40 Gallon Tank |
| 1991 | GMC | P3500 | — | — | GAS | N/A | Exc. School Bus; 40 Gallon Tank |
| 1990 | Chevrolet | P30 | — | — | GAS | N/A | Exc. School Bus; 40 Gallon Tank |
| 1990 | GMC | P3500 | — | — | GAS | N/A | Exc. School Bus; 40 Gallon Tank |
