Dorman 692-111 Fuel Tank Sending Unit

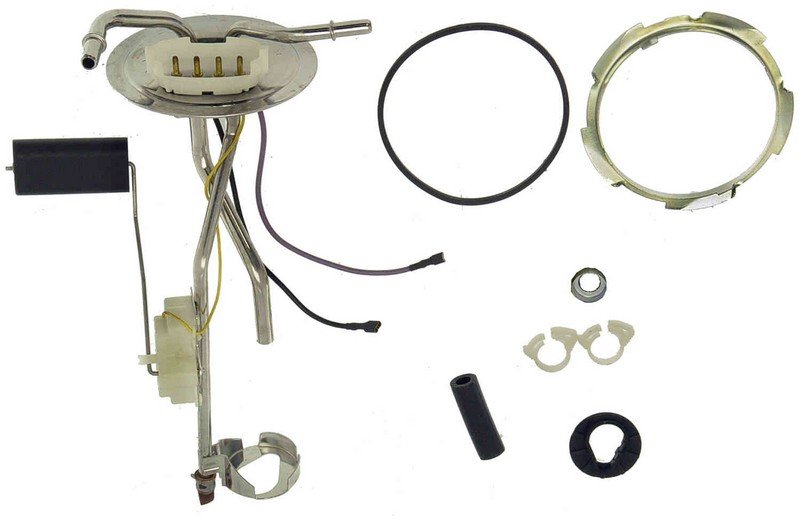

Overview of the Dorman 692-111 Fuel Tank Sending Unit

The Dorman 692-111 Fuel Tank Sending Unit is designed specifically for Ford Ranger models, providing accurate fuel level readings to ensure reliable vehicle operation. This component is essential for maintaining proper fuel gauge functionality in your Ford Ranger.

• Compatible with Ford Ranger fuel systems
• Includes sending unit, lock ring, and gasket for secure installation
• Features 4 bullet-type terminals with flat male connectors
• Ohm resistance ranges from 80 (empty) to 10 (full) for precise fuel level measurement
• Does not include fuel pump or wiring harness

Technical Details and Specifications

The Dorman 692-111 Fuel Tank Sending Unit is engineered with four bullet-type terminals and flat male plug connectors, ensuring a secure and reliable electrical connection. The unit comes with a gasket and lock ring to provide a proper seal and prevent fuel leaks. The resistance values range from 80 ohms when the tank is empty to 10 ohms when full, allowing the fuel gauge to accurately reflect the fuel level. This sending unit is designed exclusively for Ford Ranger models, ensuring compatibility and optimal performance.

Applications and Problem Resolution

This fuel tank sending unit is used to monitor fuel levels and transmit this information to the vehicle’s fuel gauge. It addresses several common issues, including:

• Inaccurate or fluctuating fuel gauge readings
• Fuel gauge stuck on empty or full
• Intermittent fuel level display problems
• Fuel leaks due to worn or missing gaskets
• Electrical connection failures from damaged terminals

Installation Notes and Tips

When installing the Dorman 692-111 Fuel Tank Sending Unit, ensure the gasket is properly seated to prevent leaks. The unit requires no wiring harness, so connect the four bullet terminals to the existing vehicle wiring using the flat male connectors. Verify ohm resistance values with a multimeter before and after installation to confirm proper operation. This part is designed for direct replacement in Ford Ranger fuel tanks, but always consult the vehicle’s service manual for specific instructions.

Quality Assurance and Warranty Information

Dorman parts are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The 692-111 Fuel Tank Sending Unit includes a gasket and lock ring to ensure a secure fit and long-lasting seal. While specific warranty details may vary, Dorman typically offers limited warranties covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
