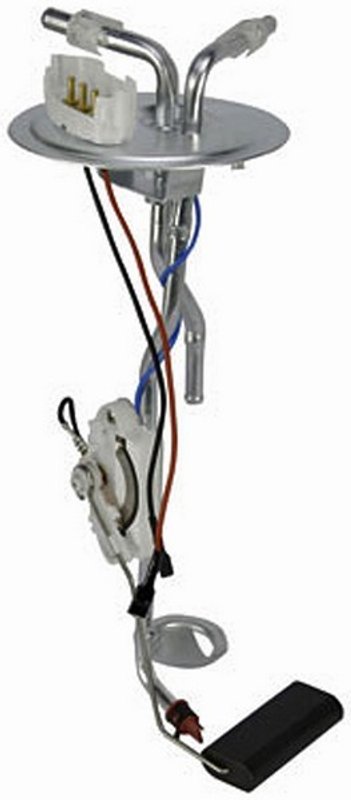

Dorman 692-112 Fuel Tank Sending Unit

Overview of the Dorman 692-112 Fuel Tank Sending Unit

The Dorman 692-112 Fuel Tank Sending Unit is designed for reliable fuel level measurement in select Ford and Mazda trucks. This component is engineered to provide accurate readings for models including the Ford Ranger and Mazda B-series trucks.

• Compatible with Ford Ranger, Mazda B2300, B3000, and B4000 models
• Features 4 bullet-type terminals for secure electrical connections
• Includes a gasket or seal to ensure a proper fit and prevent leaks
• Flat male plug/connector type for straightforward installation
• Does not include a fuel pump or wiring harness

Detailed Product Description

The Dorman 692-112 Fuel Tank Sending Unit is a universal replacement part designed to fit specific Ford and Mazda trucks such as the Ford Ranger and Mazda B2300, B3000, and B4000. It features four bullet terminals that provide a reliable electrical connection to the vehicle’s fuel gauge system. The unit comes with a gasket or seal to maintain a secure and leak-free installation. This sending unit uses a flat male plug/connector type, which simplifies the wiring process during replacement. Note that this part does not include a fuel pump or wiring harness, so those components must be sourced separately if needed.

Common Applications and Issues Addressed

• Resolves inaccurate or fluctuating fuel gauge readings
• Replaces faulty or damaged fuel tank sending units in Ford Ranger and Mazda B-series trucks
• Prevents fuel leaks with included gasket or seal
• Restores proper electrical connection with bullet terminal design
• Addresses issues related to fuel level sensor failure

Installation Notes and Tips

• Ensure vehicle compatibility with Ford Ranger or Mazda B2300, B3000, B4000 before installation
• Disconnect the battery before beginning installation to avoid electrical hazards
• Use the included gasket or seal to prevent fuel leaks during installation
• Verify the flat male plug/connector matches the vehicle’s wiring harness
• Check terminal connections for corrosion or damage and clean if necessary

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 692-112 Fuel Tank Sending Unit undergoes rigorous quality control to ensure durability and reliable performance. This part includes a gasket or seal to maintain proper installation integrity. Warranty coverage details can be obtained from the product documentation or the manufacturer’s website.
