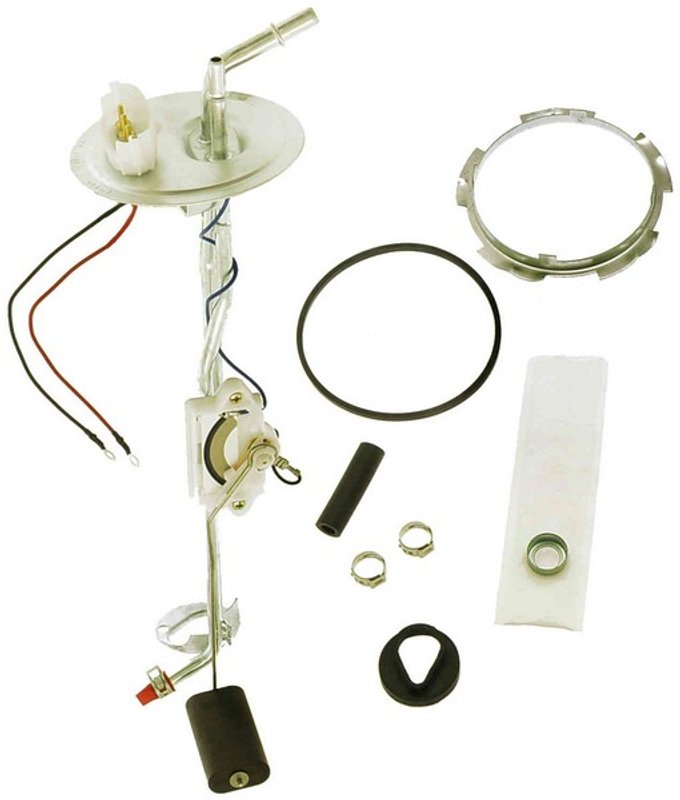

Dorman 692-113 Fuel Tank Sending Unit

Overview of Dorman Fuel Tank Sending Unit 692-113

The Dorman 692-113 fuel tank sending unit is designed specifically for Ford Bronco II models, providing accurate fuel level readings. This component is essential for maintaining reliable fuel gauge performance in your vehicle.

• Compatible with Ford Bronco II fuel systems
• Terminal type: Bullet with 4 terminals for secure connections
• Includes gasket and lock ring for proper sealing
• Flat male plug/connector type for straightforward installation
• Ohms resistance: 80 when empty, 10 when full for precise fuel level measurement
• Does not include fuel pump or wiring harness

Detailed Product Description

The Dorman 692-113 fuel tank sending unit is engineered to replace the original sending unit in Ford Bronco II vehicles. Featuring a bullet terminal type with four terminals, it ensures a reliable electrical connection to the vehicle’s fuel gauge system. The included gasket and lock ring help maintain a secure and leak-free installation. This sending unit operates with a resistance range of 80 ohms when the tank is empty and 10 ohms when full, providing accurate fuel level readings to the dashboard gauge. The flat male plug connector type simplifies wiring compatibility during replacement. Note that this unit does not include a fuel pump or wiring harness, focusing solely on fuel level sensing functionality.

Common Applications and Issues Addressed

• Inaccurate or fluctuating fuel gauge readings in Ford Bronco II
• Fuel gauge stuck on empty or full despite fuel level changes
• Fuel sending unit failure causing dashboard fuel warning lights
• Leaks or poor sealing around the fuel tank sending unit
• Electrical connection problems due to worn or damaged terminals

Installation Notes and Tips

• Ensure the vehicle is parked on a level surface and the ignition is off before installation
• Use the included gasket and lock ring to prevent fuel leaks
• Verify the bullet terminal connections are clean and secure for proper signal transmission
• Do not attempt to install a fuel pump with this unit as it is not included
• Consult the Ford Bronco II service manual for detailed removal and installation procedures

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The 692-113 fuel tank sending unit undergoes quality checks to ensure durability and reliable performance in Ford Bronco II vehicles. Warranty coverage details can be obtained from the product documentation or Dorman’s official resources.
