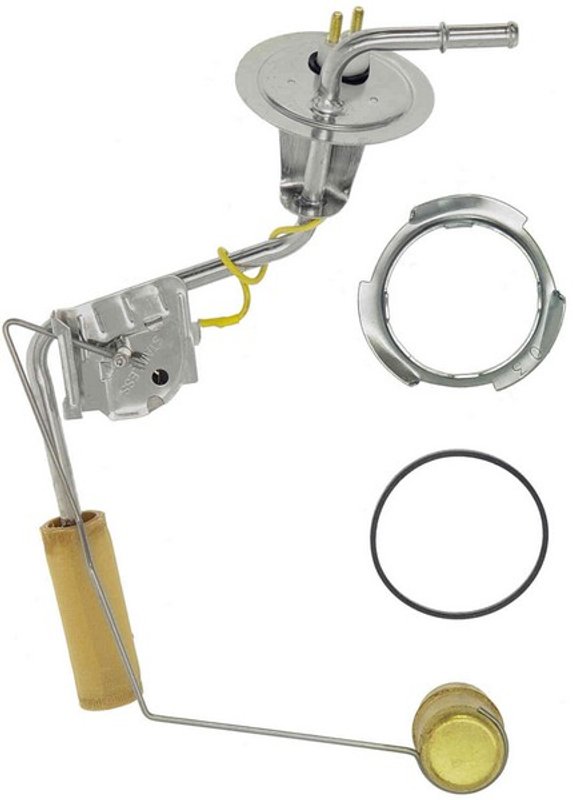

Dorman 692-118 Fuel Tank Sending Unit

Reliable Fuel Tank Sending Unit for Ford F-Series Trucks

The Dorman 692-118 fuel tank sending unit is designed to provide accurate fuel level readings for Ford F-100, F-150, F-250, and F-350 models. Engineered to meet OEM specifications, this sending unit ensures consistent performance and compatibility with your vehicle's fuel system.

• Compatible with Ford F-100, F-150, F-250, and F-350 trucks
• Terminal type: Bullet with 2 terminals for secure electrical connection
• Includes sending unit, lock ring, and gasket for proper installation
• Ohm resistance ranges from 80 (empty) to 10 (full) for precise fuel level measurement
• Round male plug/connector type for easy integration
• Does not include fuel pump or wiring harness

Product Details and Specifications

The Dorman 692-118 fuel tank sending unit features a bullet terminal type with two terminals, providing a reliable electrical connection to your vehicle's fuel gauge system. The included gasket and lock ring ensure a secure and leak-free installation. This sending unit operates within an ohm resistance range of 80 ohms when the tank is empty and 10 ohms when full, allowing for accurate fuel level readings. The round male plug connector type is designed for straightforward compatibility with the Ford F-Series fuel system. Note that this unit does not include a fuel pump or wiring harness, focusing solely on fuel level sensing functionality.

Compatible Vehicles and Applications

• Ford F-100
• Ford F-150
• Ford F-250
• Ford F-350

This sending unit is specifically engineered for use in these Ford truck models, ensuring proper fitment and reliable operation within the fuel delivery system.

Common Issues Addressed by This Fuel Tank Sending Unit

• Inaccurate or fluctuating fuel gauge readings
• Fuel gauge stuck on empty or full
• Fuel level sensor failure due to wear or corrosion
• Leaks caused by damaged or missing gaskets
• Electrical connection problems from faulty terminals

Installation Notes and Tips

Before installation, ensure the vehicle's fuel tank is empty or at a safe level to prevent spills. Use the included gasket and lock ring to secure the sending unit and prevent leaks. Verify the bullet terminals are clean and properly connected to the vehicle's wiring harness. Since the wiring harness and fuel pump are not included, inspect these components separately for compatibility and condition. Follow all safety precautions when working with fuel system components.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards, providing dependable performance for your Ford F-Series truck. The 692-118 fuel tank sending unit comes with a limited warranty against defects in material and workmanship, ensuring confidence in your replacement part.
