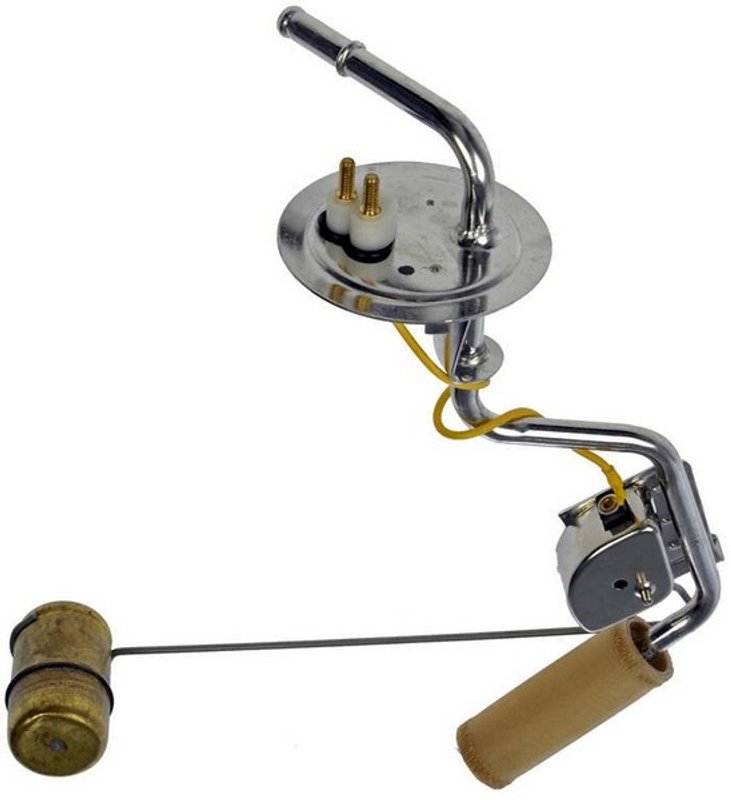

Dorman 692-119 Fuel Tank Sending Unit

Overview of Dorman Fuel Tank Sending Unit 692-119

The Dorman Fuel Tank Sending Unit 692-119 is designed for reliable fuel level measurement in select Ford trucks. This fuel tank sending unit is compatible with Ford F-100, F-150, F-250, and F-350 models, providing accurate readings to maintain optimal fuel management.

• Terminal Type: Bullet
• Terminal Quantity: 2
• Wiring Harness Included: No
• Fuel Pump Included: No
• Gasket or Seal Included: Yes
• Ohms Empty: 80
• Ohms Full: 10
• Plug/Connector Type: Flat male

Technical Details and Specifications

The Dorman 692-119 fuel tank sending unit features two bullet terminals and a flat male plug/connector type, ensuring compatibility with the original wiring setup of your Ford truck. It does not include a wiring harness or fuel pump, but it comes with a gasket or seal to secure the installation and prevent leaks. The resistance values range from 80 ohms when the tank is empty to 10 ohms when full, providing precise fuel level readings for your vehicle’s fuel gauge.

Compatible Ford Models and Applications

This fuel tank sending unit is specifically designed for use with Ford F-100, F-150, F-250, and F-350 trucks. It is ideal for owners seeking a direct replacement part that matches factory specifications for fuel level sensing without the need for additional modifications.

• Resolves inaccurate fuel gauge readings
• Fixes fuel level sensor malfunctions
• Prevents fuel leaks with included gasket
• Restores proper fuel monitoring in Ford F-series trucks

Installation Notes and Tips

Installation requires removal of the fuel tank sending unit access panel. Ensure the vehicle is parked on a level surface and the fuel tank is as empty as possible before beginning. The included gasket should be properly seated to avoid leaks. Since the wiring harness is not included, verify the existing wiring condition and connectors before installation. Use appropriate tools to connect the bullet terminals securely.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards. The 692-119 fuel tank sending unit undergoes quality checks to ensure durability and accurate performance. Please refer to Dorman’s official warranty policy for coverage details.
