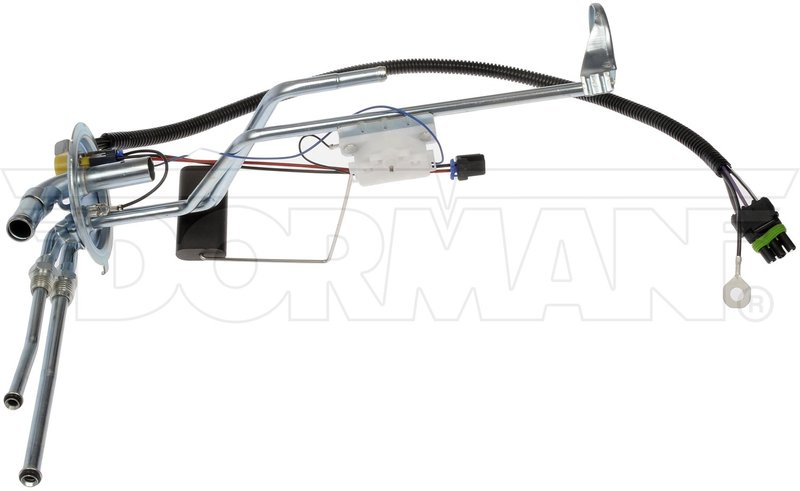

Dorman 692-130 Fuel Tank Sending Unit

Overview of Dorman Fuel Tank Sending Unit 692-130

The Dorman 692-130 fuel tank sending unit is designed for reliable fuel level measurement in select Chevrolet and GMC vehicles. This component is engineered to provide accurate readings for models such as the Chevrolet Blazer, Tahoe, and GMC Yukon, ensuring proper fuel gauge operation.

• Terminal Type: Bullet
• Terminal Quantity: 3
• Wiring Harness Included: Yes
• Fuel Pump Included: No
• Gasket or Seal Included: Yes
• Ohms Empty: 0
• Ohms Full: 95
• Plug/Connector Type: Flat male
• Package Contents: Sending unit, lock ring, gasket

Detailed Product Description

The Dorman 692-130 fuel tank sending unit features a bullet terminal type with three terminals, facilitating secure electrical connections. It includes a wiring harness and a gasket to ensure proper installation and sealing within the fuel tank. The unit does not include a fuel pump, focusing solely on fuel level measurement. The resistance values range from 0 ohms when empty to 95 ohms when full, providing precise fuel level data to the vehicle’s gauge. The flat male plug/connector type is compatible with the factory wiring harnesses found in Chevrolet Blazer, Tahoe, and GMC Yukon models, making it a direct replacement part.

Compatible Vehicles and Applications

This fuel tank sending unit is compatible with the following vehicles:

• Chevrolet Blazer
• Chevrolet Tahoe
• GMC Yukon

It is designed to replace the original sending unit in these models, restoring accurate fuel level readings and preventing gauge malfunctions.

Common Issues Addressed by This Fuel Tank Sending Unit

• Inaccurate or fluctuating fuel gauge readings
• Fuel gauge stuck on empty or full
• Electrical connection failures due to worn terminals
• Fuel leaks caused by damaged seals or gaskets
• Compatibility issues with factory wiring harnesses

Installation Notes and Tips

When installing the Dorman 692-130 fuel tank sending unit, ensure the gasket is properly seated to prevent fuel leaks. The included lock ring should be securely tightened to maintain a stable fit. Verify that the bullet terminals and flat male connectors are clean and free of corrosion before connecting. Since the fuel pump is not included, confirm the existing pump is functioning correctly or replace separately if needed. Always follow vehicle-specific service manual instructions for safe and proper installation.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications, providing reliable performance for your Chevrolet Blazer, Tahoe, or GMC Yukon. The 692-130 fuel tank sending unit undergoes quality control testing to ensure durability and accuracy. Warranty coverage details can be obtained from the product packaging or Dorman’s official documentation.
