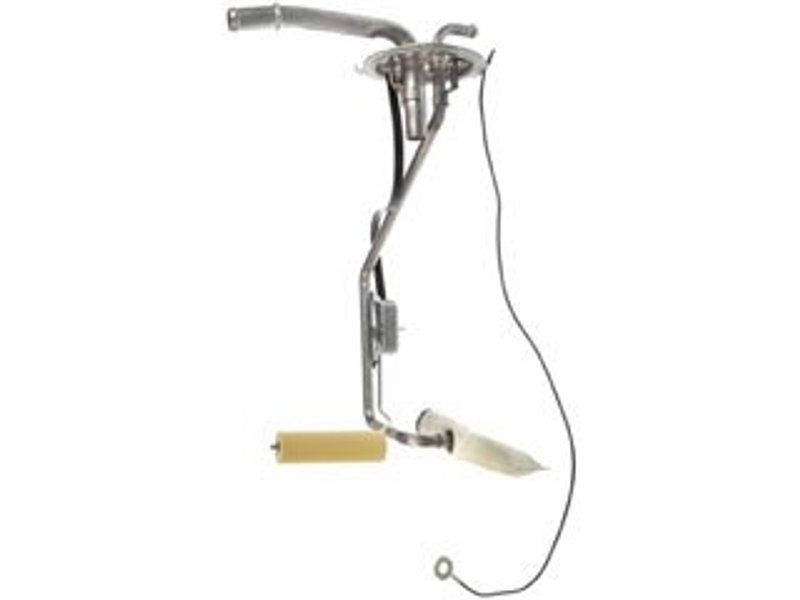

Dorman 692-146 Fuel Tank Sending Unit

Reliable Fuel Tank Sending Unit for Chevrolet G20 and G30

The Dorman 692-146 fuel tank sending unit is designed to provide accurate fuel level readings for Chevrolet G20 and G30 models. Engineered with precision, this sending unit ensures consistent performance and compatibility with your vehicle's fuel system.

Key Features of Dorman 692-146 Fuel Tank Sending Unit

• Terminal Type: Pin with a single terminal for straightforward electrical connection
• Includes gasket and lock ring for secure installation and sealing
• Ohms resistance range: 0 ohms when empty to 90 ohms when full for precise fuel level measurement
• Plug/Connector Type: Stud for reliable contact
• Does not include fuel pump or wiring harness, designed specifically as a sending unit replacement

Detailed Description

This Dorman fuel tank sending unit (part number 692-146) is engineered to meet the specifications required for Chevrolet G20 and G30 vans. The unit features a pin-type terminal with one terminal connection, ensuring compatibility with the vehicle’s existing wiring. The included gasket and lock ring help maintain a proper seal to prevent fuel leaks and maintain system integrity. The resistance values range from 0 ohms at empty to 90 ohms at full, providing accurate fuel level readings to the vehicle’s gauge. This sending unit is designed solely for fuel level measurement and does not include a fuel pump or wiring harness, making it an ideal replacement part for vehicles with a separate fuel pump system.

Common Applications and Issues Addressed

• Corrects inaccurate or fluctuating fuel gauge readings in Chevrolet G20 and G30 models
• Replaces faulty or damaged sending units causing fuel level misreporting
• Prevents fuel leaks with included gasket and lock ring for a secure fit
• Restores proper electrical connection with pin terminal and stud connector

Installation Notes and Tips

When installing the Dorman 692-146 fuel tank sending unit, ensure the gasket is properly seated to avoid leaks. Verify the pin terminal connection is secure and free of corrosion. Since this unit does not include a fuel pump or wiring harness, confirm compatibility with your existing fuel pump system before installation. Follow vehicle-specific service manual instructions for safe and accurate installation.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 692-146 fuel tank sending unit undergoes quality checks to ensure reliable operation in Chevrolet G20 and G30 vehicles. Please refer to Dorman’s warranty policy for coverage details.
