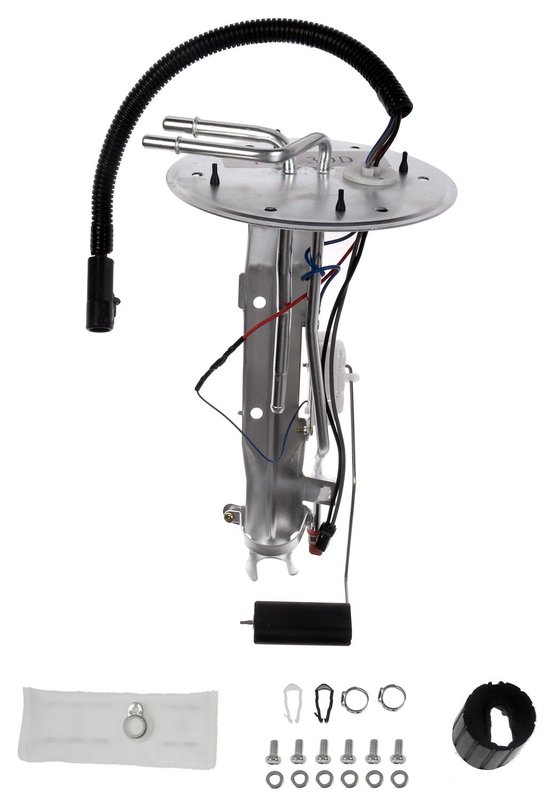

Dorman 692-224 Fuel Tank Sending Unit

Reliable Fuel Tank Sending Unit for Ford F-150 and F-250

The Dorman 692-224 fuel tank sending unit is designed to provide accurate fuel level readings for Ford trucks, including the F-150, F-150 Heritage, and F-250 models. This replacement part ensures proper fuel gauge operation by delivering consistent resistance values and includes essential installation components.

Key Features of the Dorman 692-224 Fuel Sender

• Terminal Type: Bullet terminals for secure electrical connections
• Terminal Quantity: 3 terminals to match factory wiring
• Wiring Harness Included: Yes, simplifies installation
• Fuel Pump Included: No, sold separately
• Gasket or Seal Included: Yes, ensures a proper seal to prevent leaks
• Resistance Range: 15 ohms (empty) to 160 ohms (full) for accurate fuel level readings
• Plug/Connector Type: Round female connector compatible with factory harness
• Package Contents: 1 fuel sender unit

Detailed Description of the Fuel Tank Sending Unit

The Dorman 692-224 fuel tank sending unit is engineered to meet the specifications of Ford F-150, F-150 Heritage, and F-250 trucks. It features bullet-type terminals with three connection points, matching the original equipment for seamless integration. The included wiring harness and gasket facilitate a straightforward installation process while maintaining a secure and leak-free fit. The unit operates within a resistance range of 15 ohms when the tank is empty and 160 ohms when full, ensuring precise fuel level measurement and reliable gauge performance.

Common Applications and Issues Addressed

• Corrects inaccurate or fluctuating fuel gauge readings
• Replaces faulty or damaged fuel tank sending units
• Prevents fuel leaks with included gasket or seal
• Restores proper electrical connections with bullet terminals and wiring harness
• Supports maintenance and repair of Ford F-150 and F-250 fuel systems

Installation Notes and Tips

• Ensure the vehicle is parked on a level surface and the ignition is off before installation
• Use the included gasket to prevent fuel leaks and maintain tank integrity
• Verify the bullet terminals and round female connector align with the factory wiring harness
• Handle the sending unit carefully to avoid damaging the float arm or electrical components
• Consult the vehicle’s service manual for specific removal and installation procedures

Quality Assurance and Warranty Information

Dorman manufactures the 692-224 fuel tank sending unit to meet or exceed OEM standards for fit, form, and function. The product includes a gasket and wiring harness to support reliable operation. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in materials and workmanship. Refer to Dorman’s official documentation for complete warranty terms.
