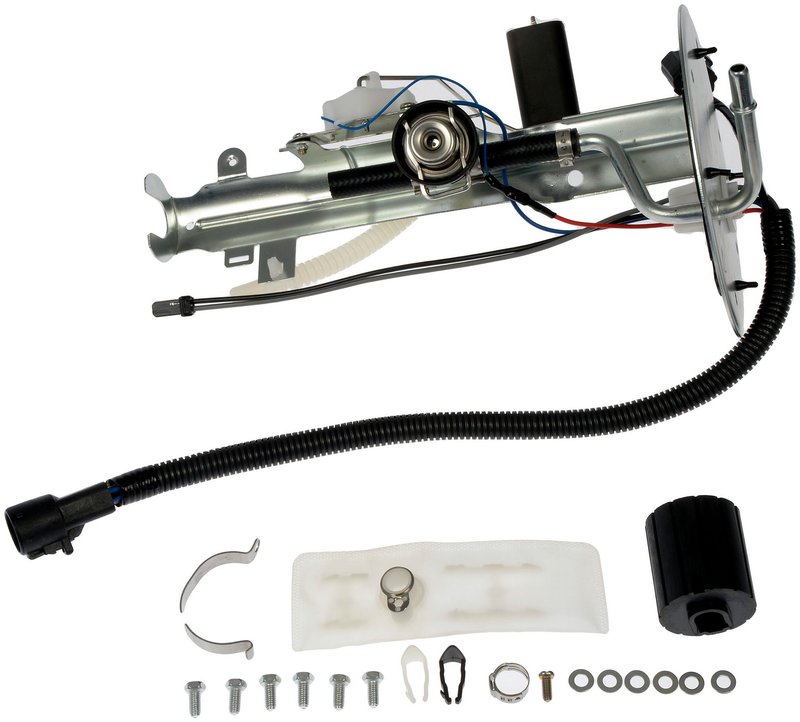

Dorman 692-226 Fuel Tank Sending Unit

Reliable Fuel Tank Sending Unit for Ford Explorer and Mercury Mountaineer

The Dorman 692-226 fuel tank sending unit is designed to provide accurate fuel level readings for select Ford and Mercury vehicles. Engineered with a spade terminal type and a square female plug connector, this fuel sender ensures proper electrical connections and reliable performance.

Key Features of the Dorman 692-226 Fuel Sender

• Terminal Type: Spade terminals for secure electrical contact
• Terminal Quantity: 3 terminals to support accurate signal transmission
• Wiring Harness Included: Yes, simplifies installation
• Fuel Pump Included: No, this unit is a fuel level sender only
• Gasket or Seal Included: Yes, ensures a proper seal to prevent leaks
• Resistance Range: 15 ohms when empty to 160 ohms when full for precise fuel level measurement
• Plug/Connector Type: Square female connector for compatibility with factory wiring
• Package Contents: Includes one fuel tank sending unit

Detailed Description

The Dorman 692-226 fuel tank sending unit is specifically designed for use in Ford Explorer, Explorer Sport Trac, and Mercury Mountaineer models. It features three spade terminals and a square female plug connector, ensuring compatibility with the vehicle’s existing wiring harness, which is included for convenience. The unit does not include a fuel pump, focusing solely on accurate fuel level sensing. The included gasket or seal helps maintain a secure fit and prevents fuel leaks. With resistance values ranging from 15 ohms empty to 160 ohms full, this sending unit provides reliable and consistent fuel level readings to the vehicle’s gauge.

Common Applications and Issues Addressed

• Replacement for faulty or inaccurate fuel tank sending units in Ford Explorer and Mercury Mountaineer
• Resolves erratic or stuck fuel gauge readings
• Prevents fuel gauge from showing empty when tank is not empty
• Eliminates fuel gauge fluctuations caused by poor electrical connections
• Helps maintain proper fuel level monitoring for Explorer Sport Trac models

Installation Notes and Tips

When installing the Dorman 692-226 fuel tank sending unit, ensure the wiring harness is properly connected to the square female plug for accurate signal transmission. Verify that the included gasket or seal is correctly positioned to prevent fuel leaks. This unit is designed for direct replacement in compatible Ford Explorer, Explorer Sport Trac, and Mercury Mountaineer vehicles. It is recommended to handle the sending unit carefully to avoid damage to the terminals and float arm during installation.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications, providing dependable performance and durability. The 692-226 fuel tank sending unit undergoes quality checks to ensure proper fit and function. Please refer to Dorman’s warranty policy for specific coverage details.
