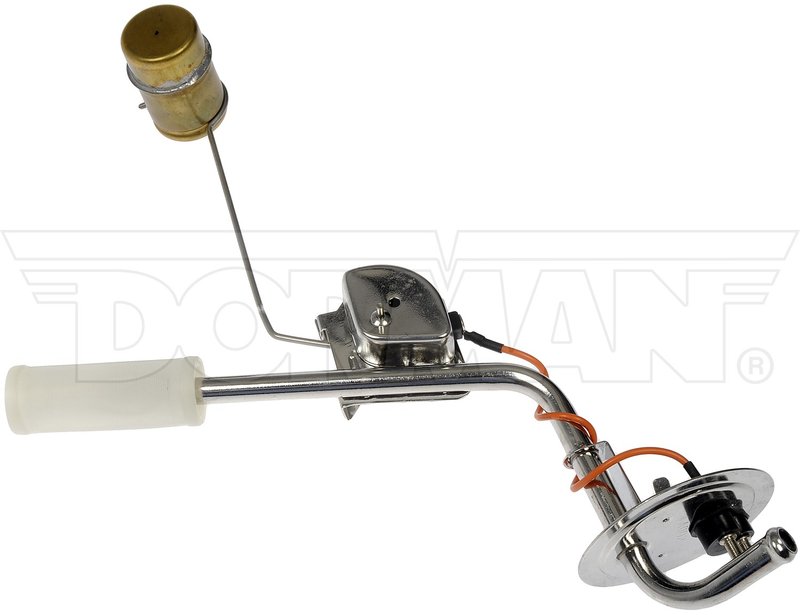

Dorman 692-232 Fuel Tank Sending Unit

Reliable Fuel Tank Sending Unit for Ford Mustang and Mercury Cougar

The Dorman 692-232 fuel tank sending unit is designed to provide accurate fuel level readings for select Ford Mustang and Mercury Cougar models. Engineered with precision, this fuel sender ensures consistent performance and compatibility with your vehicle's fuel system.

Key Features of the Dorman 692-232 Fuel Sender

• Terminal Type: Pin terminals for secure electrical connections
• Terminal Quantity: 2 terminals to match factory wiring
• Plug/Connector Type: Stud style for reliable fitment
• Ohms Empty: 75 ohms resistance indicating an empty tank
• Ohms Full: 10 ohms resistance indicating a full tank
• Package Contents: Includes 1 fuel tank sending unit
• Does not include fuel pump, wiring harness, or gasket/seal

Detailed Description of the Fuel Tank Sending Unit

This Dorman fuel tank sending unit (part number 692-232) is specifically designed for use in Ford Mustang and Mercury Cougar vehicles. It features two pin-type terminals and a stud-style connector to ensure proper electrical contact with the vehicle’s fuel gauge system. The resistance values range from 75 ohms when the tank is empty to 10 ohms when full, providing accurate fuel level readings. Note that this unit does not include a fuel pump, wiring harness, or gasket, so it is intended as a direct replacement for the sending unit only.

Common Applications and Issues Addressed

• Corrects inaccurate or fluctuating fuel gauge readings
• Replaces faulty or damaged fuel tank sending units
• Restores proper fuel level indication in Ford Mustang and Mercury Cougar models
• Resolves electrical connection issues related to pin terminal corrosion or wear
• Supports maintenance of the vehicle’s fuel delivery monitoring system

Installation Notes and Tips

• Ensure vehicle compatibility with Ford Mustang or Mercury Cougar models before installation
• Disconnect the battery prior to installation to prevent electrical shorts
• Handle the sending unit carefully to avoid damaging the float arm or terminals
• Verify terminal connections match the vehicle’s wiring harness for proper fit
• Inspect the fuel tank opening and clean any debris before installing the new sender

Quality Assurance and Warranty Information

Dorman manufactures this fuel tank sending unit to meet or exceed OEM specifications for fit, form, and function. While no gasket or fuel pump is included, the unit is tested for electrical accuracy and durability. Please consult Dorman’s warranty policy for specific coverage details related to part number 692-232.
