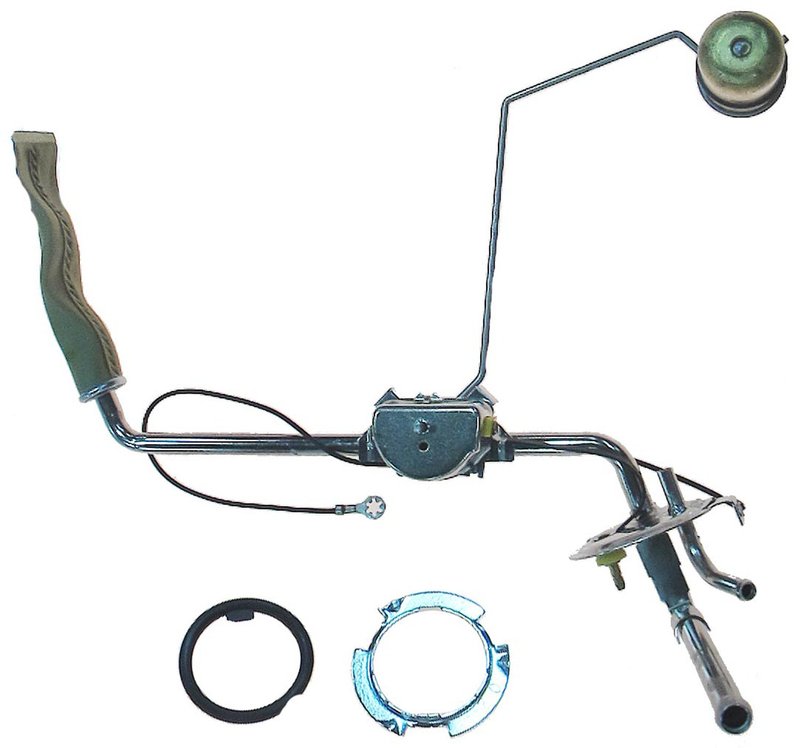

Dorman 692-236 Fuel Tank Sending Unit

Reliable Fuel Tank Sending Unit for Chevrolet Bel Air and Impala

The Dorman 692-236 fuel tank sending unit is designed to provide accurate fuel level readings for classic Chevrolet vehicles. Specifically compatible with Chevrolet Bel Air and Impala models, this sending unit ensures your fuel gauge reflects the correct fuel level for better vehicle operation.

Key Features of Dorman 692-236 Fuel Tank Sending Unit

• Terminal Type: Pin for secure electrical connection
• Single terminal quantity for straightforward installation
• Plug/Connector Type: Stud for reliable contact
• Ohms Empty: 0 ohms, Ohms Full: 35 ohms for precise fuel level measurement
• Package includes one fuel sender unit
• Does not include fuel pump or wiring harness
• Compatible with Chevrolet Bel Air and Impala models

Detailed Description of the Fuel Tank Sending Unit

The Dorman 692-236 fuel tank sending unit is engineered to replace the original fuel sender in Chevrolet Bel Air and Impala vehicles. It operates by measuring the resistance between 0 ohms (empty) and 35 ohms (full), providing accurate fuel level data to the vehicle’s gauge. Featuring a pin-type terminal and stud-style plug connector, this unit ensures a secure and stable electrical connection. Note that this part does not include a fuel pump or wiring harness, focusing solely on fuel level sensing functionality.

Common Applications and Issues Addressed

• Restores accurate fuel gauge readings in Chevrolet Bel Air and Impala
• Resolves erratic or stuck fuel gauge problems
• Replaces faulty or worn-out fuel tank sending units
• Improves fuel level monitoring for classic Chevrolet vehicles

Installation Notes and Tips

When installing the Dorman 692-236 fuel tank sending unit, ensure the vehicle’s battery is disconnected to prevent electrical shorts. Verify the pin terminal and stud connector align correctly with the vehicle’s wiring harness. Since this unit does not include a gasket or seal, inspect the existing seal for wear and replace if necessary to prevent fuel leaks. Proper installation will maintain accurate fuel level readings and vehicle safety.

Quality Assurance and Warranty Information

Dorman parts are manufactured to meet or exceed OEM specifications for fit and function. The 692-236 fuel tank sending unit undergoes quality checks to ensure durability and reliable performance in Chevrolet Bel Air and Impala models. Please refer to Dorman’s official warranty policy for coverage details.
