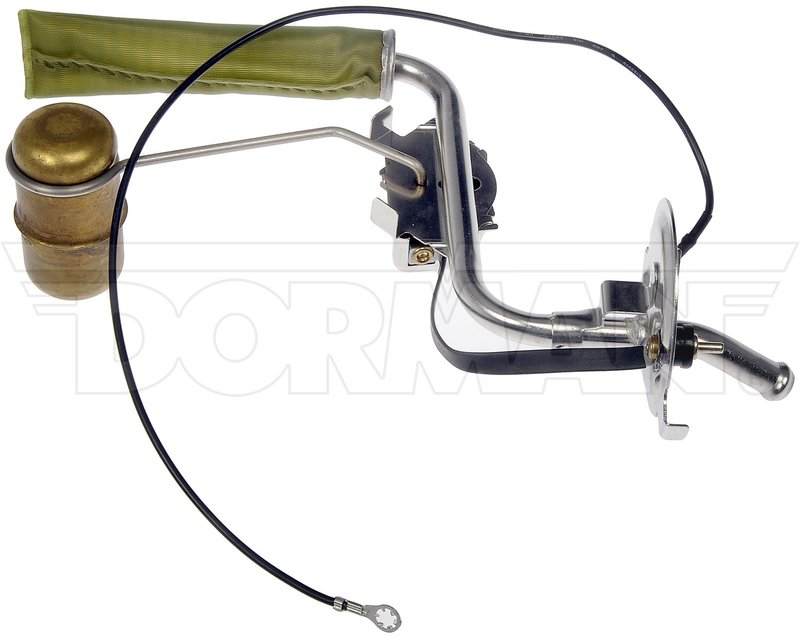

Dorman 692-240 Fuel Tank Sending Unit

Overview of the Dorman 692-240 Fuel Tank Sending Unit

The Dorman 692-240 Fuel Tank Sending Unit is designed to provide accurate fuel level readings for various vehicle applications. This fuel sender is engineered with a pin terminal type and includes a gasket or seal to ensure a secure installation.

• Terminal Type: Pin
• Terminal Quantity: 1
• Wiring Harness: Not included
• Fuel Pump: Not included
• Gasket or Seal: Included for proper sealing
• Resistance Range: 0 ohms (empty) to 90 ohms (full)
• Plug/Connector Type: Stud
• Package Contents: 1 fuel sender unit

Detailed Product Description

The Dorman 692-240 Fuel Tank Sending Unit is a replacement component designed to measure the fuel level inside the tank and relay this information to the vehicle’s fuel gauge. Featuring a single pin terminal and stud-type connector, this unit is compatible with vehicles requiring a 0 to 90 ohm resistance range for accurate fuel level readings. The included gasket or seal helps prevent leaks and ensures a tight fit during installation. Note that this part does not include a wiring harness or fuel pump, making it suitable for applications where only the sending unit needs replacement.

Common Applications and Issues Addressed

• Inaccurate or fluctuating fuel gauge readings
• Fuel gauge stuck on empty or full
• Fuel level sensor failure due to wear or corrosion
• Leaks caused by damaged or missing seals
• Replacement of faulty sending units in compatible vehicles

Installation Notes and Tips

Before installation, verify compatibility with your vehicle’s make and model to ensure proper fitment. Carefully remove the old sending unit and clean the mounting surface to prevent leaks. Use the included gasket or seal to maintain a secure and leak-free connection. Since the wiring harness and fuel pump are not included, inspect these components separately for any signs of damage or wear. Properly connect the single pin terminal and stud-type plug to ensure accurate fuel level readings.

Quality Assurance and Warranty Information

Dorman parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The 692-240 Fuel Tank Sending Unit undergoes quality control testing to ensure accurate resistance values and proper fitment. Warranty coverage details can be obtained from the product documentation or the manufacturer’s website.
