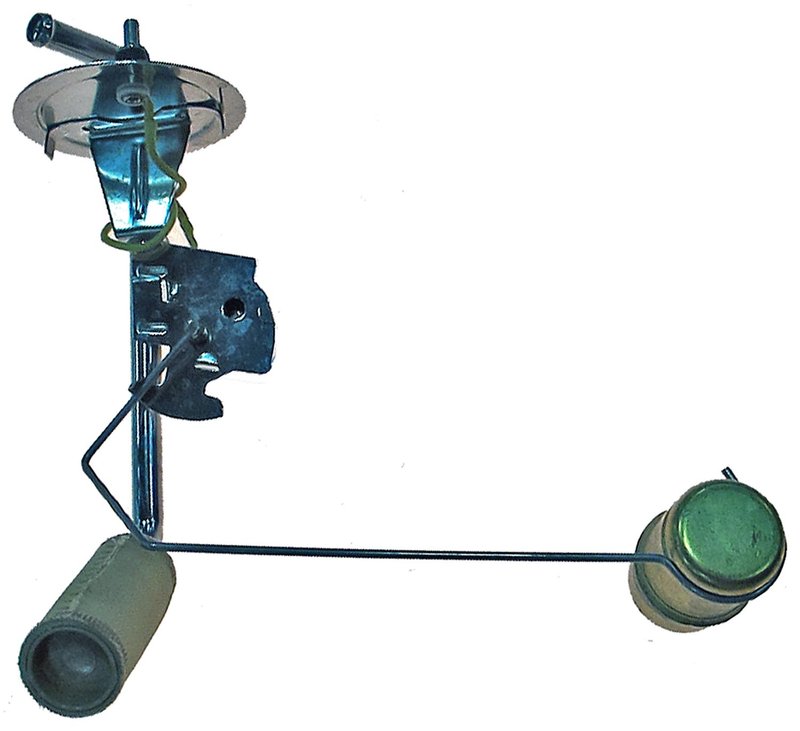

Dorman 692-245 Fuel Tank Sending Unit

Overview of Dorman Fuel Tank Sending Unit 692-245

The Dorman Fuel Tank Sending Unit 692-245 is designed specifically for Ford Thunderbird models, providing accurate fuel level readings. This fuel sender unit features a single pin terminal and a round male plug connector, ensuring reliable electrical connections without the need for additional wiring harnesses.

• Compatible with Ford Thunderbird fuel systems
• Single pin terminal type for straightforward installation
• Round male plug/connector type
• Ohms resistance: 80 when empty, 10 when full
• Does not include fuel pump or gasket/seal
• Package contains one fuel sender unit

Detailed Product Description

The Dorman 692-245 Fuel Tank Sending Unit is engineered to deliver precise fuel level measurements for Ford Thunderbird vehicles. It operates within a resistance range of 80 ohms when the tank is empty and 10 ohms when full, providing accurate feedback to the fuel gauge. The unit features a single pin terminal and a round male plug connector, which simplifies electrical connections and installation. This sending unit does not include a fuel pump or gasket, so it is intended for replacement of the sending component only.

Common Applications and Issues Addressed

• Corrects inaccurate or fluctuating fuel gauge readings
• Replaces faulty or damaged fuel tank sending units
• Restores proper fuel level signal transmission to the dashboard
• Eliminates electrical connection issues related to terminal type or connector
• Supports maintenance of fuel system components in Ford Thunderbird vehicles

Installation Notes and Tips

Installation of the Dorman 692-245 Fuel Tank Sending Unit requires removal of the fuel tank access panel. Ensure the vehicle is parked on a level surface and the ignition is off before beginning. Since this unit does not include a gasket or seal, reuse the existing seal or obtain a compatible replacement to prevent leaks. Verify the single pin terminal and round male connector align with the vehicle’s wiring harness for proper fitment. No wiring harness is included, so inspect existing wiring for damage prior to installation.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The 692-245 Fuel Tank Sending Unit undergoes quality control testing to ensure reliable performance in Ford Thunderbird applications. Warranty coverage details can be obtained from the product documentation or manufacturer, providing assurance of part durability and workmanship.
