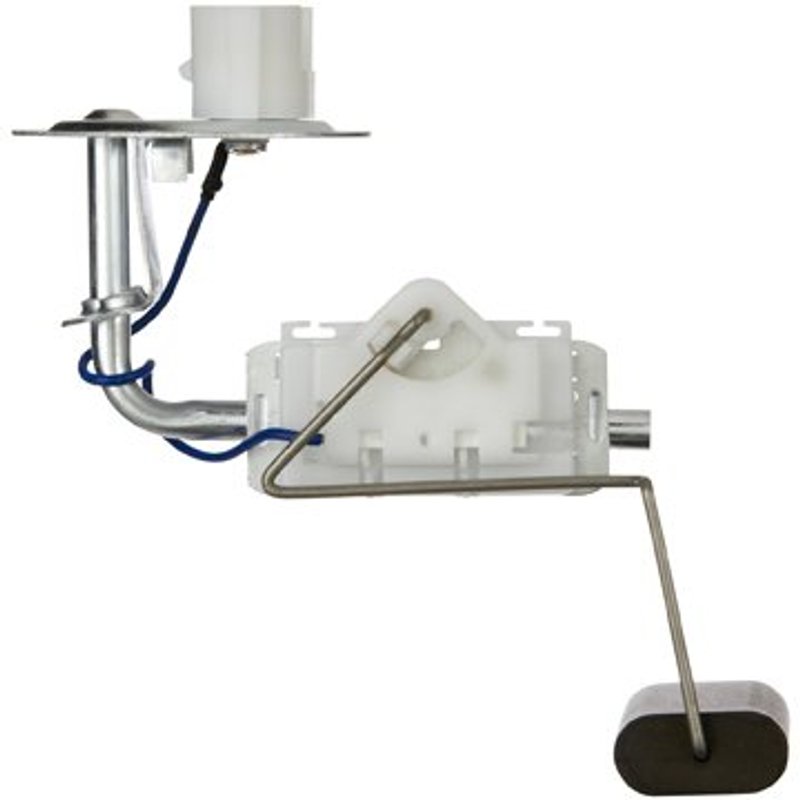

Dorman 692-246 Fuel Tank Sending Unit

Overview of Dorman Fuel Tank Sending Unit 692-246

The Dorman 692-246 fuel tank sending unit is designed specifically for Ford Mustang models, providing accurate fuel level readings. This component features a pin terminal type with two terminals and includes a gasket for proper sealing.

• Terminal Type: Pin
• Terminal Quantity: 2
• Wiring Harness: Not included
• Fuel Pump: Not included
• Gasket or Seal: Included
• Resistance Empty: 15 ohms
• Resistance Full: 160 ohms
• Plug/Connector Type: Male
• Package Contents: Fuel sending unit only

Detailed Product Description

The Dorman 692-246 fuel tank sending unit is engineered to deliver reliable fuel level measurement for Ford Mustang vehicles. It features a pin-type terminal with two connection points, ensuring compatibility with the vehicle's existing wiring system. The included gasket or seal helps maintain a secure and leak-free installation. This sending unit operates within a resistance range of 15 ohms when empty and 160 ohms when full, providing precise fuel level data to the vehicle’s gauge. Note that this part does not include a fuel pump or wiring harness, focusing solely on the sending unit function.

Common Applications and Problem Resolution

• Replaces faulty or inaccurate fuel level readings in Ford Mustang models
• Addresses fuel gauge fluctuations or failure to register fuel levels
• Prevents fuel leaks with included gasket or seal
• Restores proper electrical connection with pin-type terminals
• Compatible with fuel systems requiring a male plug connector

Installation Notes and Tips

Before installation, verify compatibility with your specific Ford Mustang model year. Ensure the fuel tank is empty or at a safe level to avoid spills. Use the included gasket to create a proper seal and prevent leaks. Connect the two pin terminals securely to the vehicle’s wiring harness. Since the wiring harness and fuel pump are not included, inspect existing components for wear or damage and replace if necessary. Follow all safety precautions when working with fuel system components.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 692-246 fuel tank sending unit undergoes rigorous quality control to ensure durability and reliable performance in Ford Mustang vehicles. Warranty coverage details can be obtained from the product documentation or manufacturer’s website.
