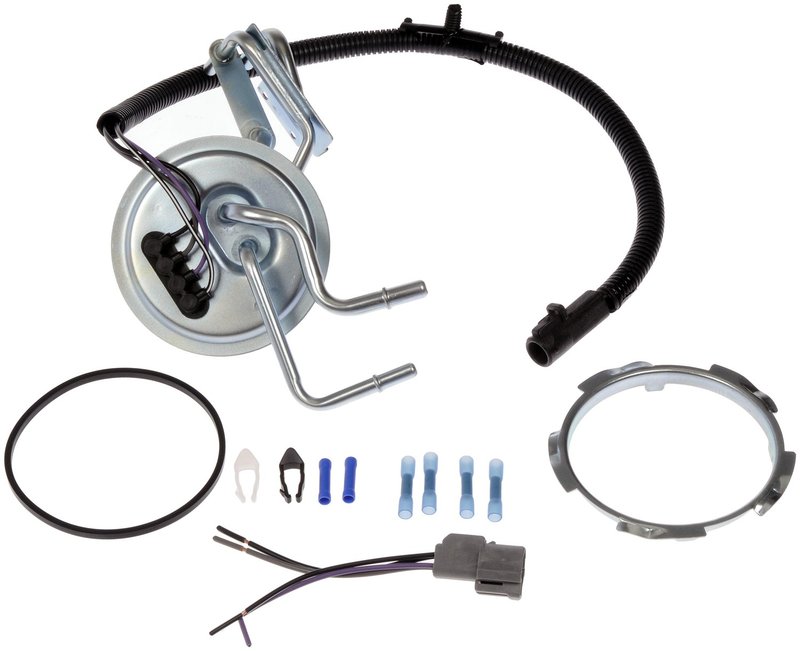

Dorman 692-248 Fuel Tank Sending Unit

Reliable Fuel Tank Sending Unit for Ford F-Series Trucks

The Dorman 692-248 Fuel Tank Sending Unit is designed specifically for Ford F-150, F-250, and F-350 models. This component ensures accurate fuel level readings and maintains proper fuel delivery system function, helping to keep your vehicle running smoothly.

• Compatible with Ford F-150, F-250, and F-350 trucks
• Length: 6 inches for precise fitment
• Includes a 26.5-inch wiring harness with black, gray, and purple wires
• Black circular connector with male pin terminals for secure connection
• Hose barb inlet and outlet attachment types for reliable fuel line connections
• Tank seal and lock ring included for proper installation and sealing
• Wire gauge measurement of 0.1 ensures efficient electrical flow
• Four-wire design with four terminals for accurate signal transmission

Detailed Product Description

The Dorman 692-248 Fuel Tank Sending Unit is engineered to meet the specifications of Ford F-150, F-250, and F-350 trucks. Measuring 6 inches in length with an outside diameter of 4.43 inches, this sending unit fits securely within the fuel tank. It features a wiring harness length of 26.5 inches, equipped with black, gray, and purple wires, and a black circular connector with four male pin terminals. The inlet and outlet connections use hose barb fittings with a diameter of 0.38 inches, ensuring compatibility with factory fuel lines. The unit includes a tank seal with a 4.43-inch outside diameter and a lock ring to maintain a tight, leak-free installation. This sending unit does not include a fuel pump or strainer but is designed to work seamlessly with your vehicle's existing fuel system components.

Common Applications and Issues Addressed

• Restores accurate fuel level readings on Ford F-150, F-250, and F-350 trucks
• Replaces faulty or damaged fuel tank sending units causing erratic gauge behavior
• Solves fuel delivery interruptions related to wiring or connector failures
• Prevents fuel leaks with included tank seal and lock ring
• Ensures proper electrical connection with four-wire harness and pin terminals

Installation Notes and Tips

• Verify compatibility with your specific Ford F-Series model before installation
• Handle wiring harness carefully to avoid damage to the 0.1 gauge wires
• Ensure hose barb fittings are securely connected to fuel lines to prevent leaks
• Use the included lock ring and tank seal to maintain a proper seal and prevent fuel vapor leaks
• Consult vehicle service manual for detailed removal and installation procedures

Quality Assurance and Warranty

Dorman manufactures the 692-248 Fuel Tank Sending Unit to meet or exceed OEM standards for fit, form, and function. The product includes a gasket and lock ring to ensure a secure and leak-free installation. While specific warranty details may vary, Dorman typically offers coverage against defects in materials and workmanship to provide confidence in the product's durability and reliability.
