Dorman 692-249 Fuel Tank Sending Unit

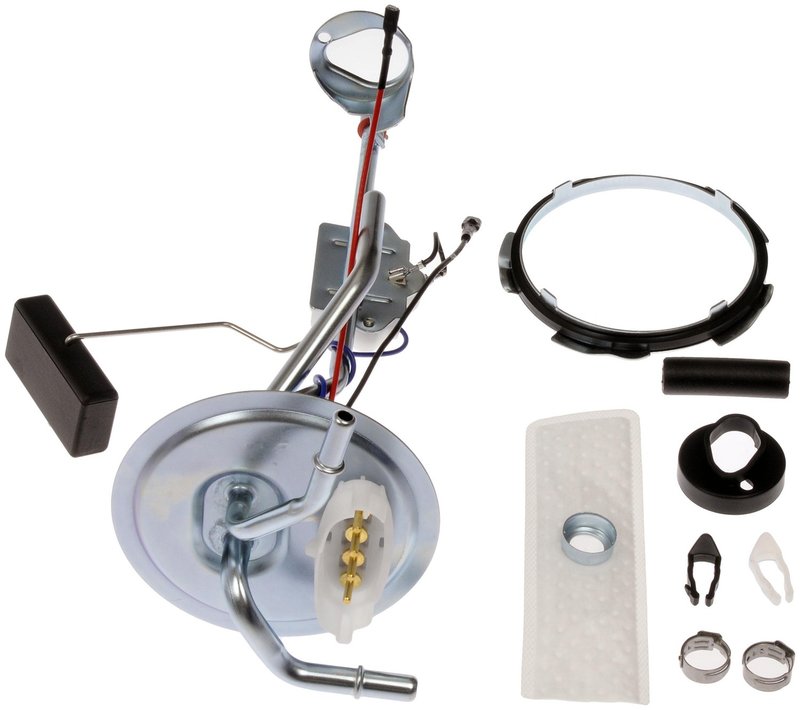

Overview of Dorman Fuel Tank Sending Unit 692-249

The Dorman Fuel Tank Sending Unit 692-249 is designed specifically for Ford Ranger models, providing accurate fuel level readings and reliable performance. This fuel tank sending unit features an adjustable float level and includes essential components such as a lock ring and gasket for secure installation.

• Compatible with Ford Ranger vehicles
• Adjustable float level for precise fuel measurement
• Includes lock ring and gasket for proper sealing
• Strainer included to protect fuel system
• Hose barb inlet and outlet attachment types
• Three lead wires in black, blue, and red for wiring
• Outside diameter and tank seal diameter of 4.43 inches
• Resistance values: 67 ohms empty, 8 ohms full

Detailed Product Features and Specifications

The Dorman 692-249 fuel tank sending unit measures 12.5 inches in length and is equipped with three lead wires in black, blue, and red, each with a wire gauge measurement of 0.1. The unit uses hose barb fittings for both inlet and outlet connections, each with a diameter of 0.375 inches, ensuring compatibility with standard fuel lines. The outside diameter and tank seal outside diameter are both 4.43 inches, providing a secure fit within the fuel tank. This sending unit includes two terminals and no connectors, with a round male plug type for electrical connection. The adjustable float level allows for fine-tuning fuel level readings, while the included strainer helps prevent debris from entering the fuel system. The package contains the sending unit, lock ring, and gasket, but does not include a wiring harness or fuel pump.

Compatible Vehicles and Applications

This fuel tank sending unit is compatible with Ford Ranger models, making it a suitable replacement part for maintaining accurate fuel level monitoring in these vehicles. The Dorman 692-249 is designed to address common fuel system issues and ensure reliable operation.

• Inaccurate or fluctuating fuel gauge readings
• Fuel level sensor failure or malfunction
• Fuel leaks due to worn or damaged seals
• Clogged fuel strainer affecting fuel flow
• Corroded or damaged wiring connections

Installation Notes and Tips

When installing the Dorman 692-249 fuel tank sending unit, ensure the lock ring and gasket are properly seated to prevent fuel leaks. The adjustable float level should be calibrated according to the vehicle’s specifications for accurate fuel readings. Use appropriate tools to connect the hose barb fittings securely and verify that the lead wires are connected to the correct terminals. Since the wiring harness is not included, verify compatibility with the existing vehicle wiring or source a suitable harness separately.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards, providing dependable performance and durability. The 692-249 fuel tank sending unit includes a gasket and lock ring to ensure a proper seal and long-lasting installation. While specific warranty details may vary, Dorman typically offers limited warranties covering defects in materials and workmanship. Refer to the product documentation or manufacturer for exact warranty terms.
