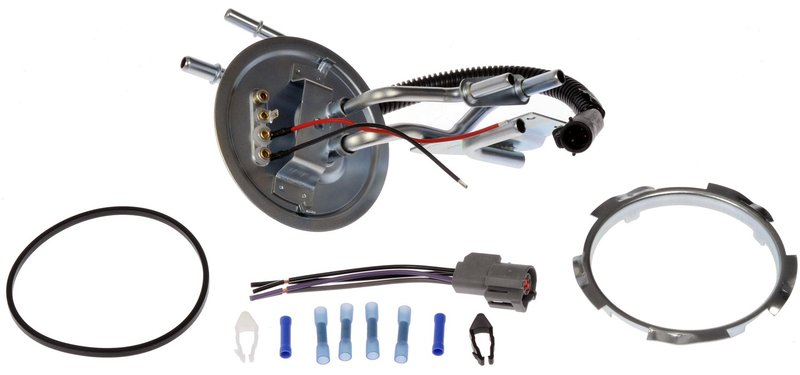

Dorman 692-251 Fuel Pump Hanger Assembly

Overview of Dorman Fuel Pump Hanger Assembly 692-251

The Dorman Fuel Pump Hanger Assembly 692-251 is designed specifically for Ford trucks, including the F-150, F-250, F-250 HD, and F-350 models. This metal fuel pump hanger assembly includes a fuel sending unit and is engineered to meet the fuel delivery needs of gas-powered vehicles.

• Material: Durable metal construction
• Includes fuel sending unit and rubber gasket seal
• Length: 6.25 inches; Housing width: 1.97 inches
• Wiring harness length: 11 inches with 4 wires and pin terminals
• Top mount diameter: 4.4 inches with included lock ring
• Connector type: Male circular connector with 4 terminals
• Designed for specific fitment on Ford F-150, F-250, F-250 HD, and F-350
• Includes wire harness and gasket; mounting hardware not included

Detailed Product Description

The Dorman 692-251 fuel pump hanger assembly is a precise replacement part tailored for select Ford trucks running on gasoline. Constructed from metal, it ensures durability and reliable performance under typical operating conditions. The assembly features a built-in fuel sending unit, which provides accurate fuel level readings to the vehicle’s gauge. Its 6.25-inch length and 1.97-inch housing width allow for a secure fit within the fuel tank. The wiring harness, measuring 11 inches, includes four 0.1 gauge wires with pin-type terminals and a male circular connector, facilitating straightforward electrical connections. The assembly also comes with a rubber gasket seal and a lock ring to ensure a tight, leak-free installation. The inlet and outlet configurations are designed for non-flanged and tube types respectively, with multiple inlet and outlet ports to match the original equipment specifications.

Compatible Vehicles and Applications

This fuel pump hanger assembly is compatible with the following Ford models:

• Ford F-150
• Ford F-250
• Ford F-250 HD
• Ford F-350

It is intended for use in gas-fueled vehicles requiring a specific fitment fuel pump hanger assembly that includes a fuel sending unit.

Common Issues Addressed by This Fuel Pump Hanger Assembly

• Fuel level gauge inaccuracies due to faulty sending units
• Fuel delivery interruptions caused by damaged or worn pump hangers
• Leaks from deteriorated or missing gasket seals
• Electrical connection failures from worn wiring harnesses or terminals
• Compatibility issues with original equipment fuel pump assemblies

Installation Notes and Tips

When installing the Dorman 692-251 fuel pump hanger assembly, ensure the following:

• Verify compatibility with your specific Ford model and fuel system
• Inspect the fuel tank opening and clean any debris before installation
• Use the included rubber gasket and lock ring to secure a proper seal
• Check wiring harness connections for secure pin terminal engagement
• Mounting hardware is not included; reuse original hardware or source appropriate replacements

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 692-251 fuel pump hanger assembly undergoes rigorous quality control to ensure reliable operation. This part includes a fuel sending unit and gasket to maintain system integrity. Warranty coverage details can be obtained from the product documentation or manufacturer directly.
