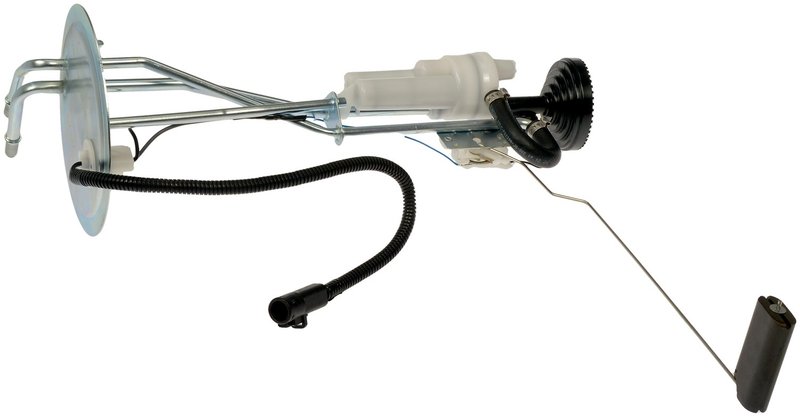

Dorman 692-255 Fuel Tank Sending Unit
| Brand | Dorman 692-255 |
|---|---|
| Length | 385 |
| Wire Colors | Red |
| Wire Colors | Yellow |
| Wiring Harness Length | 460 |
| Wire Gauge Measurement | 20 |
| Connector Color | Black |
| Inlet Attachment Type | Hose barb |
| Outlet Attachment Type | Hose barb |
| Outside Diameter | 160 |
| Terminal Type | Pin |
| Wire Quantity | 2 |
| Connector Quantity | 1 |
| Connector Shape | Round |
| Terminal Quantity | 2 |
| Tank Seal Outside Diameter | 160 |
| Lock Ring Included | No |
| Connector Gender | Male |
| Wiring Harness Included | Yes |
| Strainer Included | Yes |
| Inlet Diameter | 5 |
| Vent Quantity | 0 |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| Outlet Diameter | 5.7 |
| Adjustable Float Level | Yes |
| Inlet Fitting Thread Size | No thread |
| Fuel Pump Included | No |
| Resistance Ohms Empty | 15 |
| Resistance Ohms Full | 160 |
| Outlet Fitting Thread Size | No thread |
| Fits | Ford · 10 vehicles |
OE-style fit and function. Matches the original unit on specified applications.
Reliable performance. Made of quality materials for lasting durability.
Complete install support. Includes a wiring harness, strainer, and gasket.
Cross-references Spectra Premium FG239A and F81Z9275AJ for the same application. See all 2.
Dorman 692-255 Fuel Tank Sending Unit
Dorman 692-255 is a fuel tank sending unit built to match the fit and function of the original unit on specified applications. It is designed for reliable fuel level signal performance in 1999-2003 Ford F-250 Super Duty and 1999-2003 Ford F-350 Super Duty models.
- Direct replacement fuel tank sending unit for specified Ford Super Duty applications
- Adjustable float level for proper fuel level calibration
- Includes wiring harness, strainer, and gasket
- Male round connector with 2-pin terminal design
- Hose barb inlet and outlet connections
- Fuel level resistance: 15 ohms empty, 160 ohms full
- Part number 692-255 for catalog and cross-reference lookup
Detailed Product Overview
This Dorman fuel tank sending unit is engineered for the Ford F-250 Super Duty and Ford F-350 Super Duty fuel system layout used from 1999 through 2003. It uses a 2-wire harness with red and yellow wire colors, a black round connector, and hose barb inlet and outlet fittings for a direct-style replacement. The unit also includes a strainer and gasket, and the adjustable float level helps set the sender to the correct tank depth for accurate fuel gauge operation. Part number 692-255 is also referenced for OE-style replacement searches on these Super Duty trucks.
This part cross-references Spectra Premium FG239A for the same application.
What It Helps Address
- Inaccurate fuel gauge readings
- Fuel level signal dropouts
- Erratic empty or full readings
- Sender wear from age and tank exposure
- Replacement needs after corrosion or internal float issues
Installation Notes and Tips
Verify tank dimensions, connector style, and hose barb sizing before installation. Confirm the float is adjusted to match the tank depth on the vehicle, and inspect the gasket sealing surface for cleanliness before assembly. This sender uses a male connector with pin terminals and does not include a lock ring.
Quality Assurance
Dorman manufactures this sending unit to match original fit and function on listed applications, using quality materials for dependable service and durability. Part number 692-255 is built for direct replacement use on the specified Ford Super Duty fitments.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2003 | Ford | F-250 Super Duty | 7.3L | V8 | — |
| 2003 | Ford | F-350 Super Duty | 7.3L | V8 | — |
| 2002 | Ford | F-250 Super Duty | 7.3L | V8 | — |
| 2002 | Ford | F-350 Super Duty | 7.3L | V8 | — |
| 2001 | Ford | F-250 Super Duty | 7.3L | V8 | — |
| 2001 | Ford | F-350 Super Duty | 7.3L | V8 | — |
| 2000 | Ford | F-250 Super Duty | 7.3L | V8 | — |
| 2000 | Ford | F-350 Super Duty | 7.3L | V8 | — |
| 1999 | Ford | F-250 Super Duty | 7.3L | V8 | — |
| 1999 | Ford | F-350 Super Duty | 7.3L | V8 | — |
