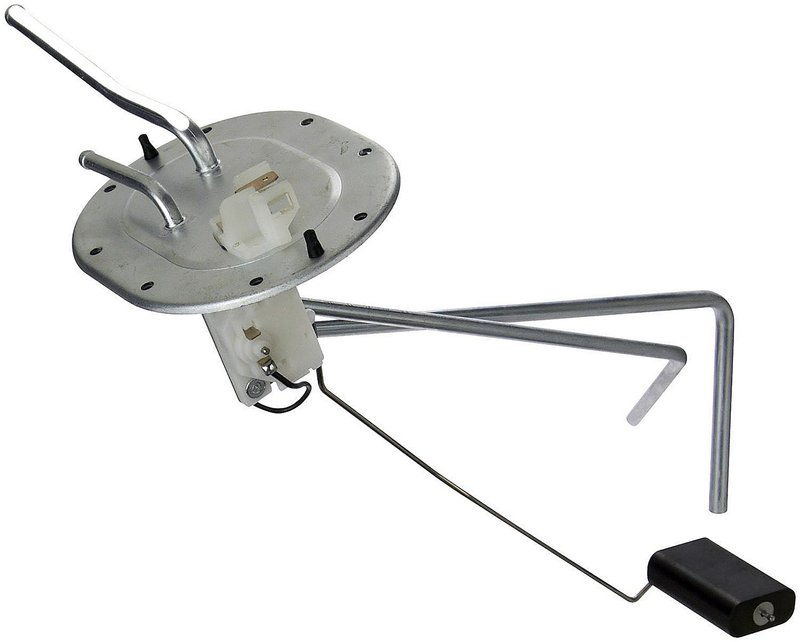

Dorman 692-259 Fuel Tank Sending Unit
| Brand | Dorman 692-259 |
|---|---|
| Length | 385 |
| Connector Color | Blue |
| Inlet Attachment Type | Hose barb |
| Outside Diameter | 137 |
| Terminal Type | Blade |
| Wire Quantity | 0 |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Terminal Quantity | 0 |
| Tank Seal Outside Diameter | 137 |
| Lock Ring Included | No |
| Connector Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Diameter | 4.7 |
| Inlet Diameter | 6.2 |
| Vent Quantity | 0 |
| Inlet Quantity | 2 |
| Outlet Quantity | 0 |
| Adjustable Float Level | Yes |
| Inlet Fitting Thread Size | No thread |
| Fuel Pump Included | No |
| Resistance Ohms Empty | 90 |
| Resistance Ohms Full | 0 |
| Gasket or Seal Included | Yes |
| Ohms Empty | 90 ohms |
| Ohms Full | 0 ohms |
| Package Contents | Sending unit; gasket |
| Plug/Connector Type | Flat male |
| Pump Included | No |
| Fits | Mazda · 16 vehicles |
OE-style replacement. Matches the fit and function of the original unit on specified applications.
Quality materials. Built for reliable performance and durability.
Adjustable float level. Helps fine-tune fuel level readings for accurate operation.
Cross-references FG82A and UB4160960B for the same application. See all 2.
Dorman 692-259 Fuel Tank Sending Unit
Dorman 692-259 is a fuel tank sending unit built to match the fit and function of the original unit on specified applications. It uses quality materials for dependable fuel level signal performance and long-term durability in Mazda B-series trucks.
Key Features
- Direct replacement fuel tank sending unit for specified Mazda applications
- Adjustable float level for proper fuel level calibration
- Blue rectangular male connector with flat blade terminal design
- Includes gasket or seal for tank installation
- Hose barb inlet attachment with no-thread fitting
- Resistance range: 90 ohms empty, 0 ohms full
- Part number 692-259 for easy identification
Detailed Description
This Dorman fuel tank sending unit is engineered for Mazda B2200, Mazda B2600, and Mazda B2000 models listed in the fitment data. It restores the fuel level signal sent from the tank to the gauge, helping maintain accurate dashboard readings in 1986-1993 Mazda B-series applications. The unit includes a gasket or seal and is built with a single rectangular connector, hose barb inlet attachment, and adjustable float level for proper setup during service. Dorman 692-259 is a practical OE-style replacement for drivers servicing a Mazda B2200 fuel tank sending unit, Mazda B2600 fuel sender, or Mazda B2000 fuel level sender.
This part cross-references FG82A and UB4160960B for the same application.
What It Helps Solve
- Inaccurate fuel gauge readings
- Fuel level sender failure from worn internal components
- Intermittent or erratic tank level indication
- Service needs on aging Mazda B-series fuel systems
- Replacement of a damaged or corroded sending unit assembly
Installation Notes and Tips
Fits 1987-1993 Mazda B2200, N/A. Fits 1987-1993 Mazda B2600, N/A. Fits 1986-1987 Mazda B2000, N/A. Verify connector style, inlet dimensions, and tank seal diameter before installation. Use the included gasket or seal during service and confirm the float moves freely after installation. Part number 692-259 should be matched to the vehicle application and fuel tank configuration before replacement.
Quality Assurance
Dorman designs this sending unit to match original fit and function on specified vehicles and manufactures it from quality materials for reliable performance and durability.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 1993 | Mazda | B2200 | 2.2L | L4 | — |
| 1993 | Mazda | B2600 | 2.6L | L4 | — |
| 1992 | Mazda | B2200 | 2.2L | L4 | — |
| 1992 | Mazda | B2600 | 2.6L | L4 | — |
| 1991 | Mazda | B2200 | 2.2L | L4 | — |
| 1991 | Mazda | B2600 | 2.6L | L4 | — |
| 1990 | Mazda | B2200 | 2.2L | L4 | — |
| 1990 | Mazda | B2600 | 2.6L | L4 | — |
| 1989 | Mazda | B2200 | 2.2L | L4 | — |
| 1989 | Mazda | B2600 | 2.6L | L4 | — |
| 1988 | Mazda | B2200 | 2.2L | L4 | — |
| 1988 | Mazda | B2600 | 2.6L | L4 | — |
| 1987 | Mazda | B2000 | 2.0L | L4 | — |
| 1987 | Mazda | B2200 | 2.2L | L4 | — |
| 1987 | Mazda | B2600 | 2.6L | L4 | — |
| 1986 | Mazda | B2000 | 2.0L | L4 | — |
